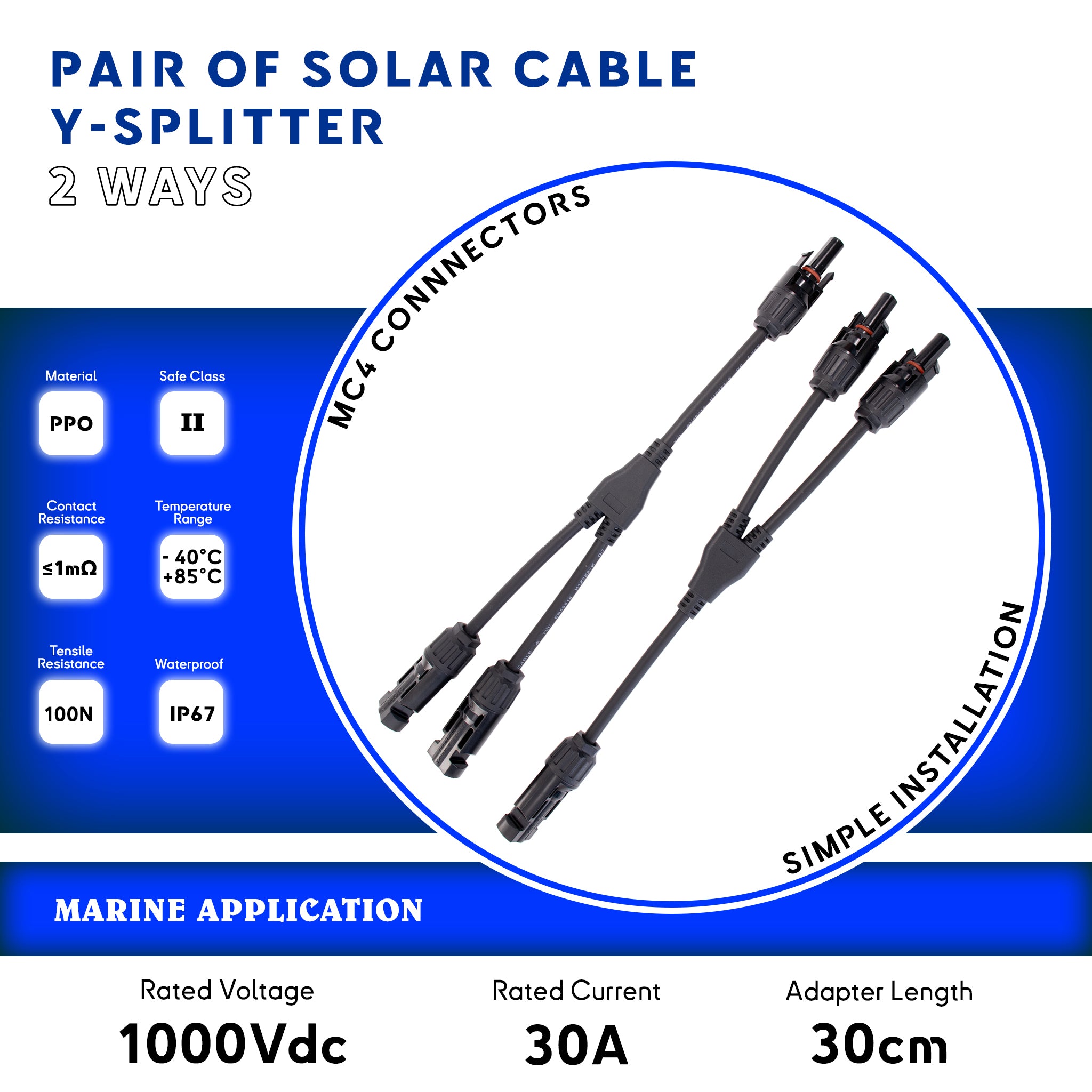

2-way Y-splitter for marine solar installations, MC4 connectors, 4mm² cable, rated 1000V 30A, ideal for connecting solar panels in parallel Baywatt.com

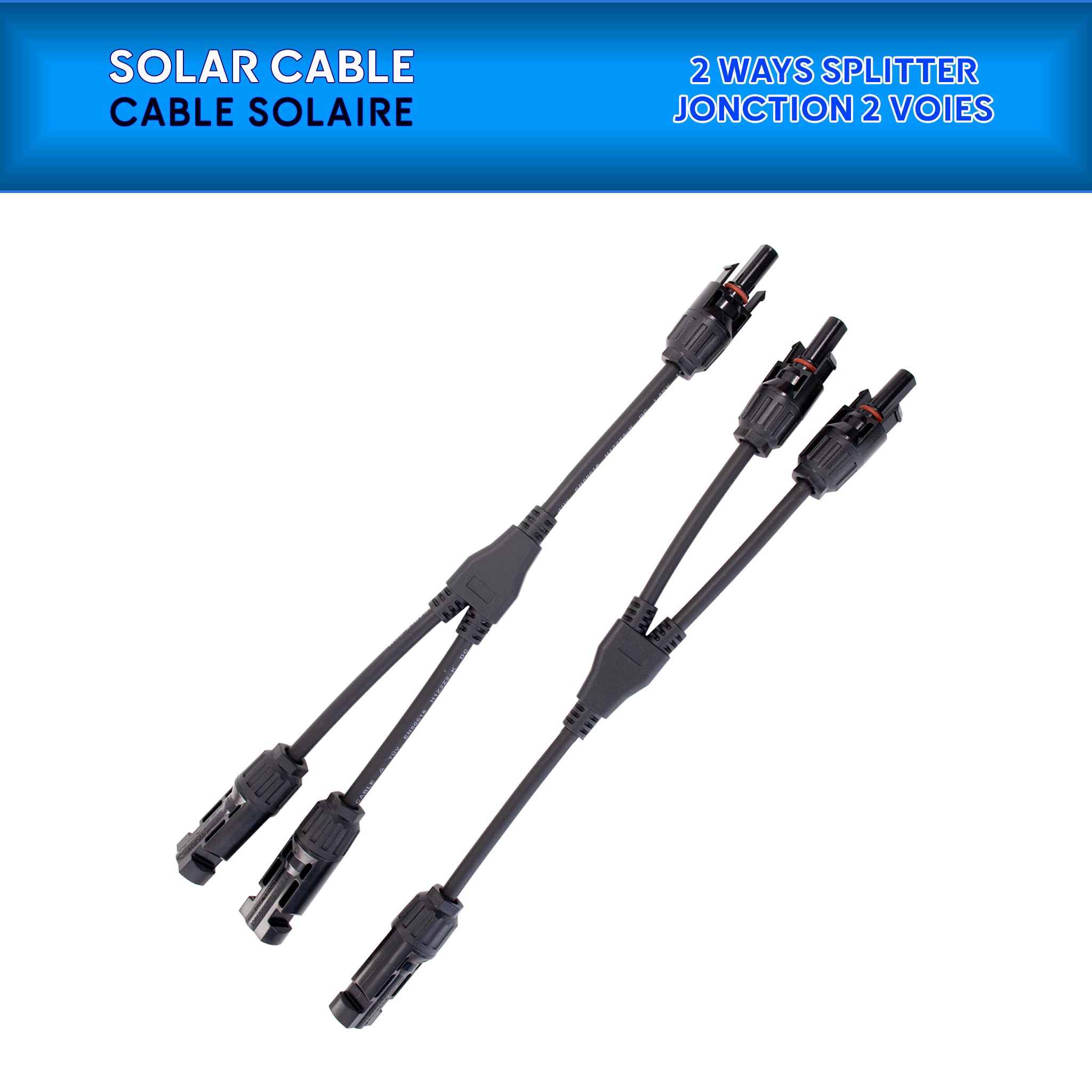

Séparateur de câbles solaires Y 2 voies pour installation marine, connecteur MC4 étanche et résistant aux UV, 1000V 30A Baywatt

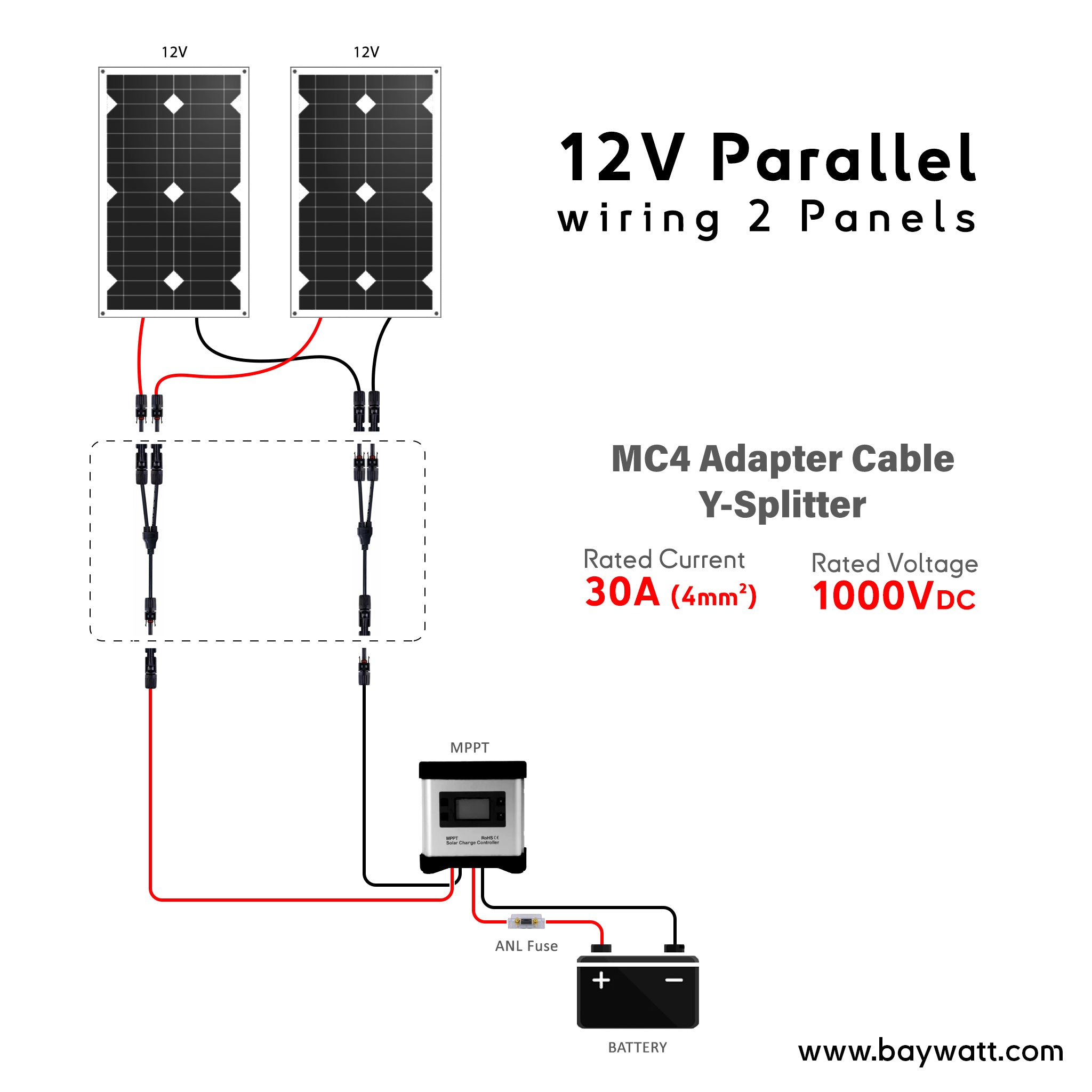

Raccordement de panneaux solaires en parallèle avec un câble de jonction MC4 2 voies, installation 12v facile pour voilier et bateau. Baywatt

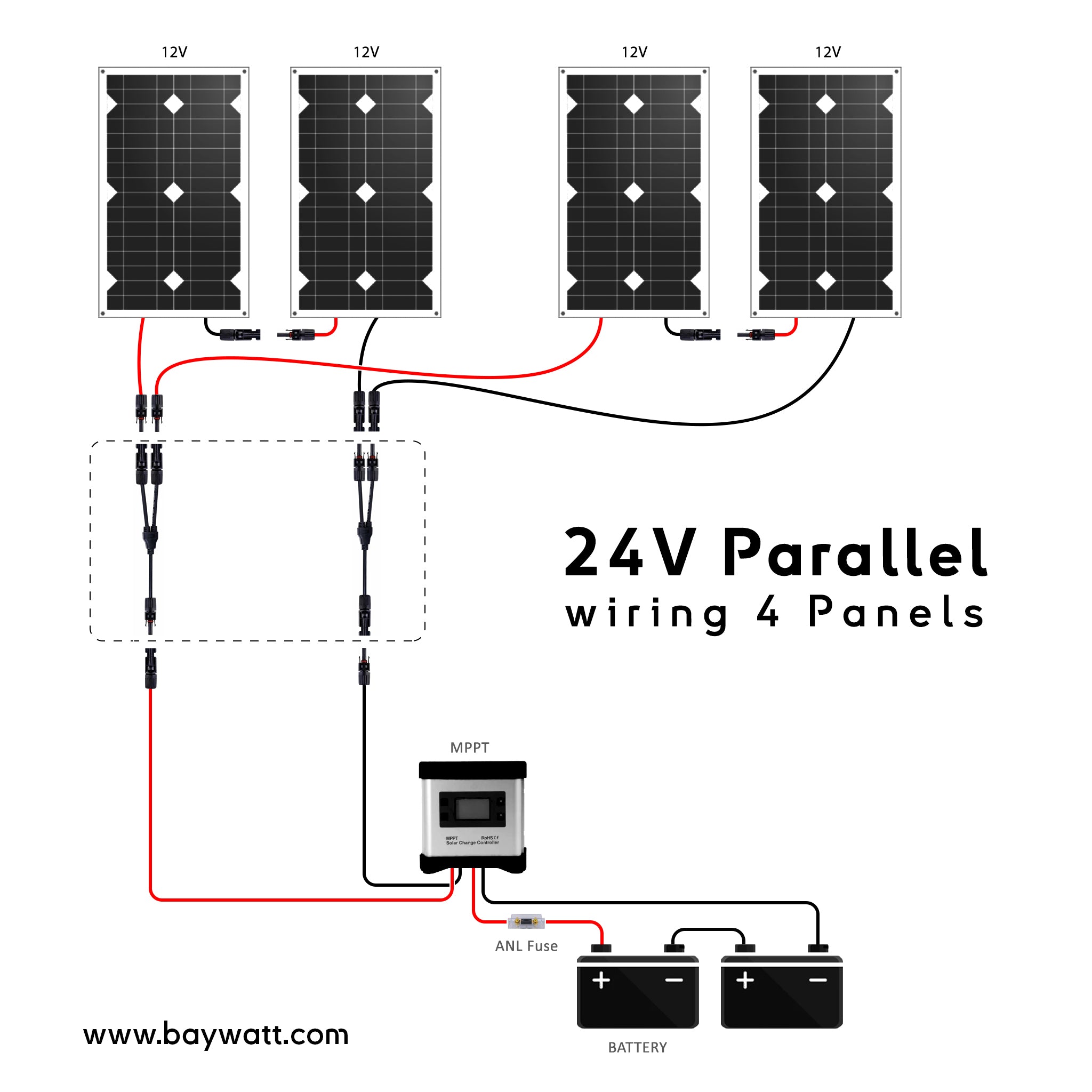

Solar wiring diagram 4 panels 24V wiring with 12v solar panels using splitter Baywatt MC4 connector for marine boat application. Y-Junction 30A 4mm² wire cable IP67

Marine solar accessories by Baywatt, featuring cable extension kits, Y-splitters, and waterproof connectors for efficient solar panel setups on boats

Solar Cable Splitter - MC4 Connectors Y Junction 2 ways

SKU: PVC2Y

8.00€; 8.00€
Unit price: per

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Description
Specification
How to use
FAQ
Download

Y Junction MC4 Solar Cable Splitter | 2-Ways

✨ Solar quick setup!

Using a Y-junction splitter lets you modify your solar setup anytime. It’s also a sturdy way to wire multiple panels.

🔌 Dual-way versatility

This 2-way kit includes two splitters: 1M-2F and 1F-2M, giving you flexible options for series or parallel configurations.

☀️ Efficient wiring

Featuring a 4mm² section and 30cm length, rated 1000V / 30A, the Y junction helps you connect multiple panels while maximizing energy yield.

🌧️ Weather-resistant

MC4 connectors with an IP67 rating ensure a secure, durable connection in harsh outdoor conditions.

🛡️ Durable construction

Made with high-quality PPO cable insulation for long service life—resistant to oxidation, UV, and high temperatures.

💡 Recommended accessories

Specification

Splitter Type	Cable Length	Cable Specifications	Connectors Included	Max Voltage/Current
2-Way Y Splitter	30 cm	H1Z2Z2-K, 4 mm², Ø5.8 mm, Flexible	1M-2F, 1F-2M MC4	1000 V DC / 30 A
