KIT - 2pcs Solar Cable Extension (Pre-Wired)
SKU:
PV421A
- 8.50€
- 8.50€
- Unit price
- per

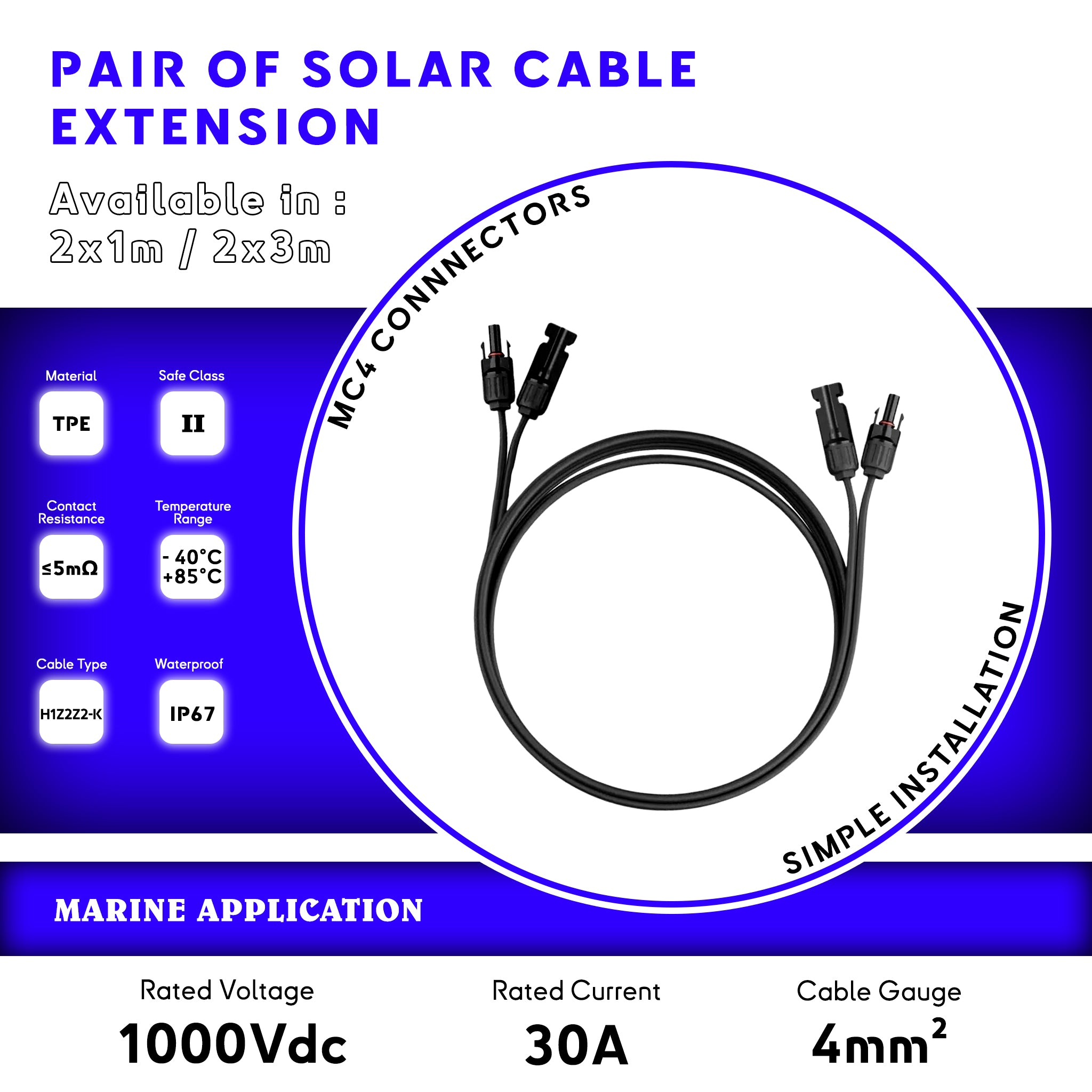

Solar Cable Extension Kit with MC4 Connectors
Pre-assembled solar extension cables with standard MC4 connectors, designed for fast, clean, and reliable installation. Ideal for extending solar panel connections or linking panels to an MPPT charge controller.
This extension kit is a practical spare to keep on board or in your installation kit. It comes ready to use, with male and female MC4 connectors already fitted, so you can extend your solar wiring quickly without extra assembly.
Available in 2 x 1 meter and 2 x 3 meters, it gives you the flexibility to adapt your layout, improve cable routing, or create more distance between your solar panels and charge controller.
Made for Fast Solar Extensions
When you need extra reach between a panel and a controller, or when your installation layout changes, a ready-made extension kit saves time and avoids unnecessary complexity. This kit gives you a simple plug-and-play solution with standard MC4 compatibility.
For boats, vans, off-grid systems, and mobile solar setups, this is the kind of spare that is always useful to have on hand.
Key Features
Fully Assembled and Ready to Use
No extra preparation needed. Connect and extend your solar wiring in seconds.
No extra preparation needed. Connect and extend your solar wiring in seconds.
Standard MC4 Connectors
Compatible with most common solar installations using MC4-type connections.
Compatible with most common solar installations using MC4-type connections.
High-Quality Tinned Copper
Supports strong conductivity and better durability in marine and outdoor environments.
Supports strong conductivity and better durability in marine and outdoor environments.
Flexible 4mm² Cable
Easy to route through tight spaces while maintaining the capacity needed for solar applications.
Easy to route through tight spaces while maintaining the capacity needed for solar applications.
UV-Proof and Waterproof
Designed for outdoor exposure with IP67 protection and dependable long-term performance.
Designed for outdoor exposure with IP67 protection and dependable long-term performance.
Up to 30A / 1000V DC
Suitable for both panel extensions and MPPT controller wiring within compatible system limits.
Suitable for both panel extensions and MPPT controller wiring within compatible system limits.
Best Uses
Solar panel extension
Add extra reach between your panel and the rest of your installation without modifying your original wiring.
MPPT charge controller wiring
Create a clean and reliable connection between your solar panels and charge controller.
System expansion
Useful when upgrading or reorganizing a solar setup on a boat, van, or off-grid installation.
Pairing with MC4 Y-splitters
Works well with 2-way or 3-way Y junctions when adding extra panels to your solar array.
Recommended Accessories
- Choose the right cable length for your installation layout.
- Confirm compatibility with your solar system voltage and current.
- Use with standard MC4 solar components for the best fit.
- For system expansion, combine with Y-junction splitters where needed.
Explore more compatible products in the Solar Accessories collection.

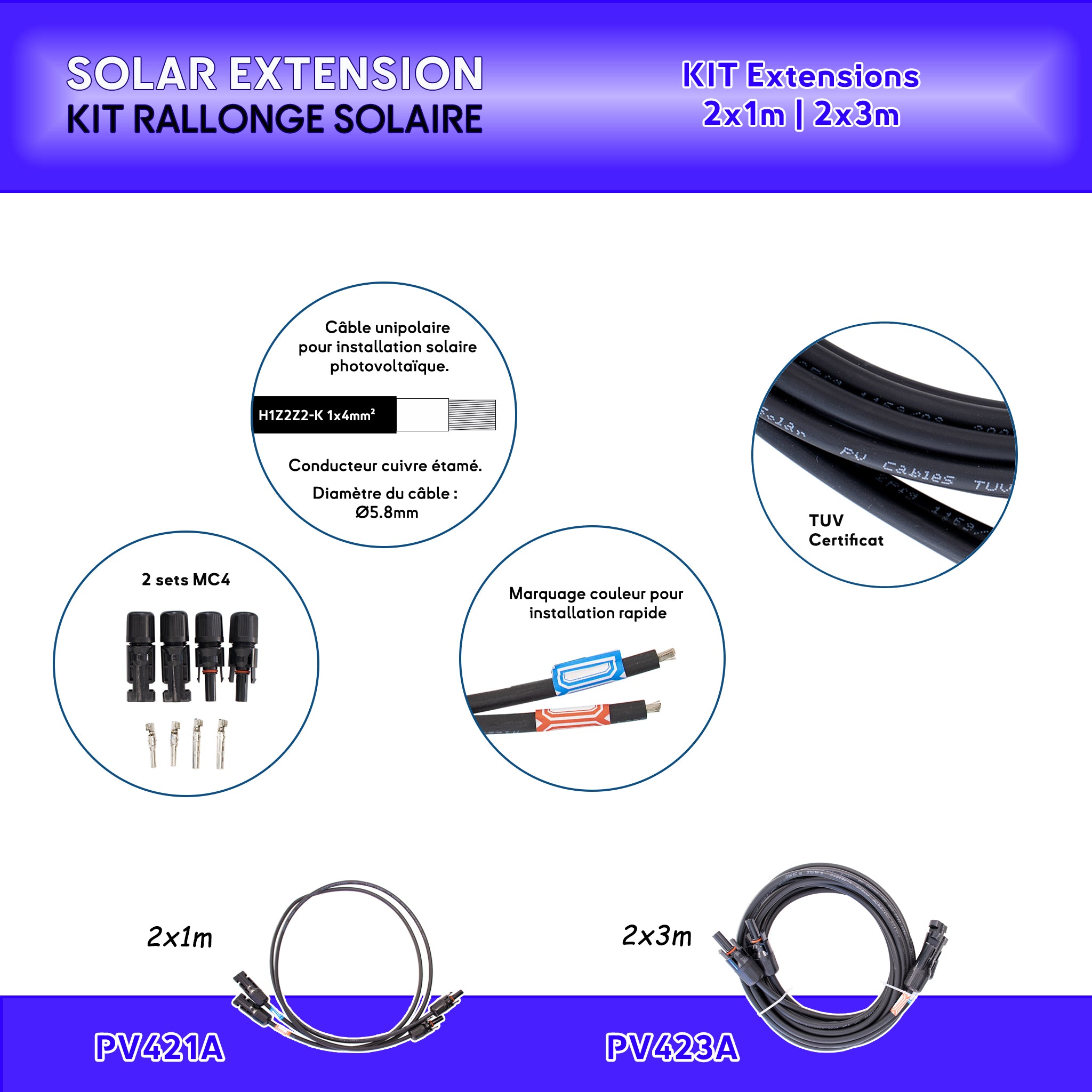

Specifications
| Kit Reference | Cable Length | Cable Specifications | Connectors Included | Max Voltage / Current |
|---|---|---|---|---|

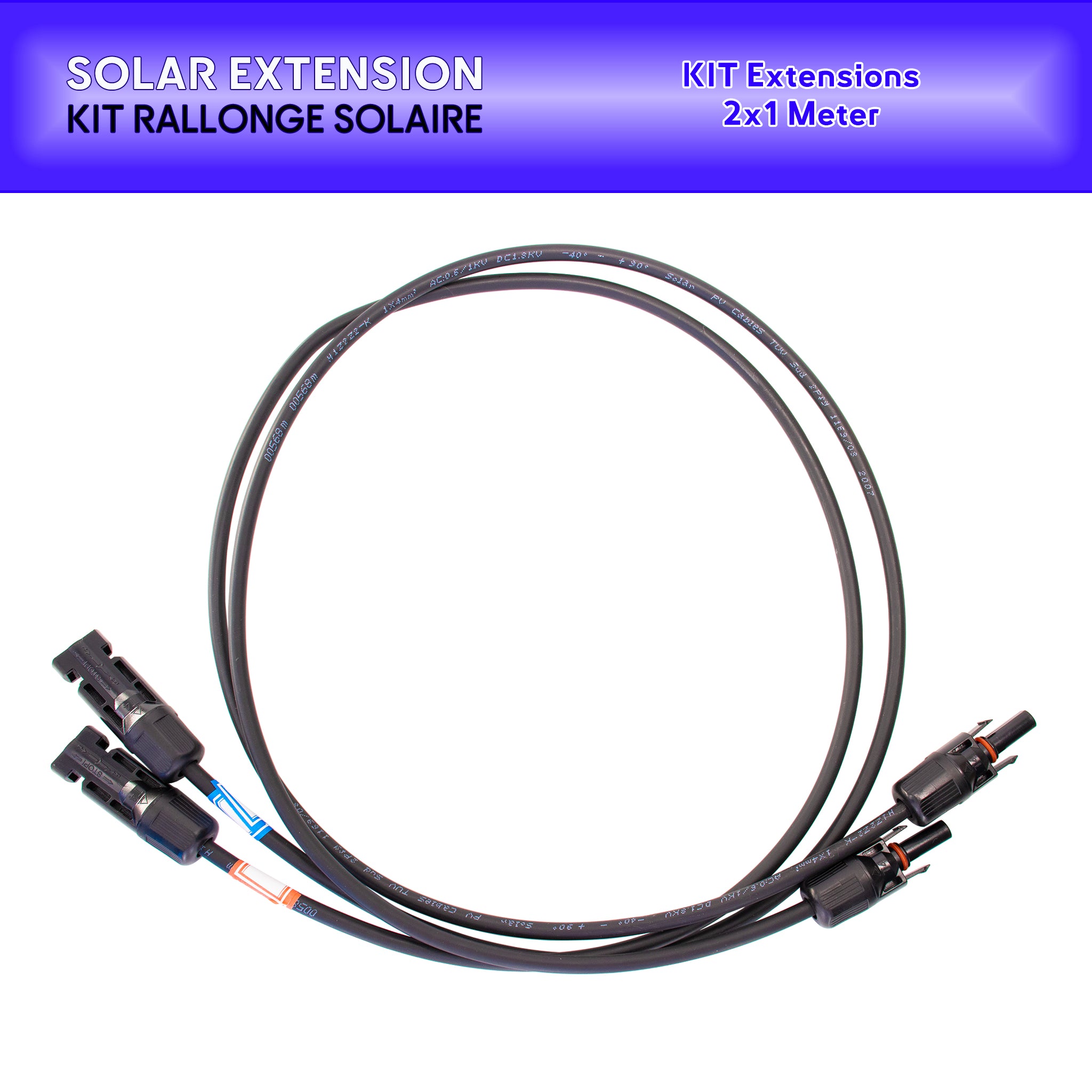

| PV421A | 2 x 1 meter | H1Z2Z2-K, 4mm², 5.8mm diameter, flexible | 2 MC4 (Male / Female) | 1000V DC / 30A Max |

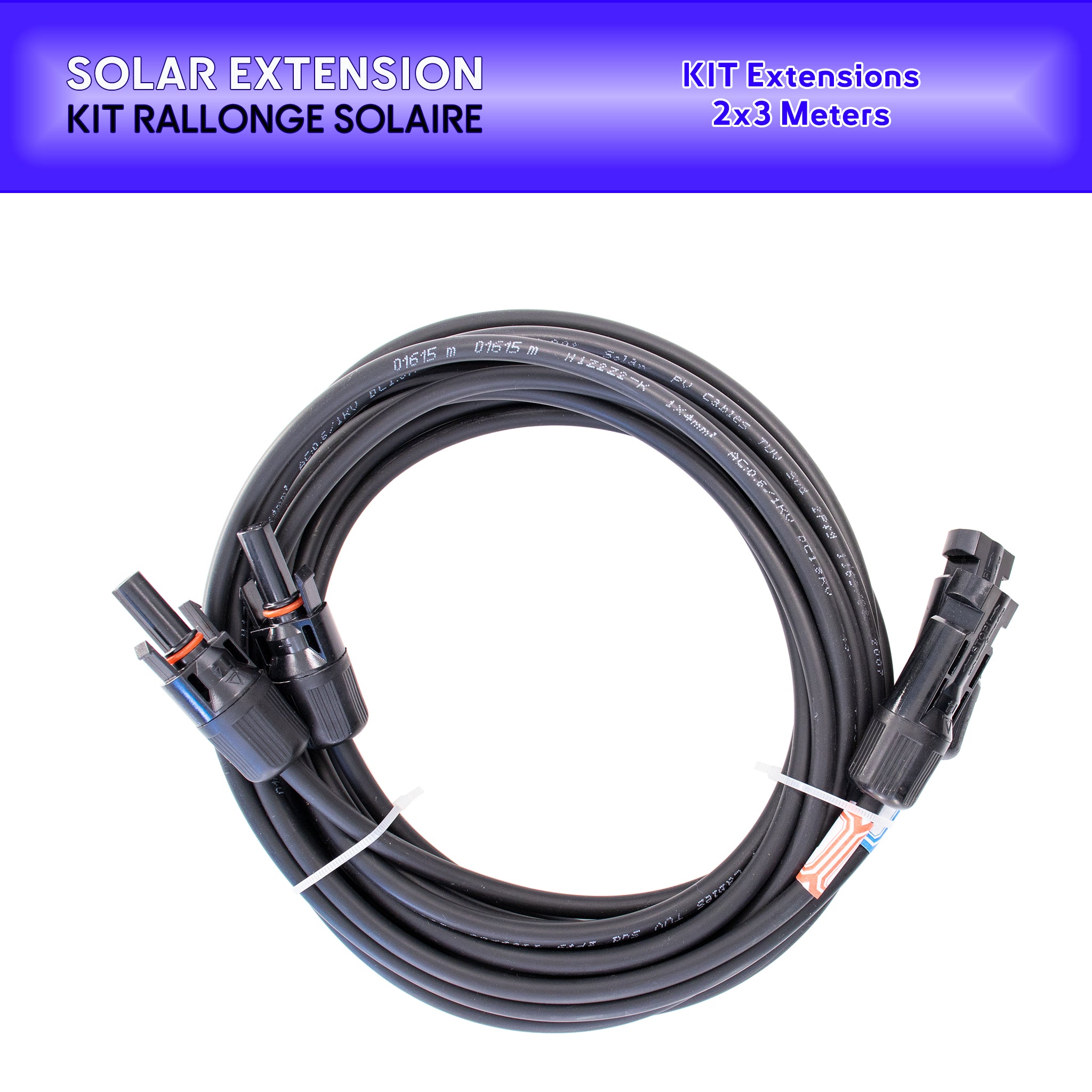

| PV423A | 2 x 3 meters | H1Z2Z2-K, 4mm², 5.8mm diameter, flexible | 2 MC4 (Male / Female) | 1000V DC / 30A Max |
Both kits are pre-assembled and designed for standard MC4 solar installations.
How to use :
Link to the blog
Discover tips, tricks, and detailed instructions on using our product in our dedicated blog post. Learn about setup, operation, and optimization to get the most out of your purchase.
Link to the blog
