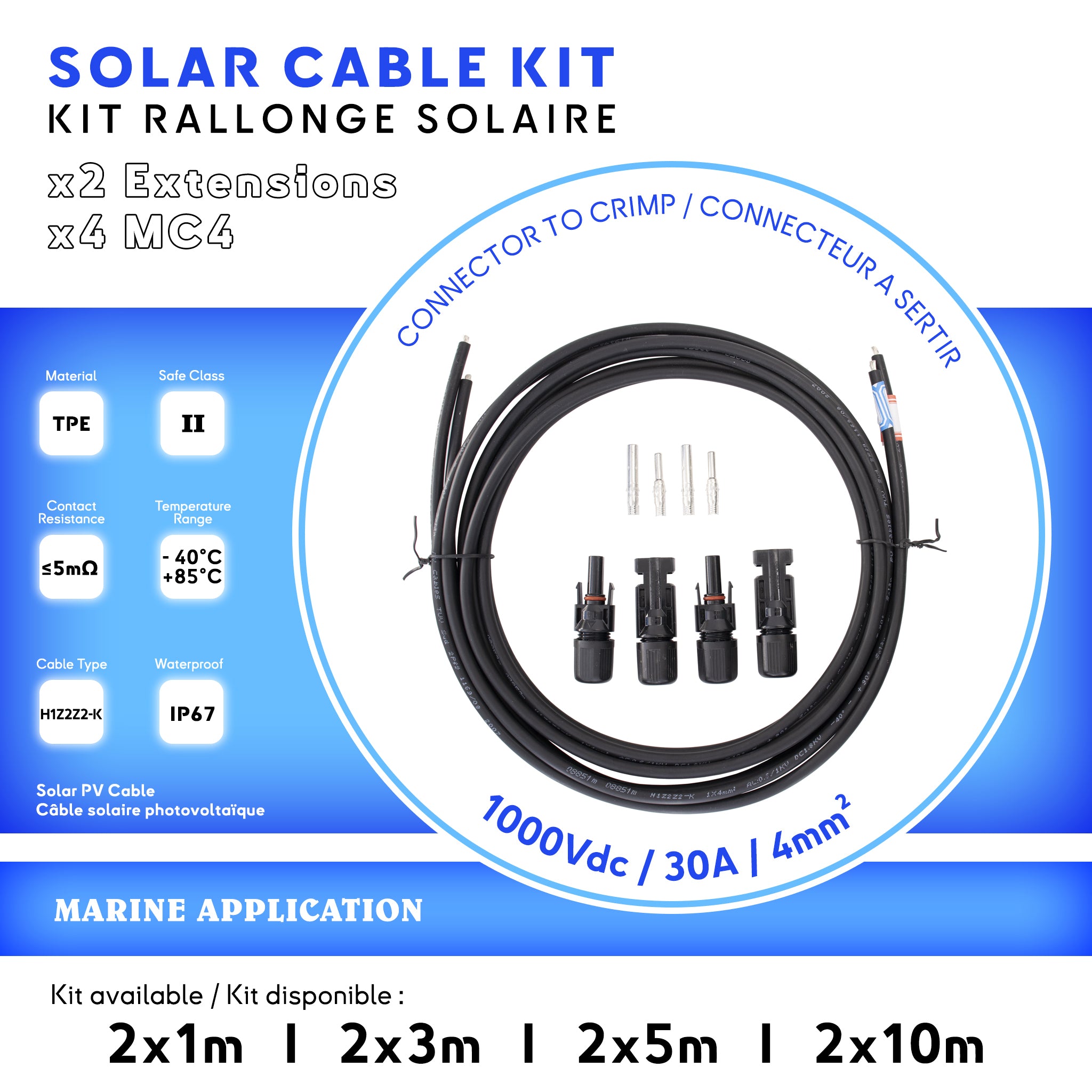

Kit de rallonges solaires incluant 2 cables avec connecteurs MC4 pour panneau photovoltaique pour bateau et yacht. Baywatt

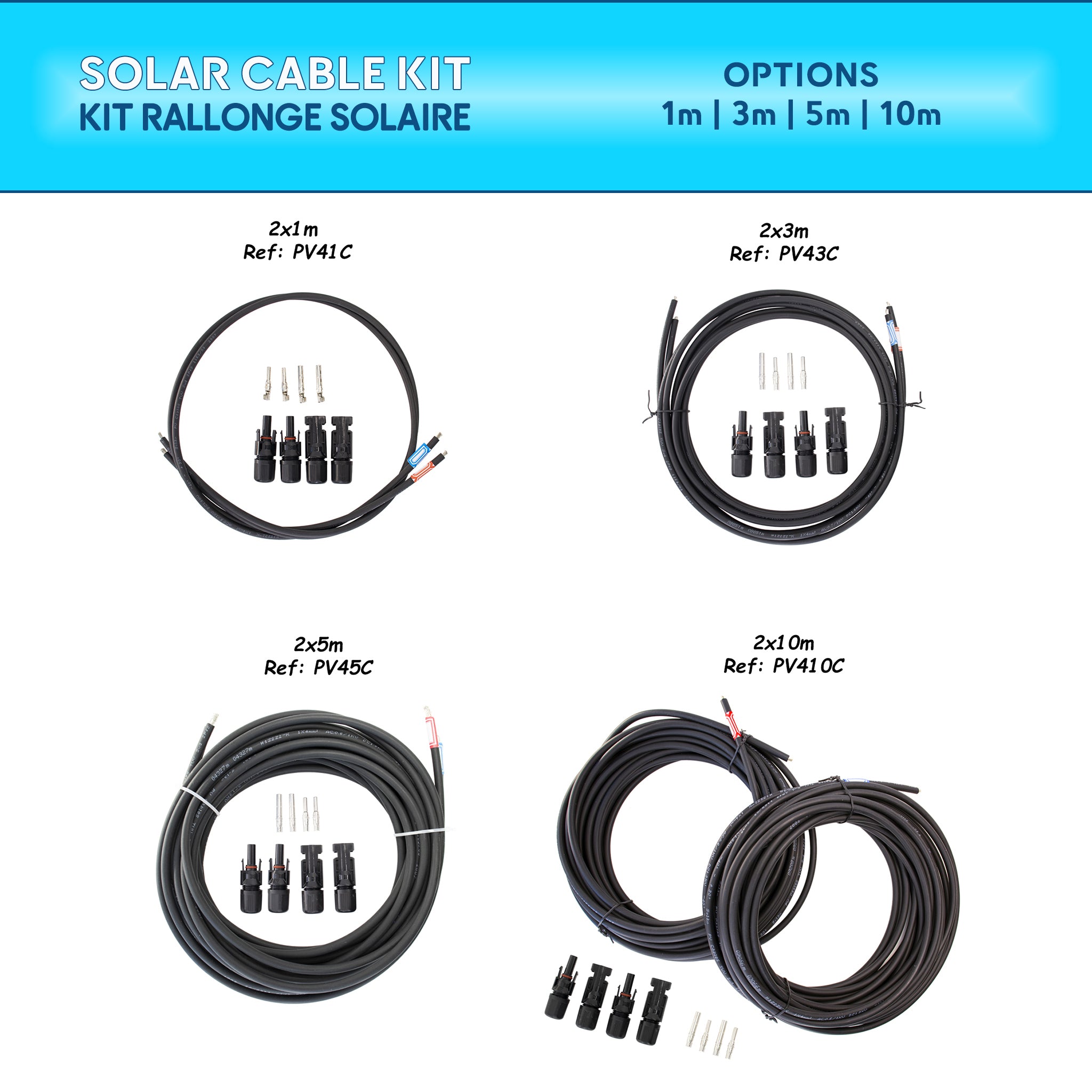

Complete solar cable kit overview featuring different lengths (1m, 3m, 5m, 10m) with MC4 connectors for flexible photovoltaic installations. Includes high-quality H1Z2Z2-K cables for reliable performance. Baywatt

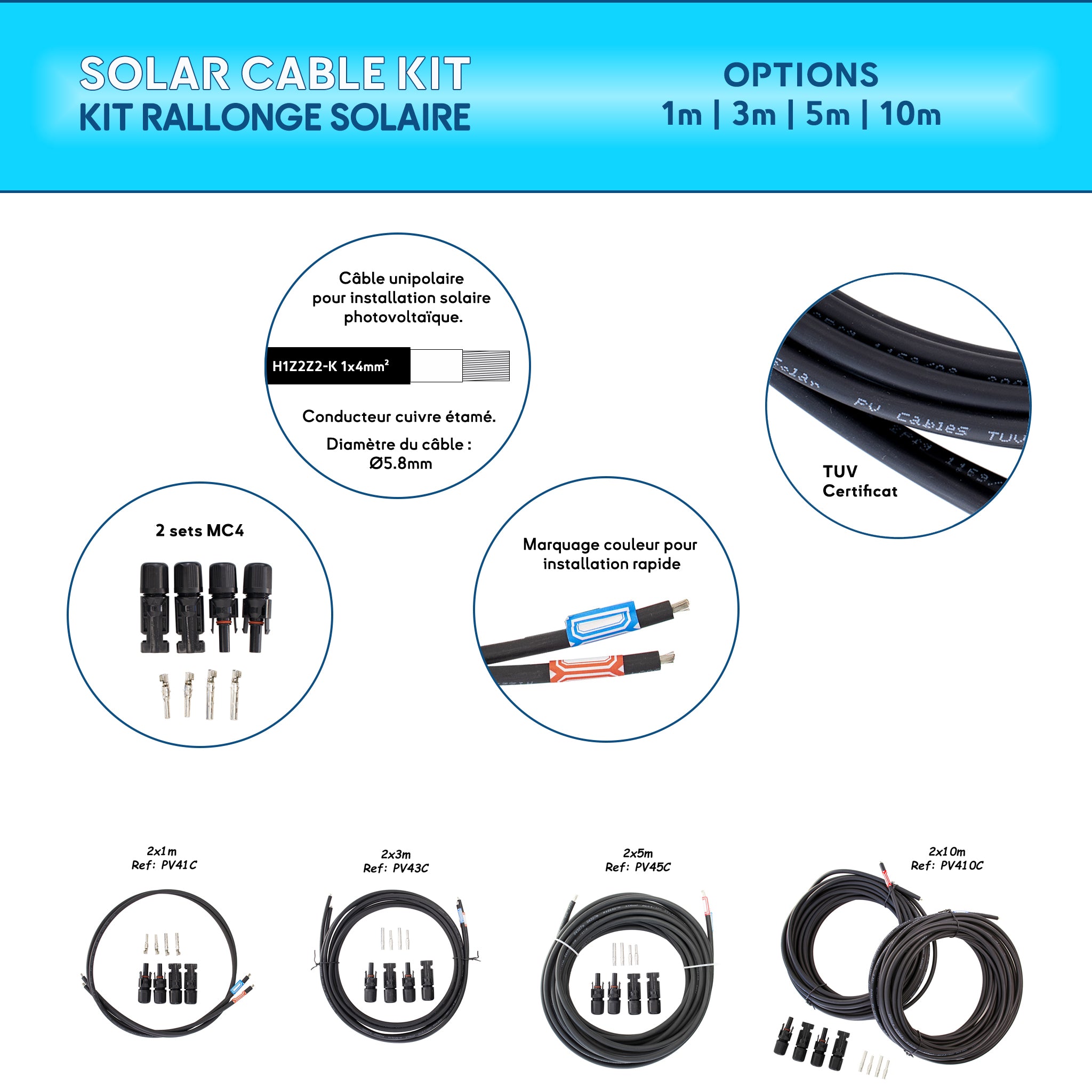

Kit de câbles solaires montrant la qualité des câbles H1Z2Z2-K de 4mm² avec certification TUV, disponibles en longueurs de 1m, 3m, 5m, et 10m. Idéal pour les systèmes photovoltaïques extérieurs Baywatt

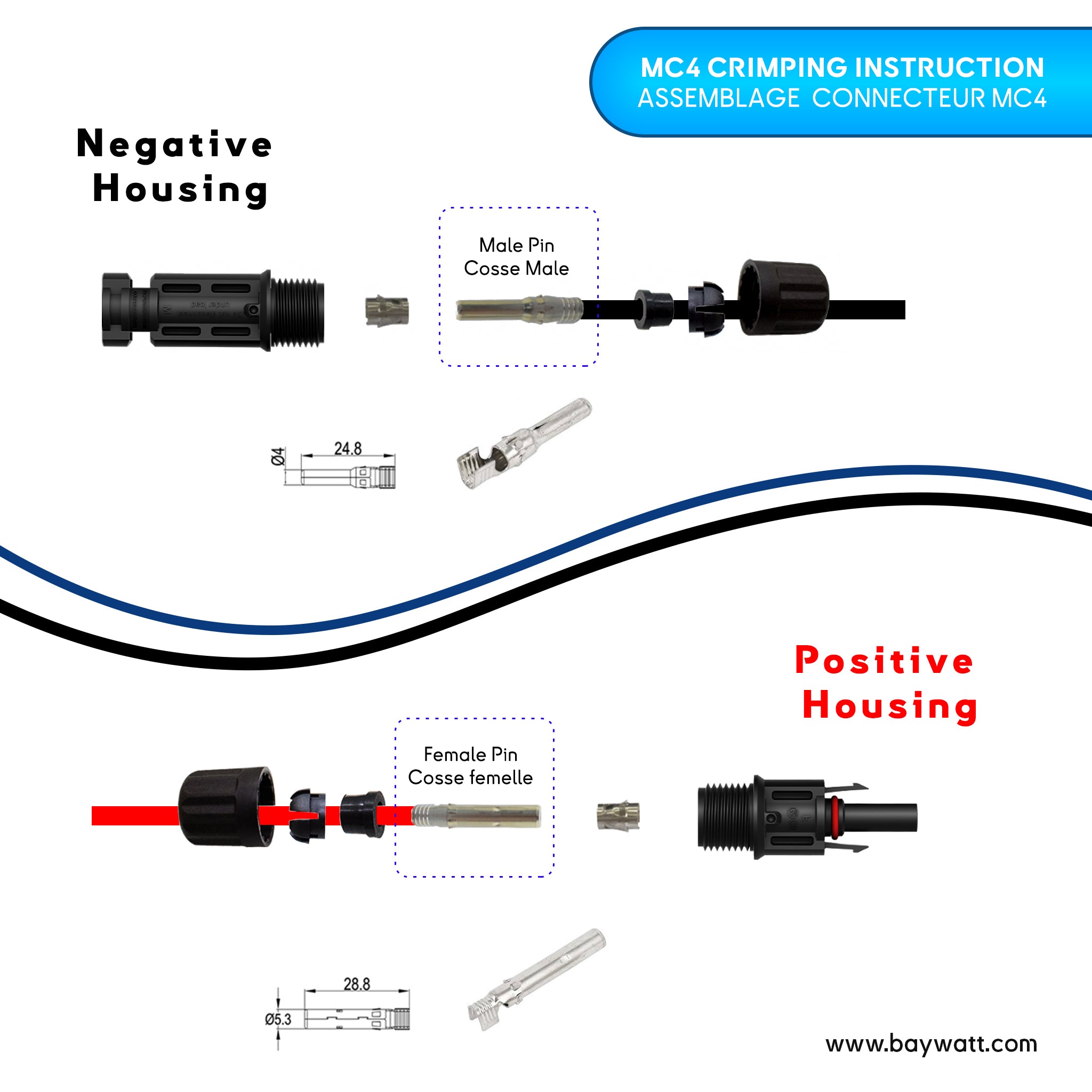

MC4 Connector crimping instruction - Baywatt.com

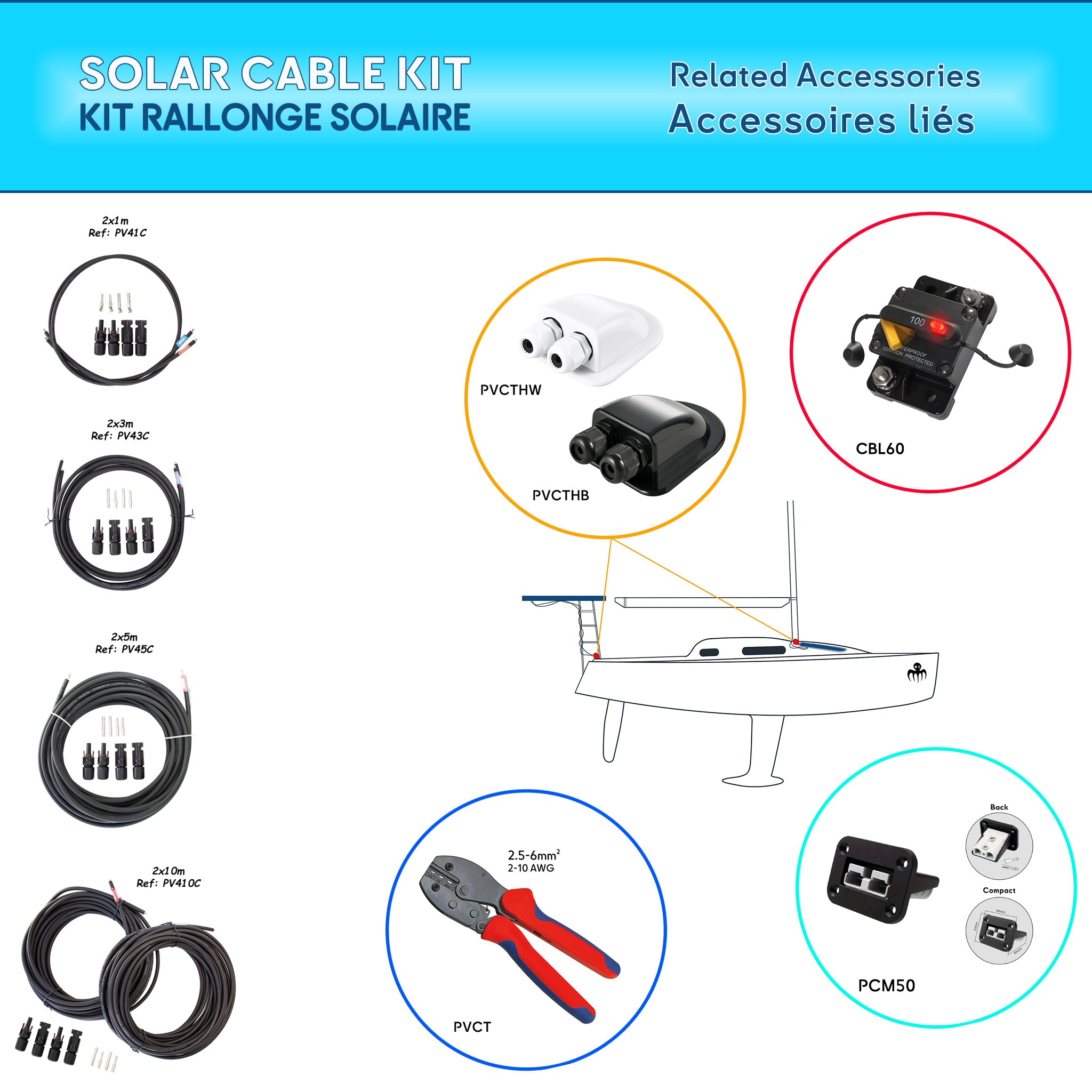

Solar cable kit showing available accessories and extensions for photovoltaic installations, including cable glands, connectors, crimping tools, and mounting components Baywatt

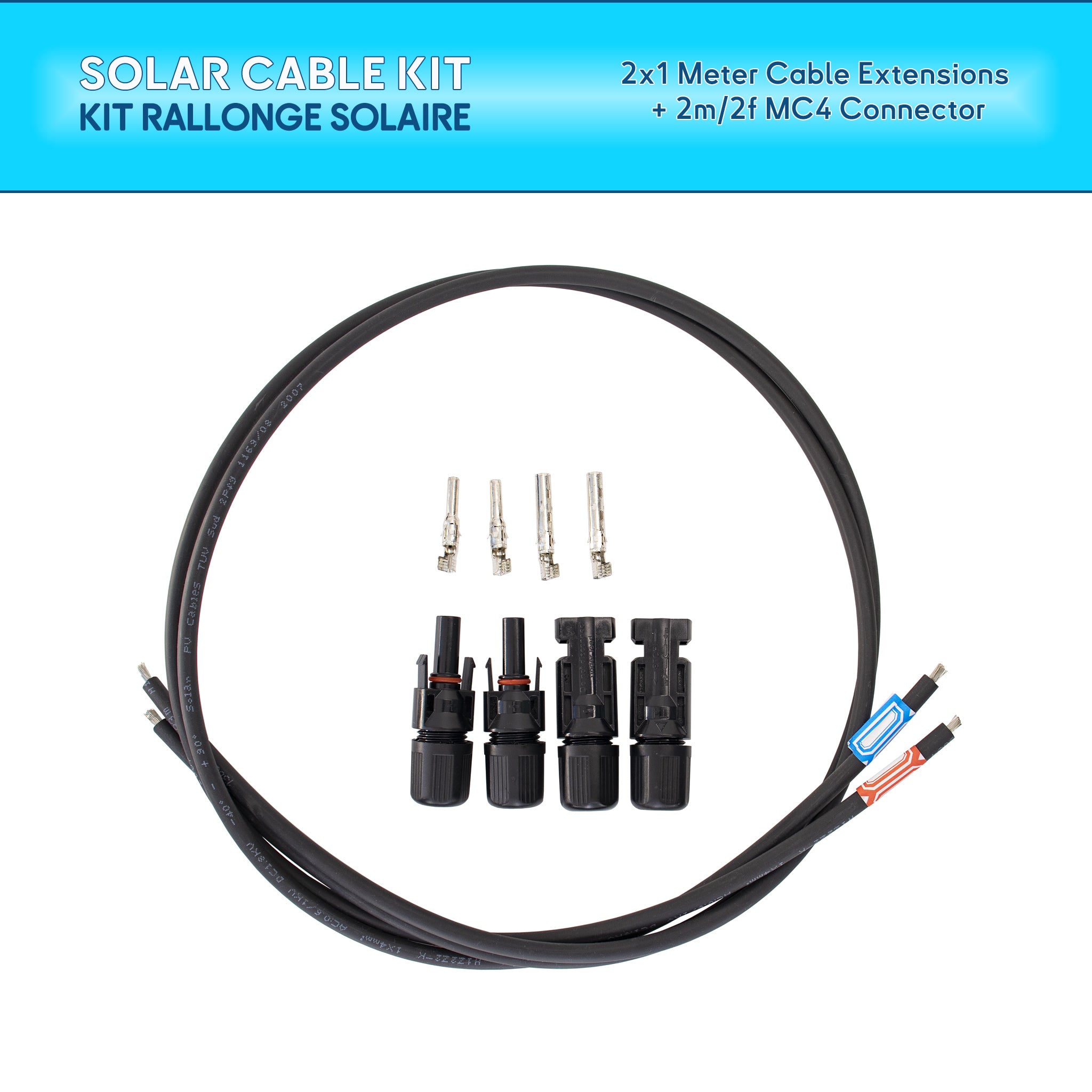

2x1 meter solar cable extension kit with male and female MC4 connectors - Perfect for quick and easy solar panel installations Ref PV41C Baywatt

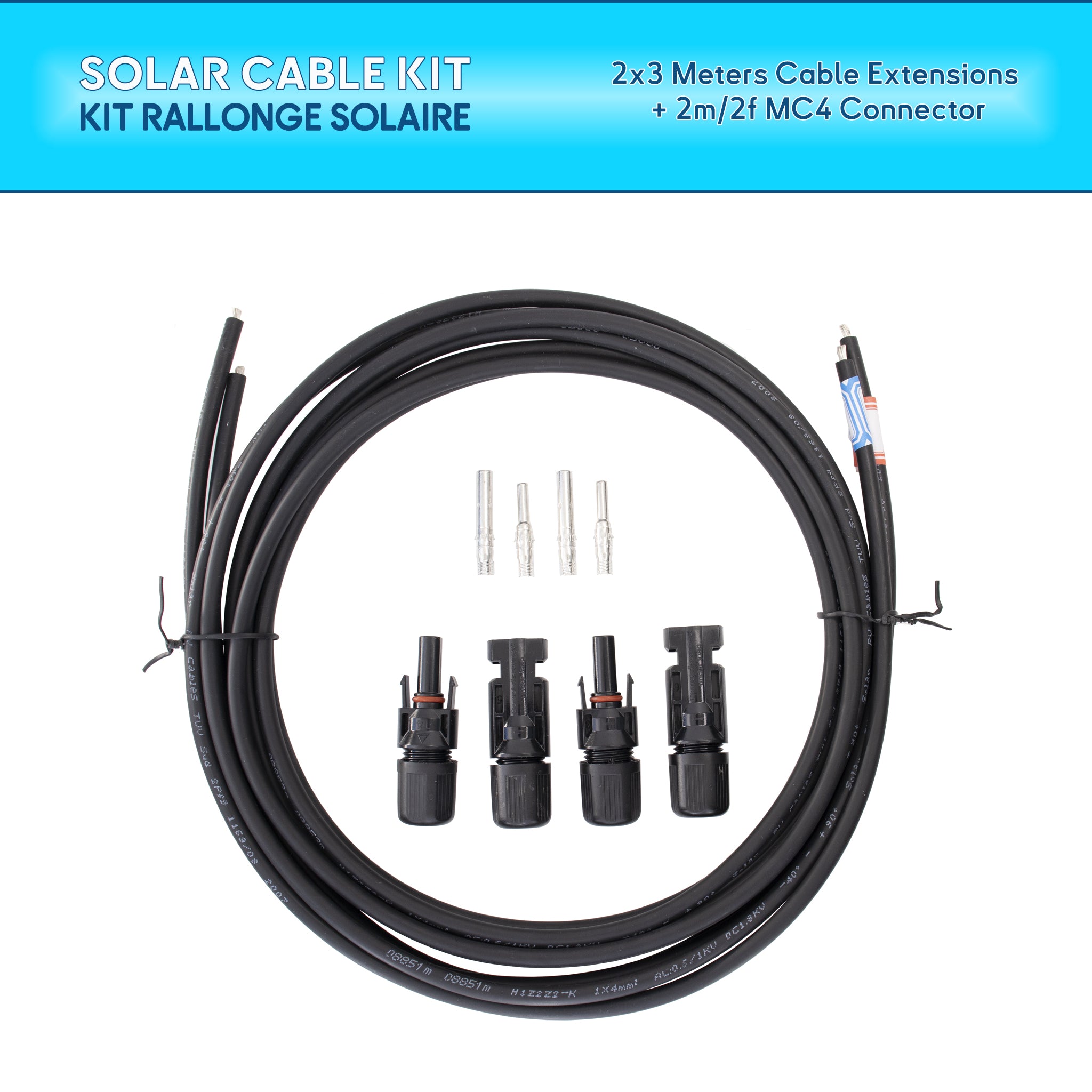

Kit de câbles solaires de 2x3 mètres avec connecteurs MC4 - Câbles flexibles pour une installation rapide et efficace dans les systèmes solaires Ref: PV43C Baywatt

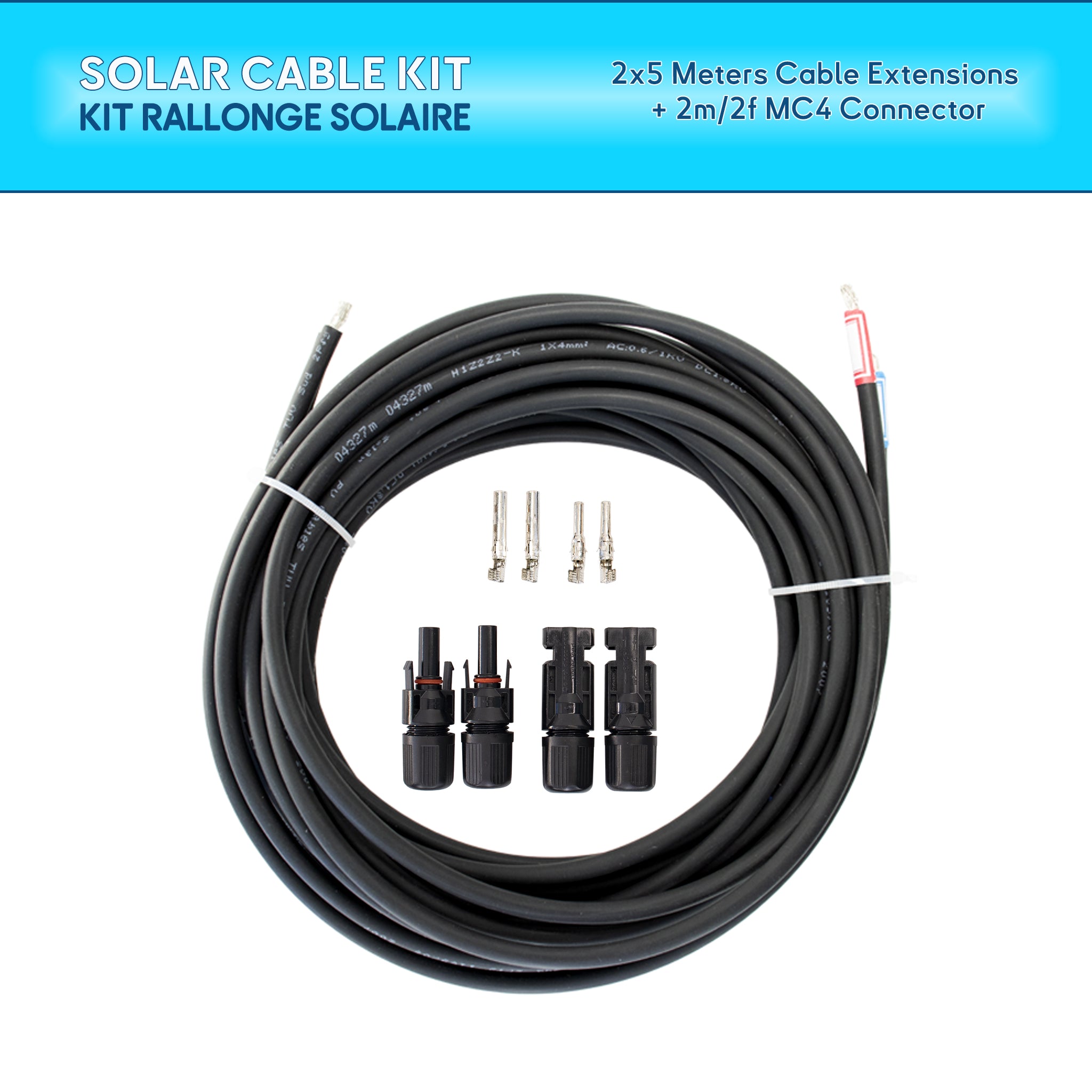

2x5 meter solar cable kit with high-performance MC4 connectors - Suitable for marine applications and outdoor installations in photovoltaic systems Ref: PV45C Baywatt

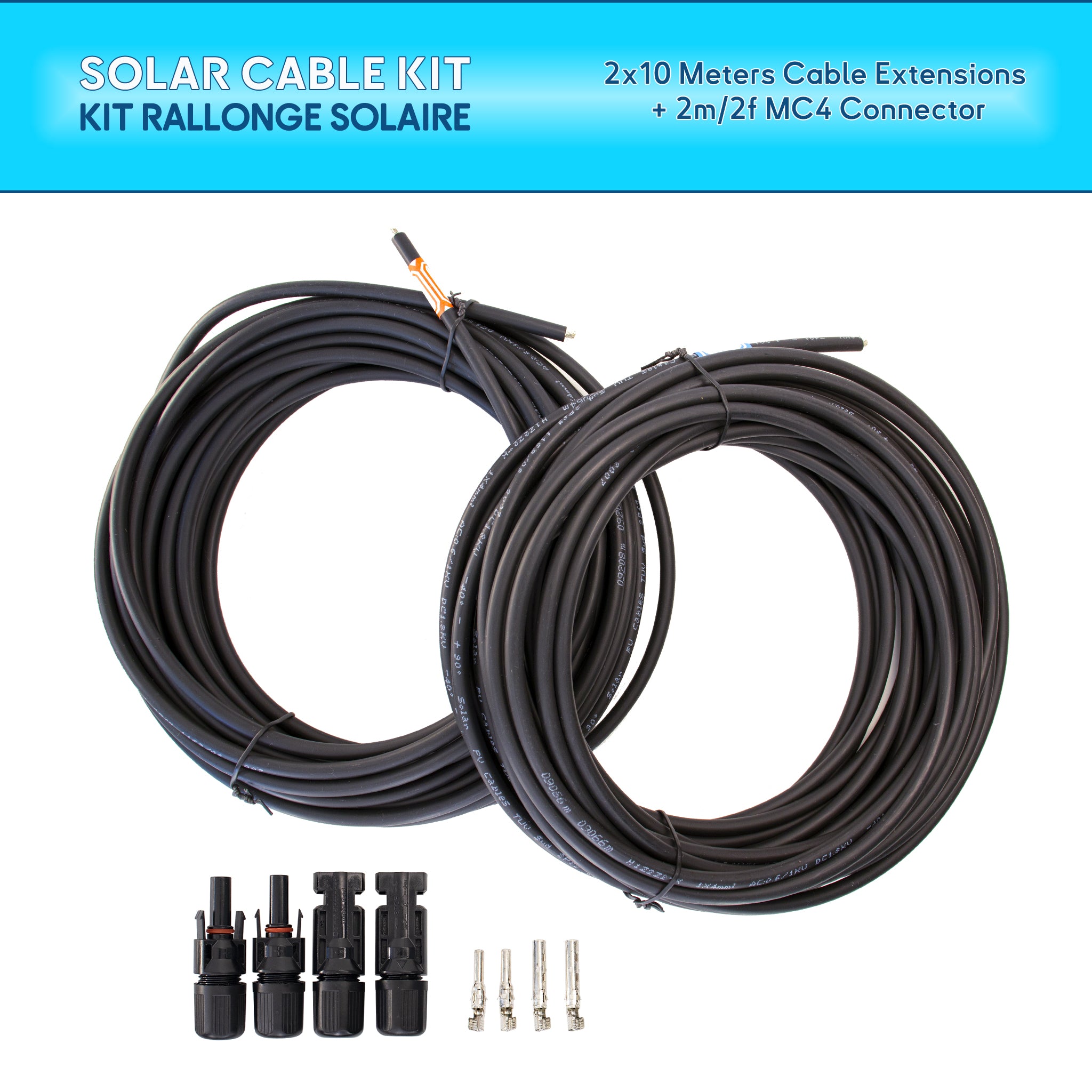

Kit de câbles solaires de 2x10 mètres avec connecteurs MC4 - Offrant une flexibilité maximale pour les installations photovoltaïques extérieures durables Ref: PV410C Baywatt

KIT - 2pcs Solar Cable Extension (To Crimp)

SKU: PV41C

7.50€; 7.50€
Unit price: per

Extension length: Kit 2x1 meter Kit 2x1 meter Kit 2x3 meters Kit 2x5 meters Kit 2x 10 meters

Product variants

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Description
Specification
How to use
FAQ
Download

MC4 Solar Cable Extension Kit – H1Z2Z2-K 4mm² | 1000V 30A

Solar cable extension kit with MC4 connectors, designed for clean and reliable panel wiring in outdoor, marine and off-grid installations. Each kit includes a pair of H1Z2Z2-K 4mm² solar cables with MC4 connectors supplied separately, allowing easier routing through cable glands, bulkheads or smaller drill holes before final assembly.

More flexibility during installation

Unlike fully pre-assembled extensions, these kits give you more freedom during installation:
• pass the cable through tighter openings
• route it through deck glands or conduits more easily
• assemble the MC4 connectors only once the cable is in place

This is especially useful on boats, vans and compact technical installations where access is limited.

H1Z2Z2-K solar cable

This extension set uses H1Z2Z2-K photovoltaic cable, a cable type specifically intended for solar applications. It combines:
• tinned copper conductors for corrosion resistance
• 4mm² section for efficient current transfer
• high flexibility for easier routing

It is suitable for installations exposed to UV, humidity, temperature changes and long-term outdoor use.

Built for outdoor and marine environments

These cables are designed for demanding service conditions:
• UV-resistant outer insulation
• double insulation for solar use
• good flexibility even in complex routing paths
• reliable performance in humid or exposed environments

Combined with MC4 connectors, they provide a secure and standardised connection for solar panels, charge controllers and extension runs.

Electrical performance

Designed for most low-voltage solar systems:
• 1000V DC / 30A max
• compatible with standard MC4 systems
• suitable for 12V, 24V and 48V solar installations

The 4mm² section offers a good balance between flexibility, compactness and current capacity for small to medium solar systems.

Typical applications

• solar panel extension cable
• routing from panel to charge controller
• boat solar installations
• van / RV solar systems
• off-grid photovoltaic systems

Recommended accessories

Specification

Technical specifications

Kit Reference	Cable Length	Cable Type	Connectors Included	Max Voltage / Current	Construction
PV41C	2 × 1 m	H1Z2Z2-K, 4mm², Ø5.8 mm, flexible	2 pairs of MC4 (2 male + 2 female)	1000V DC / 30A	Tinned copper, UV-resistant, double insulated
PV43C	2 × 3 m	H1Z2Z2-K, 4mm², Ø5.8 mm, flexible	2 pairs of MC4 (2 male + 2 female)	1000V DC / 30A	Tinned copper, UV-resistant, double insulated
PV45C	2 × 5 m	H1Z2Z2-K, 4mm², Ø5.8 mm, flexible	2 pairs of MC4 (2 male + 2 female)	1000V DC / 30A	Tinned copper, UV-resistant, double insulated
PV410C	2 × 10 m	H1Z2Z2-K, 4mm², Ø5.8 mm, flexible	2 pairs of MC4 (2 male + 2 female)	1000V DC / 30A	Tinned copper, UV-resistant, double insulated

How to use

How to use :

Discover tips, tricks, and detailed instructions on using our product in our dedicated blog post. Learn about setup, operation, and optimization to get the most out of your purchase.

Link to the blog
