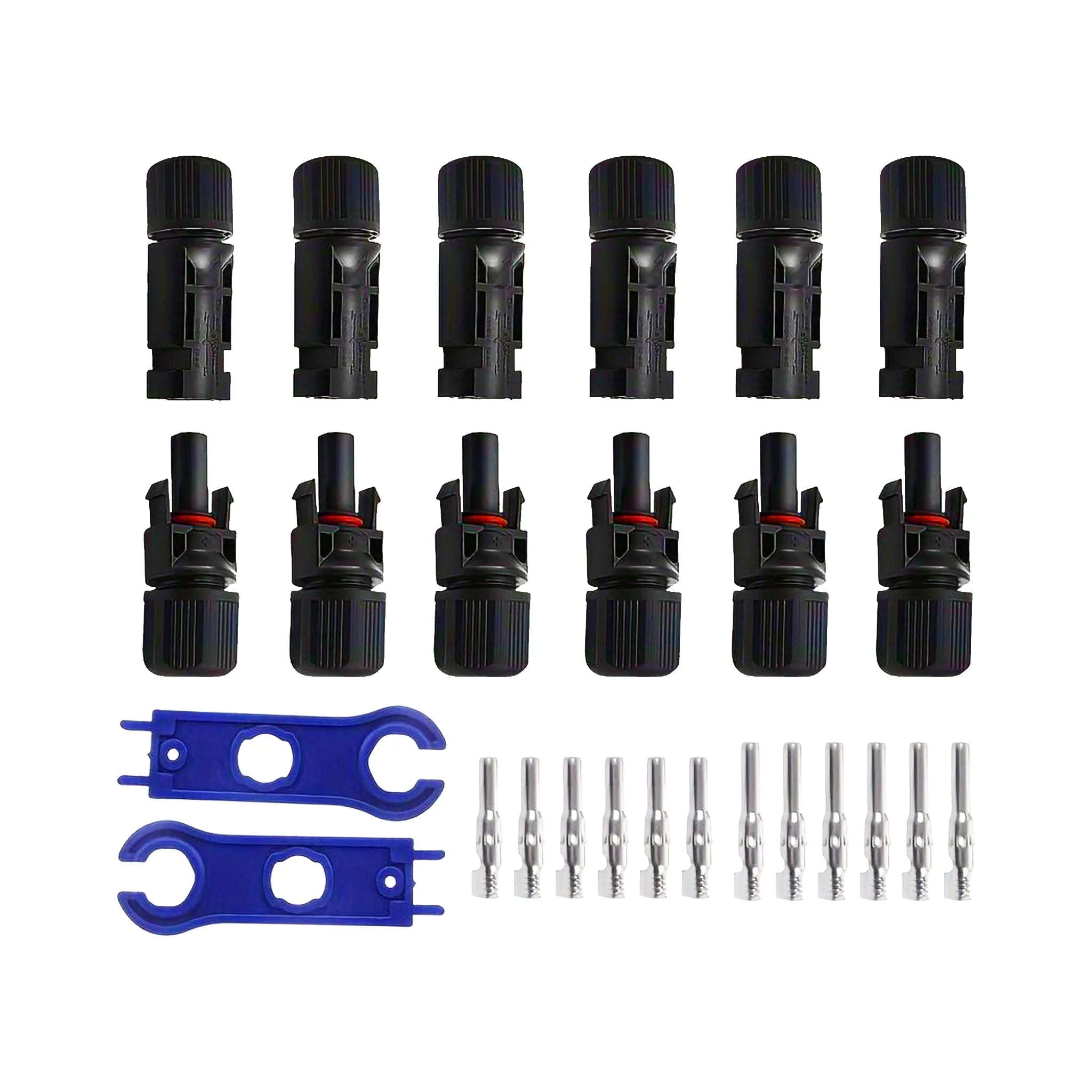

Kit connecteurs solaires MC4 30A avec 6 mâles, 6 femelles, 12 cosses et 2 clés de serrage
MC4 solar kit waterproof IP67 1000V 30A with tools included for photovoltaic and marine wiring

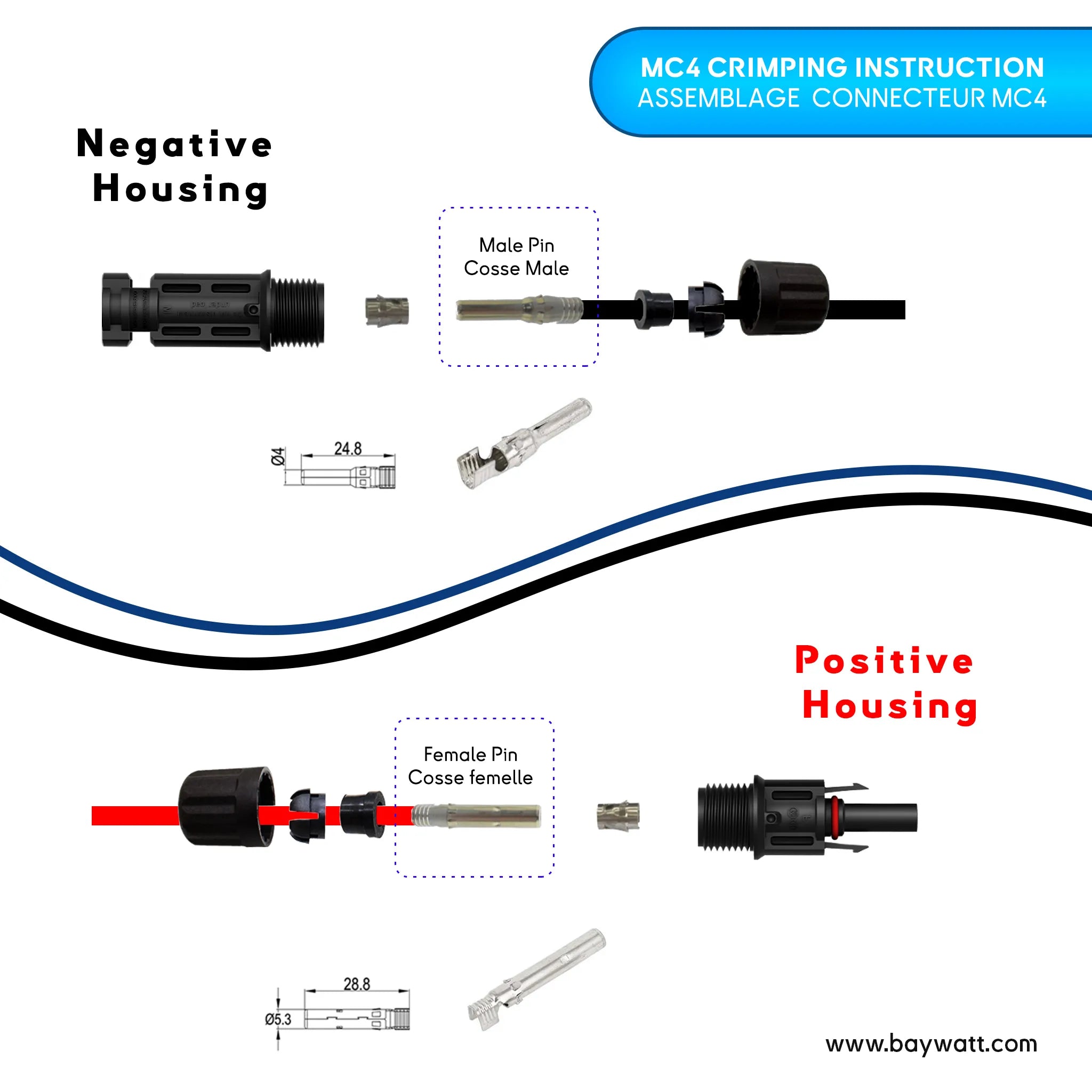

Schéma d’assemblage connecteur solaire MC4 montrant boîtier mâle et femelle, cosses et processus de sertissage
Kit connecteurs solaires MC4 30A avec 6 mâles, 6 femelles, 12 cosses et 2 clés de serrage
MC4 solar kit waterproof IP67 1000V 30A with tools included for photovoltaic and marine wiring
Schéma d’assemblage connecteur solaire MC4 montrant boîtier mâle et femelle, cosses et processus de sertissage

MC4 Connector Kit - 6 pairs M/F + tools

SKU: PVCK
6.00€
6.00€
Subtotal: 6.00€

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Description

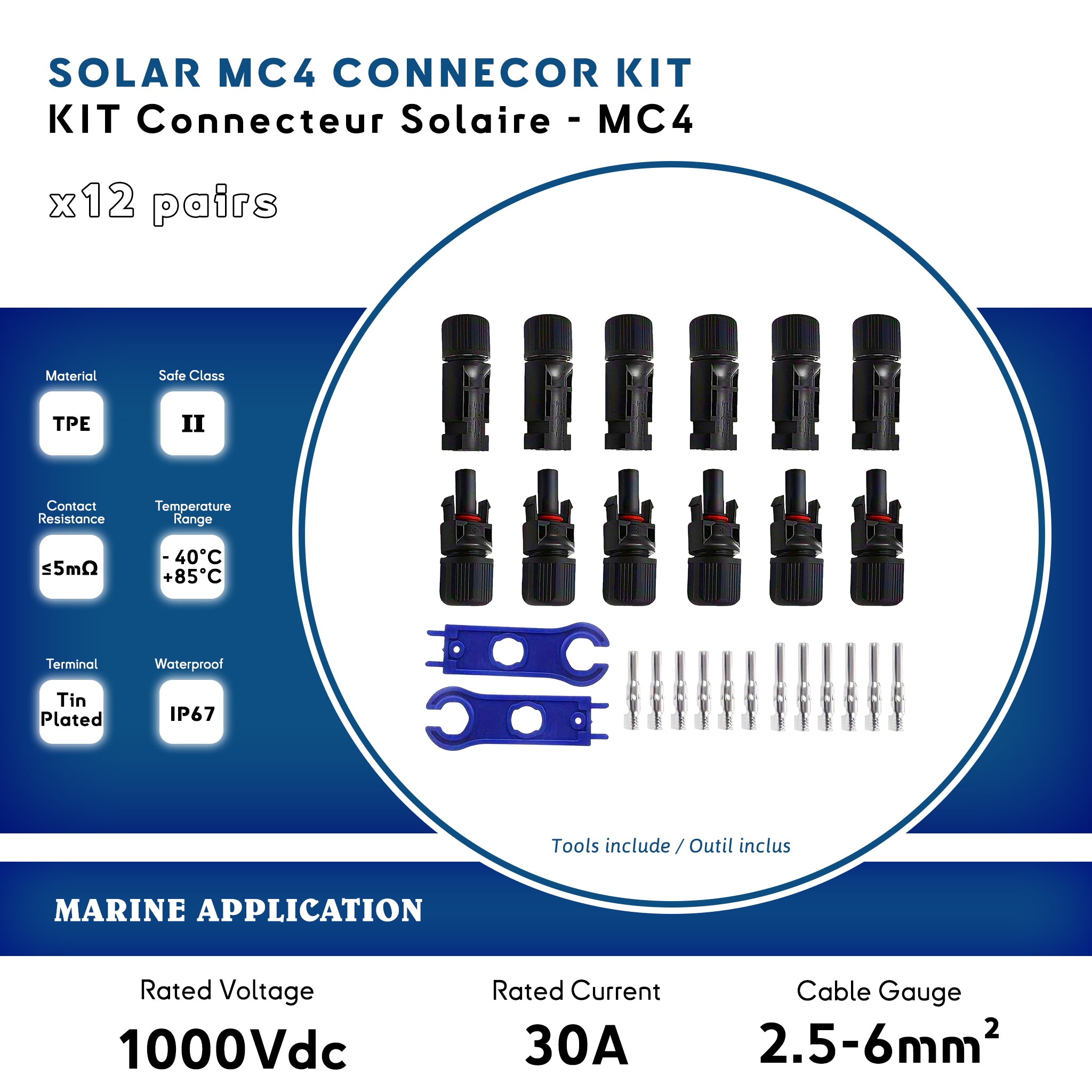

MC4 Connector Kit – 6 Pairs + Tools | 1000V 30A Solar Wiring

Complete MC4 solar connector kit for building or upgrading your solar wiring. Includes 6 male connectors, 6 female connectors, crimp contacts, and 2 MC4 tightening tools. Designed for clean, reliable connections in 12V, 24V and 48V solar systems.

Clean and modular solar wiring

MC4 connectors are the standard for solar panel wiring. This kit allows you to:
• build custom solar cables
• replace damaged connectors
• adapt or extend your installation

It helps avoid loose connections, voltage drops and unreliable wiring often seen in improvised setups.

Simple installation – no complexity

Installation is straightforward:
• strip the cable
• crimp the contact
• insert into the connector
• lock the housing

The included MC4 tools ensure proper tightening and sealing for long-term reliability.

Wide compatibility

Compatible with:
• solar panels with MC4 connectors
• MPPT and PWM charge controllers
• inverters and battery systems

Supports cable sizes 2.5 / 4 / 6 mm², covering most marine, RV and off-grid installations.

Designed for outdoor environments

Built for demanding conditions:
• IP67 waterproof (mated)
• UV-resistant housing
• tinned copper contacts (anti-corrosion)

Suitable for marine environments, vibration, humidity and temperature variations.

Typical applications

• custom solar cable assembly
• panel extension or upgrade
• replacement of worn connectors
• boat, van and off-grid solar systems

Recommended accessories

Specification

Technical specifications

Kit contents 6× MC4 male, 6× MC4 female, 12× contacts, 2× MC4 tools
Rated current 30 A (DC)
Max voltage 1000 V DC
Waterproof rating IP67 (connected)
Cable size 2.5 / 4 / 6 mm²
Contact resistance ≤ 1 mΩ
Materials Tinned copper contacts, UV-resistant PPO housing, EPDM seals
Operating temperature -40 °C to +90 °C
Tightening torque ≈ 2.5 – 3 Nm (MC4 tool)
Standards IEC 62852
Compatibility MC4 solar panels, MPPT/PWM controllers, DC/AC inverters
