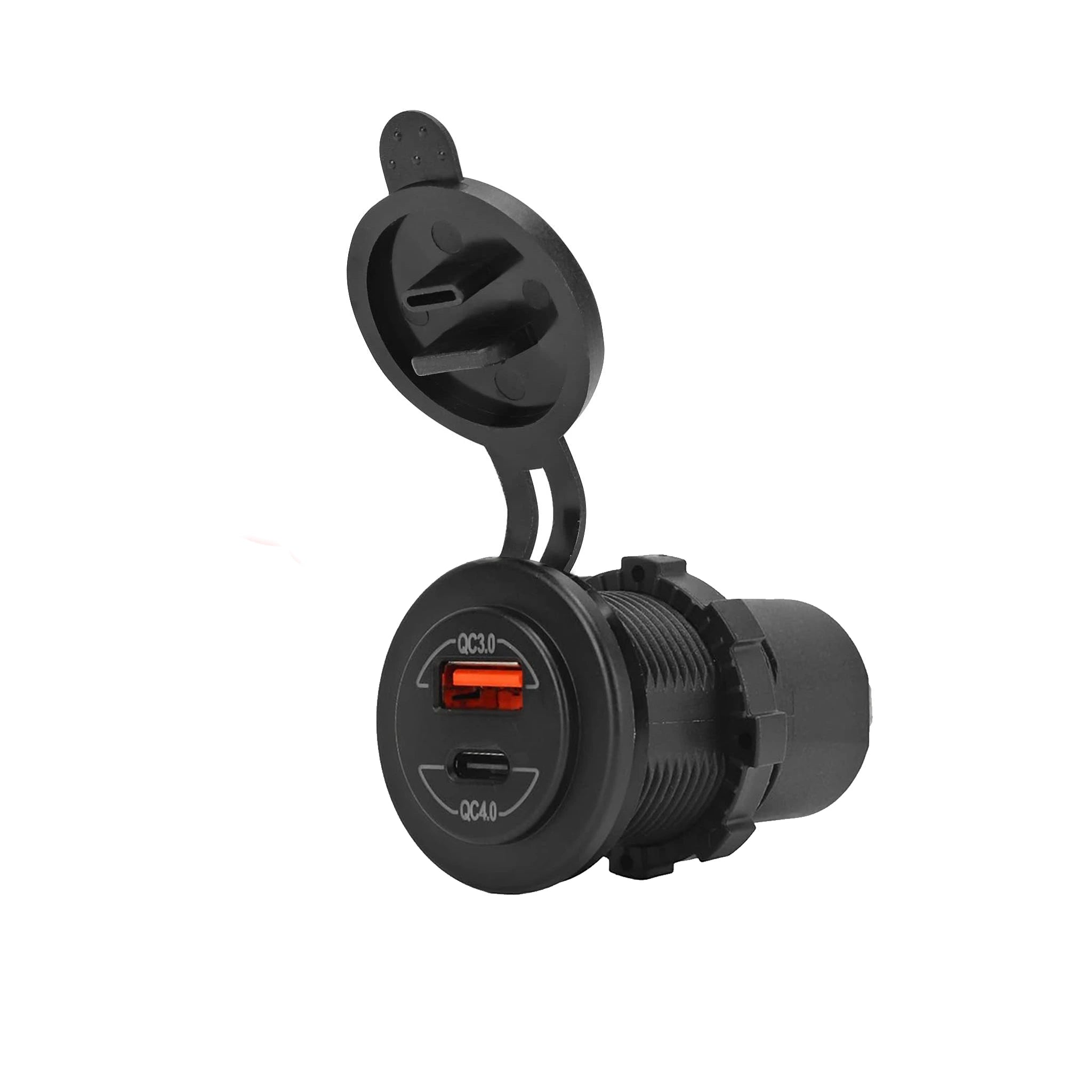

Waterproof Dual USB 3.0 & USB-C for boat. Charger Socket (12V/24V) Fast charging 60W usb type-c marine grade ip65

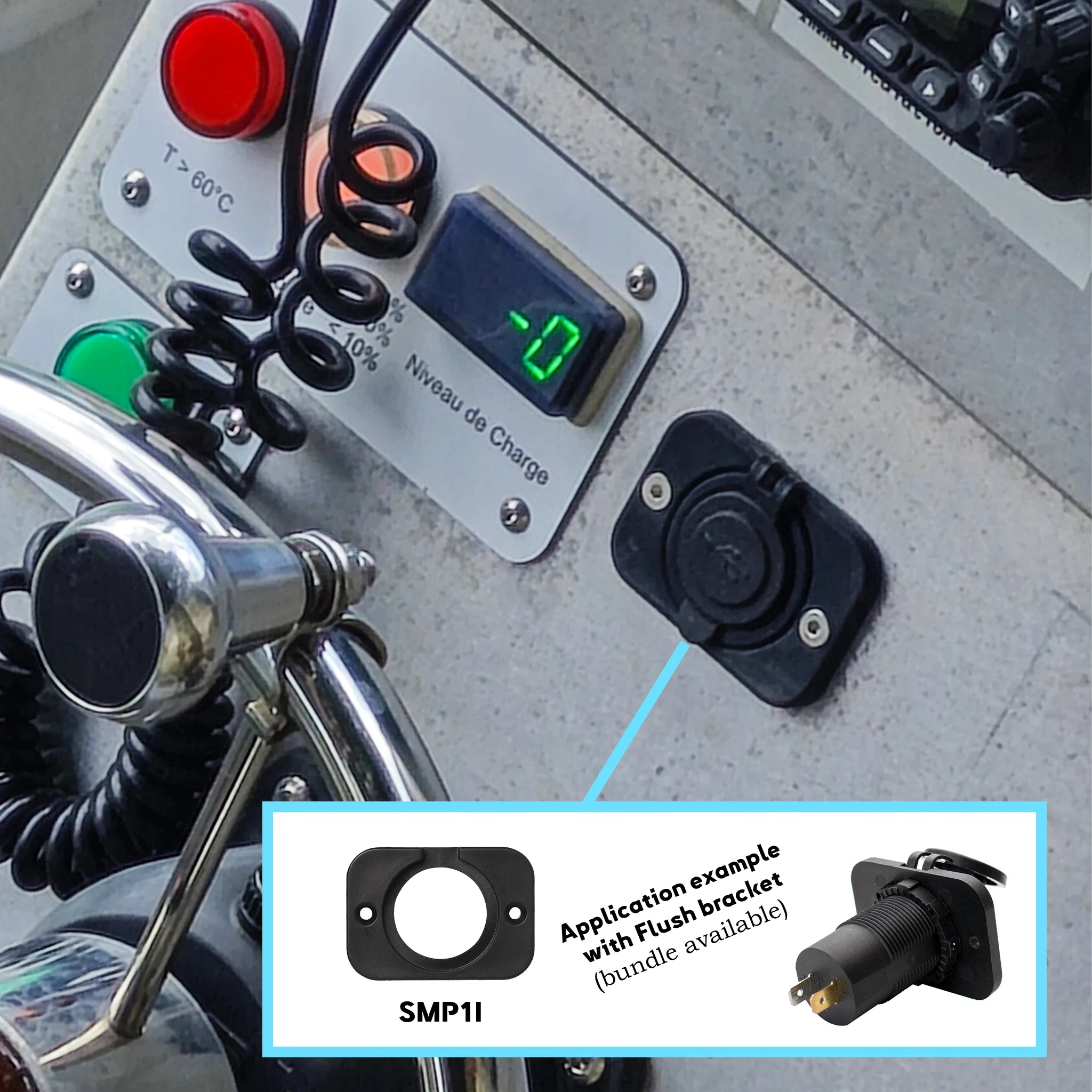

Chargeur USB QC3.0 et Type-C 60W étanche à charge rapide pour console de bateau

Chargeur USB marin étanche IP65 avec double port ultra-rapide 60W + 18W, compatible QC4.0 et QC3.0, idéal pour bateaux, 12V/24V et tableaux de bord marins.

Chargeur USB double ultra-rapide 60W + 18W pour installation marine, présenté avec supports de montage plat, rond et POD pour tableau de bord ou cockpit de bateau.

Marine USB-C 60W & USB-A Fast Charger Socket — 12V/24V

SKU: US2XH

18.20€; 18.20€
Unit price: per

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Description
Specification
How to use
FAQ
Download

Marine USB-C 60W & USB-A Fast Charger Socket — 12V/24V

BAYWATT
12V / 24V DC
USB-C 60W + USB-A 18W
IP65
See specifications ↓

USB-C laptop charging and USB-A convenience aboard. The BAYWATT US2XH marine charger socket combines USB-C fast charging up to 60W with a USB-A Quick Charge 3.0 port up to 18W. Connect compatible laptops, phones and tablets directly to your boat’s 12V or 24V DC electrical system, without an AC inverter.

A practical choice beside the chart table or in the saloon: USB-C serves a compatible USB-PD laptop or tablet while USB-A provides a familiar connection for phones and accessories. Check that your laptop accepts the charger’s supported USB-PD profile.

Smart charging: the power your device can accept

USB-C charging is negotiated between the charger and a compatible device. A device requesting 20W receives only the supported power it needs, rather than being forced to accept 60W. The USB-A port uses Quick Charge 3.0 with compatible devices.

The rating is an available maximum. Charging power changes with battery level, temperature and device use; it does not guarantee a fixed charging time.

Convenient Charging on Your Boat

USB-C up to 60WCharge a compatible USB-PD laptop, phone or tablet with an appropriate USB-C cable.

USB-A up to 18WKeep a second connection available for compatible Quick Charge phones and USB accessories.

Mixed connections for the crewOne USB-A port and one USB-C port accommodate different charging cables aboard.

Two Devices Connected: How Much Power Is Available?

The individual port ratings are 60W USB-C and 18W USB-A, with a 65W combined output limit. Do not expect 78W simultaneously. The available power per device depends on the combined load; a fixed simultaneous split is not specified.

IP65 Protection for Your Marine Installation

The moulded nylon body, protective cap and overload protection suit a panel-mounted charging point aboard. The technical sheet lists ECE R10 electromagnetic compatibility.

The socket has an IP65 rating and a protective cap. For exterior installation, choose a sheltered location, close the cap when not in use and protect the rear connections. Keep open ports and plugs dry while charging: IP65 protection with a cable connected is not established.

No integrated on/off switch. To disconnect the charger between trips, use a suitable separate switch on the electrical panel.

Panel or BAYWATT Bracket Installation

Choose an accessible, sheltered location with clearance behind the panel and room to open the cap.
Follow the template: Ø29.2mm opening, with 26.2mm across the flats shown in the drawing. The front collar projects 6mm. Insert the body and secure the rear locking nut.
Observe the marked positive and negative terminals. Use insulated 6.3mm female spade connectors, appropriately sized marine cable and a fused or breaker-protected supply.
Use a USB-C to USB-C cable rated for at least 60W to access the maximum USB-C capability.

Compatible BAYWATT flat, round or POD supports adapt the installation to your console. A multi-position panel can combine USB charging with another compatible socket, voltmeter or switch.

Specification

Technical Specifications — US2XH

Reference	US2XH
Ports and protocols	1 × USB-A QC 3.0 + 1 × USB-C QC 4.0 / PD
Nominal boat system	12V / 24V DC
Operating input voltage	8–32V DC
Maximum USB-A output	18W
Maximum USB-C output	60W
Both ports in use	65W total; port allocation not specified
USB-A output voltage	3.6–12V
USB-C output voltage	5–20V
Quiescent current	20mA
Protection rating	IP65; close the cap when not in use
Electrical protection	Overload protection
Electromagnetic compatibility	ECE R10
Operating temperature	−40°C to +80°C
Panel cut-out	Ø29.2mm / 26.2mm across flats
Front diameter	Ø36.5mm
Front collar projection	6mm
Overall length	62.9mm
Supply terminals	6.3mm spade terminals; nickel-plated copper
Specified service life	5,000 operating cycles

Dimensions correspond to the model’s technical drawing. Check the template before drilling. Actual charging power depends on the device, cable, boat supply and operating conditions.

Compare the Four BAYWATT Marine USB Sockets

Choose the connections and power suited to your devices. All four models are intended for 12V/24V systems and have an IP65 rating.

Model	Ports	USB-A maximum	USB-C maximum on one port	Total limit	Suggested use
US2X3	2 × USB-A	18W per port	—	36W	Phones, tablets and USB-A accessories
US2XH	USB-A + USB-C	18W	60W	65W	USB-C laptop or tablet plus USB-A accessories
US2XC	2 × USB-C	—	60W	60W	Two USB-C devices; up to 60W total
US2XH-2	USB-A + USB-C	36W	100W alone; 60W with USB-A	100W USB-C alone; 96W with both ports	Laptop charging up to 100W on USB-C alone

Maximum outputs require compatible devices, protocols and cables. Individual port ratings do not automatically add together; observe each model’s total limit.

How to use

How to use :

Discover tips, tricks, and detailed instructions on using our product in our dedicated blog post. Learn about setup, operation, and optimization to get the most out of your purchase.

Link to the blog

FAQ

Frequently Asked Question

1. Can I charge a laptop on my boat without an inverter?

Yes, if it accepts USB-C Power Delivery charging and a profile supported by this socket. USB-C is rated up to 60W. Check your laptop’s requirements: a model needing more power may charge slowly or lose battery charge under heavy use.

2. Do the USB-C and USB-A ratings mean 78W at the same time?

No. USB-C is rated up to 60W and USB-A up to 18W individually, but the listed combined output limit is 65W. The specification does not state a fixed simultaneous split, so do not assume both ports can maintain their individual maximums together.

3. Will every device charge at the socket’s maximum wattage?

No. A compatible device uses a supported charging protocol and draws the power it needs within the charger’s limits. Charging speed also depends on the cable, battery level and temperature. Some phones require a proprietary charger to reach their advertised maximum.

4. Which cable do I need for 60W USB-C charging?

Use a USB-C to USB-C charging cable rated for at least 60W with a compatible USB-PD device. A higher-rated cable is also suitable, but it does not increase this charger’s 60W USB-C maximum.

5. Can I install the socket outside on my boat?

The socket is rated IP65. Choose a sheltered location, close the protective cap when not charging and protect the rear wiring. Keep open ports and plugs dry during charging; IP65 protection with a cable connected is not established.

6. What panel opening and electrical connections do I need?

Follow the model’s technical drawing: the opening is Ø29.2mm with 26.2mm across the flats. Secure the socket with the rear nut and use insulated 6.3mm female spade connectors. Respect the marked polarity and use appropriately sized marine cable with a fused or breaker-protected supply.

7. Are these USB ports for data or for charging?

They are charging outputs. They do not provide a connection for transferring data between devices. QC 3.0 and QC 4.0 identify the charging technologies, rather than USB data-transfer speeds.
