Marine Dual USB-A QC 3.0 36W Charger Socket — 12V/24V

BAYWATT
12V / 24V DC
2 × 18W USB-A
IP65
See specifications ↓

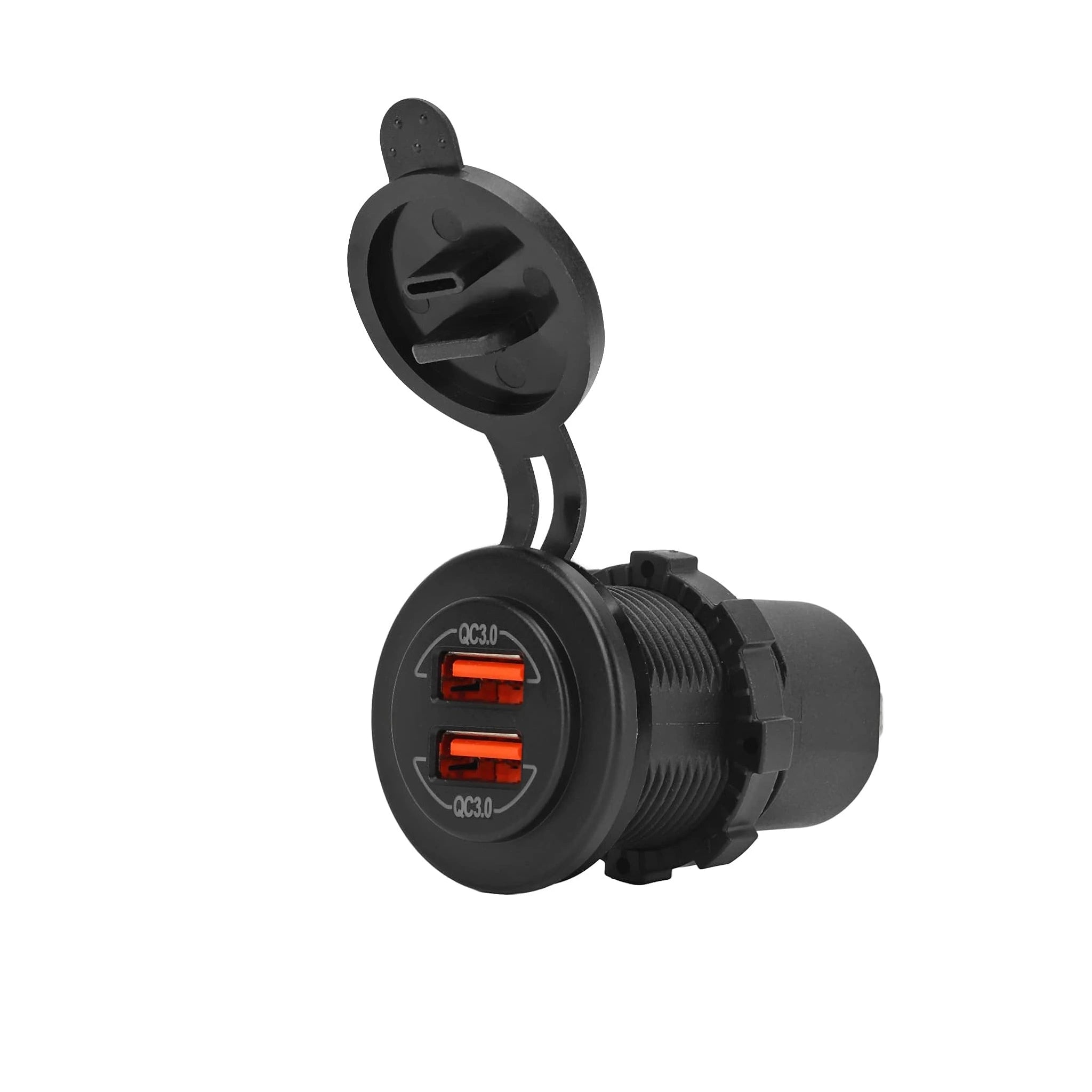

Two USB-A ports for everyday charging aboard. The BAYWATT US2X3 marine charger socket brings two USB-A Quick Charge 3.0 ports to your boat’s 12V or 24V electrical system. Each port supplies up to 18W, with a 36W combined maximum, for compatible phones, tablets and USB accessories.

Fit it in the saloon, beside the chart table or at a sheltered helm to keep navigation tablets, crew phones and communication accessories charged directly from the boat battery.

Smart charging: the power your device can accept

A compatible Quick Charge device requests a supported charging voltage and draws the power it needs. An 18W port does not force 18W into every device. Devices without compatible fast charging can still charge at a supported standard USB level.

The rating is an available maximum. Charging power changes with battery level, temperature and device use; it does not guarantee a fixed charging time.

Convenient Charging on Your Boat

Two familiar USB-A connectionsKeep two compatible devices charging at once, with up to 18W available on each port.

Direct 12V / 24V chargingRecharge phones and tablets from the boat’s DC supply without an AC inverter.

A practical marine charging pointProtective cap, IP65 rating and panel mounting for a cabin, chart table or sheltered console.

Two Devices Connected: How Much Power Is Available?

Both USB-A ports can be used together: up to 18W + 18W = 36W. This model provides USB-A charging; choose a USB-C model for compatible USB-PD laptop charging.

IP65 Protection for Your Marine Installation

The moulded nylon body, protective cap and overload protection suit a panel-mounted charging point aboard. The technical sheet lists ECE R10 electromagnetic compatibility.

The socket has an IP65 rating and a protective cap. For exterior installation, choose a sheltered location, close the cap when not in use and protect the rear connections. Keep open ports and plugs dry while charging: IP65 protection with a cable connected is not established.

No integrated on/off switch. To disconnect the charger between trips, use a suitable separate switch on the electrical panel.

Panel or BAYWATT Bracket Installation

Choose an accessible, sheltered location with clearance behind the panel and room to open the cap.
Follow the template: Ø29.2mm opening, with 26.2mm across the flats shown in the drawing. The front collar projects 6mm. Insert the body and secure the rear locking nut.
Observe the marked positive and negative terminals. Use insulated 6.3mm female spade connectors, appropriately sized marine cable and a fused or breaker-protected supply.
Use USB-A cables suited to your devices and intended charging speed.

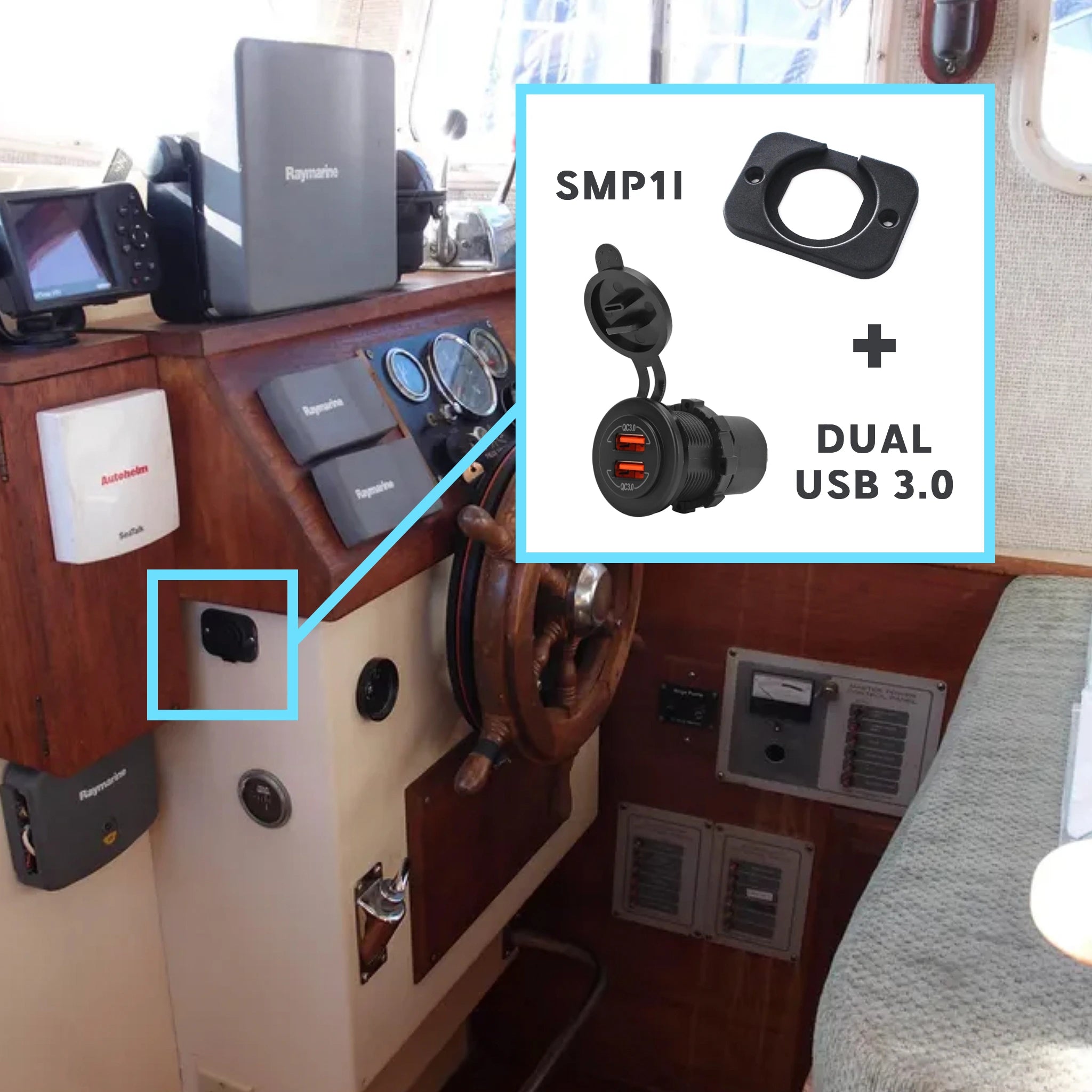

Compatible BAYWATT flat, round or POD supports adapt the installation to your console. A multi-position panel can combine USB charging with another compatible socket, voltmeter or switch.

Specification

Technical Specifications — US2X3

Reference	US2X3
Ports and protocols	2 × USB-A QC 3.0
Nominal boat system	12V / 24V DC
Operating input voltage	8–32V DC
Maximum USB-A output	18W per port
Maximum USB-C output	—
Both ports in use	18W + 18W ; 36W
USB-A output voltage	3.6–12V
USB-C output voltage	—
Quiescent current	20mA
Protection rating	IP65; close the cap when not in use
Electrical protection	Overload protection
Electromagnetic compatibility	ECE R10
Operating temperature	−40°C to +80°C
Panel cut-out	Ø29.2mm / 26.2mm across flats
Front diameter	Ø36.5mm
Front collar projection	6mm
Overall length	62.9mm
Supply terminals	6.3mm spade terminals; nickel-plated copper
Specified service life	5,000 operating cycles

Dimensions correspond to the model’s technical drawing. Check the template before drilling. Actual charging power depends on the device, cable, boat supply and operating conditions.

Compare the Four BAYWATT Marine USB Sockets

Choose the connections and power suited to your devices. All four models are intended for 12V/24V systems and have an IP65 rating.

Model	Ports	USB-A maximum	USB-C maximum on one port	Total limit	Suggested use
US2X3	2 × USB-A	18W per port	—	36W	Phones, tablets and USB-A accessories
US2XH	USB-A + USB-C	18W	60W	65W	USB-C laptop or tablet plus USB-A accessories
US2XC	2 × USB-C	—	60W	60W	Two USB-C devices; up to 60W total
US2XH-2	USB-A + USB-C	36W	100W alone; 60W with USB-A	100W USB-C alone; 96W with both ports	Laptop charging up to 100W on USB-C alone

Maximum outputs require compatible devices, protocols and cables. Individual port ratings do not automatically add together; observe each model’s total limit.

How to use

How to use :

Discover tips, tricks, and detailed instructions on using our product in our dedicated blog post. Learn about setup, operation, and optimization to get the most out of your purchase.

Link to the blog

FAQ

Frequently Asked Question

1. How much power does the dual USB-A socket provide?

Each USB-A QC 3.0 port supplies up to 18W, with up to 36W combined when both ports are used. These are maximum ratings for compatible devices, cables and a suitable boat supply.

2. Can I charge a USB-C laptop with this model?

This model has two USB-A charging ports and does not offer USB-C Power Delivery laptop charging. Choose the USB-C 60W or 100W model for a compatible USB-PD laptop.

3. Will every device charge at the socket’s maximum wattage?

No. A compatible device uses a supported charging protocol and draws the power it needs within the charger’s limits. Charging speed also depends on the cable, battery level and temperature. Some phones require a proprietary charger to reach their advertised maximum.

4. Which charging cables should I use?

Use USB-A charging cables suited to your devices. To access Quick Charge 3.0 fast charging, the device and cable must support the intended charging mode. An adapter does not turn these USB-A ports into a USB-C PD charger.

5. Can I install the socket outside on my boat?

The socket is rated IP65. Choose a sheltered location, close the protective cap when not charging and protect the rear wiring. Keep open ports and plugs dry during charging; IP65 protection with a cable connected is not established.

6. What panel opening and electrical connections do I need?

Follow the model’s technical drawing: the opening is Ø29.2mm with 26.2mm across the flats. Secure the socket with the rear nut and use insulated 6.3mm female spade connectors. Respect the marked polarity and use appropriately sized marine cable with a fused or breaker-protected supply.

7. Are these USB ports for data or for charging?

They are charging outputs. They do not provide a connection for transferring data between devices. QC 3.0 and QC 4.0 identify the charging technologies, rather than USB data-transfer speeds.
