Modular Rocker Switch Mount Brackets for Marine Panels

REF: R1-MBLR

4.10€; ~~2,20€~~; 4.10€
Prix unitaire: par

Module Type: End Bracket End Bracket Centre Bracket Individual Bracket

Options de produit

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Description
Spécification
Comment utiliser
FAQ
Télécharger

Modular Rocker Switch Mount Brackets for Marine Panels

Build your own marine switch panel instead of forcing your dashboard to fit a fixed, pre-wired layout. The BAYWATT modular rocker switch mount brackets let you create a clean cockpit or centre console panel with the exact number of rocker switches you need.

Use a single holder for a compact one-switch installation, or combine end holders and centre holders to create a 2-way, 3-way, 6-way, 10-way or larger custom switch panel. It is a simple, modular solution for boat dashboards, helm stations, fishing consoles, electrical panels and DIY marine refits.

Build the panel around your boat, not the opposite

Pre-wired switch panels are practical when you want a ready-to-install solution. Modular brackets are different: they give more freedom over the final layout, wiring route and future upgrades. You can position your switches where they make sense, keep the fuse block in a separate accessible location, and expand the panel later when new equipment is added.

Custom cockpit layout: match the available space on your centre console or dashboard.
Expandable system: add more switch positions with centre holders.
Remote fuse block compatible: ideal when circuit protection is installed separately.
Clean professional finish: create a neat rocker switch panel without a full custom mould.
Marine-ready material: ABS-NYLON construction with UV resistance for dashboard use.

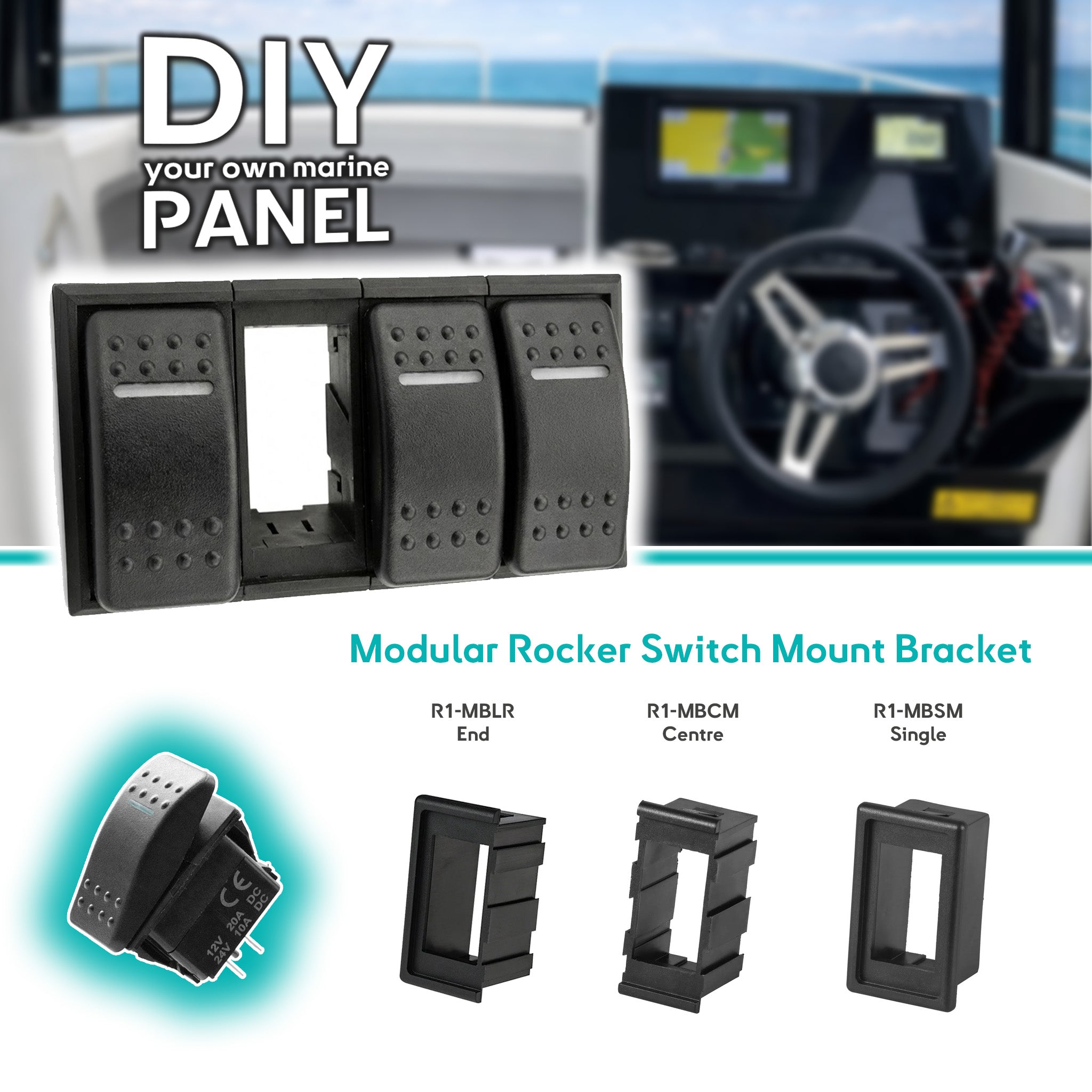

Available bracket modules

Reference	Module type	Approx. size	Use
R1-MBSM	Single holder	36 x 60 mm 1.42 x 2.36 in	For a standalone 1-switch panel
R1-MBLR	End holder	30 x 60 mm 1.18 x 2.36 in	Used at the left and right ends of a multi-switch panel
R1-MBCM	Centre holder	25 x 60 mm 0.98 x 2.36 in	Adds one extra switch position between two end holders

The internal switch opening is approximately 21 x 37 mm / 0.83 x 1.46 in. Maximum recommended panel thickness is 5 mm / 0.20 in.

Panel size guide

For panels with 2 switches or more, use two end holders and add centre holders between them. The total length below is approximate and based on the visible front width of the assembled brackets.

Number of switches	Bracket combination	Approx. length	Approx. height
1 switch	1 x Single holder	36 mm / 1.42 in	60 mm / 2.36 in
2 switches	2 x End holders	60 mm / 2.36 in	60 mm / 2.36 in
3 switches	2 x End + 1 x Centre	85 mm / 3.35 in	60 mm / 2.36 in
4 switches	2 x End + 2 x Centre	110 mm / 4.33 in	60 mm / 2.36 in
5 switches	2 x End + 3 x Centre	135 mm / 5.31 in	60 mm / 2.36 in
6 switches	2 x End + 4 x Centre	160 mm / 6.30 in	60 mm / 2.36 in
7 switches	2 x End + 5 x Centre	185 mm / 7.28 in	60 mm / 2.36 in
8 switches	2 x End + 6 x Centre	210 mm / 8.27 in	60 mm / 2.36 in
9 switches	2 x End + 7 x Centre	235 mm / 9.25 in	60 mm / 2.36 in
10 switches	2 x End + 8 x Centre	260 mm / 10.24 in	60 mm / 2.36 in

Installation notes

These brackets are supplied without a seal. For marine dashboards, cockpits or exposed installations, apply a suitable sealant between the bracket and the mounting surface to reduce water ingress behind the panel. The final sealing quality depends on the dashboard cut-out, surface preparation and installation method.

The brackets are intended for panels up to 5 mm / 0.20 in thick. Before cutting your dashboard, check the total assembled length, switch position and rear clearance for terminals and wiring.

Spécification

Technical specifications

Product type	Modular rocker switch mounting bracket / switch holder
Application	Boat dashboard, centre console, cockpit panel, 12V/24V marine electrical control panel
Material	ABS-NYLON
UV resistance	UV resistant material for dashboard and cockpit use
Colour	Black
Compatible switch opening	21 x 37 mm / 0.83 x 1.46 in
Single holder size	36 x 60 mm / 1.42 x 2.36 in
End holder size	30 x 60 mm / 1.18 x 2.36 in
Centre holder size	25 x 60 mm / 0.98 x 2.36 in
Maximum panel thickness	5 mm / 0.20 in
Seal / gasket	No seal included — sealant recommended for exposed marine installations
Wiring	Bracket only — switches, wiring and circuit protection selected separately
Panel configuration	1-way with single holder, or 2-way and above using end holders plus centre holders
