You find the perfect spot to mount your relay. Under the helm. Behind the dash. Near the bilge pump. Inside the fender well. Then a few months later, the relay fails. Corrosion on the contacts. Moisture in the coil. A seized socket.
Standard automotive relays were not designed for wet or outdoor environments. Sealed waterproof relays were.

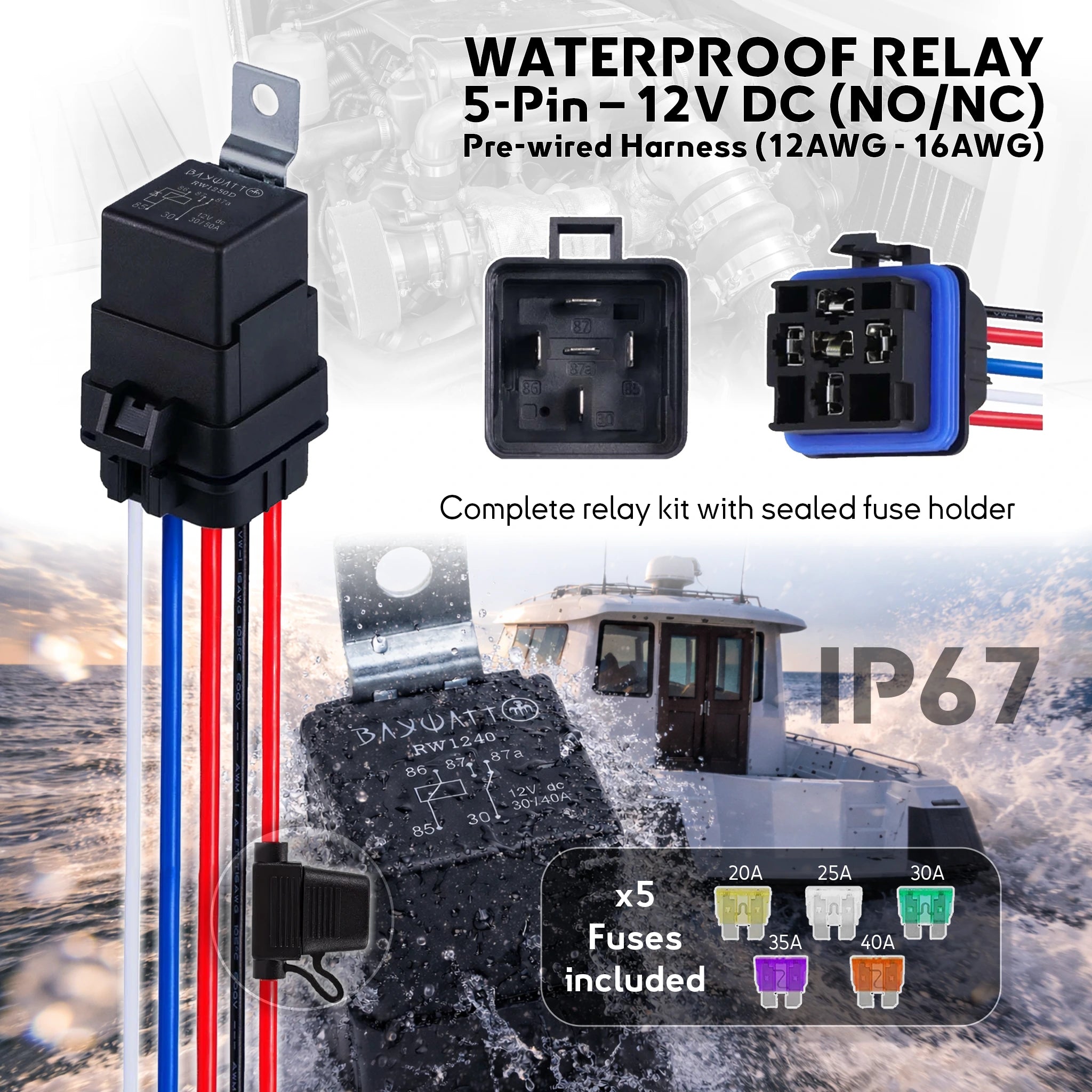

A waterproof relay, also called a sealed relay, marine relay, IP67 relay or weatherproof relay, is an electromechanical switch designed to operate reliably in damp, wet or salt-air environments where a standard open relay would corrode, arc or fail prematurely.
Two variants cover most 12V and 24V outdoor installations: the standard sealed relay and the sealed relay with built-in flyback diode. This guide explains both, tells you when each is appropriate, and covers wiring, specs and troubleshooting.
Contents
- 1. Why a standard relay fails outdoors
- 2. What makes a relay waterproof
- 3. IP ratings explained
- 4. Two types: standard and with diode
- 5. Standard sealed relay
- 6. Relay with flyback diode
- 7. Standard or diode: when to choose which
- 8. Typical applications
- 9. Key specs to check before buying
- 10. Wiring a waterproof relay
- 11. Troubleshooting tips
- 12. Common names
1. Why a standard relay fails outdoors
Open-frame automotive relays are built for dry or protected locations. They are not the best choice when the relay can be exposed to:
- salt air and condensation on boats,
- rain and splashwater on roof racks, trailers and outdoor panels,
- pressure washing on 4x4 skid plates, fender wells and engine bays,
- humidity cycles in bilge areas, camper basements and van floors.
When moisture reaches the internal contacts, corrosion builds up over time. Contact resistance increases. The relay may become intermittent, generate heat or weld shut under demanding loads. The coil windings can also absorb moisture, causing slow failure or unreliable switching.
Salt air makes this worse. A relay mounted in the cockpit, near a bilge area or close to the engine of a saltwater boat can fail quickly if the housing and socket are not sealed.
Simple rule: if the relay will be exposed to moisture, condensation, splashwater, washdown or salt air at any point in its life, use a sealed waterproof relay. The cost difference is small. The reliability difference is not.
2. What makes a relay waterproof
A sealed relay adds environmental protection at several critical points:
- Sealed housing: the plastic case is sealed to reduce liquid and dust ingress,
- Protected coil: the electromagnetic coil is enclosed so moisture cannot easily reach the windings,
- Protected contacts: the switching contacts sit inside a closed cavity, away from salt spray and condensation,
- Sealed socket or wiring: many waterproof relay installations use a sealed socket, gasket or pre-wired harness to protect the connection area.
The result is a relay you can mount in locations where a standard open relay would be a weak point: behind a cockpit panel, near a bilge pump, under a vehicle, inside an outdoor electrical box or behind a 4x4 bumper.
Important detail: the relay body can be waterproof while the surrounding connections are not. The socket, fuse holder, splices and cable entries must also be protected if you want the complete circuit to survive outdoors.
3. IP ratings explained
IP stands for Ingress Protection. The number tells you how well the component is sealed against solids, shown by the first digit, and liquids, shown by the second digit.
| IP rating | Dust protection | Water protection | Typical use |
|---|---|---|---|
| IP54 | Limited dust protection | Splashwater from any direction | Sheltered indoor panels |
| IP65 | Dust-tight | Water jets from any direction | Outdoor panels, 4x4 splash areas |
| IP67 | Dust-tight | Temporary immersion up to 1 m | Marine, bilge-adjacent, underbody and outdoor wiring |
| IP68 | Dust-tight | Continuous or deeper immersion according to manufacturer rating | Submersible or high-exposure applications |
For most boat, van, RV and 4x4 installations, IP67 is the standard target. It handles rain, washdown, condensation and short-term immersion. IP68 is worth considering for submerged or very high-exposure circuits.
4. Two types: standard sealed and with diode
Waterproof relays for 12V and 24V DC come in two main variants. The external appearance is often very similar. The real difference is inside the housing, on the coil circuit.
| Type | How it works | Best use |
|---|---|---|
| Standard sealed relay | Conventional waterproof relay with sealed housing and no diode across the coil. | Simple switch-controlled circuits: lights, pumps, horns, sockets and accessories. |
| Sealed relay with flyback diode | Same sealed relay construction, with a diode across the coil to suppress voltage spikes. | Electronic control circuits: timer modules, control boards, BCMs, ECUs and microcontroller outputs. |
Quick logic: use the standard sealed relay for simple manual switching. Use the diode version when an electronic module drives the relay coil.
5. Standard sealed relay
A standard sealed relay is a conventional electromechanical relay in a weatherproof housing. You apply voltage to the coil, the armature moves, and the contacts switch. Remove the coil voltage, and the spring returns the armature.
This is the right choice for the majority of 12V and 24V installations: lighting circuits, horn controls, auxiliary accessories, water pumps controlled by a simple toggle or push button, bilge pump manual override, and similar loads.
Advantages:
- No polarity constraint on the coil terminals — either wire can be positive or negative,
- simple to wire and replace,
- works with manual switches without concern for coil polarity,
- good choice when the wiring may be modified later by a non-specialist.
Limitation: when the coil is de-energised, it briefly generates a reverse voltage spike, known as back-EMF. In most simple switch installations this is harmless. But if the control circuit uses sensitive electronics — a timer module, control board, BCM or ECU output — that spike can cause issues over time. In that case, use the diode version.

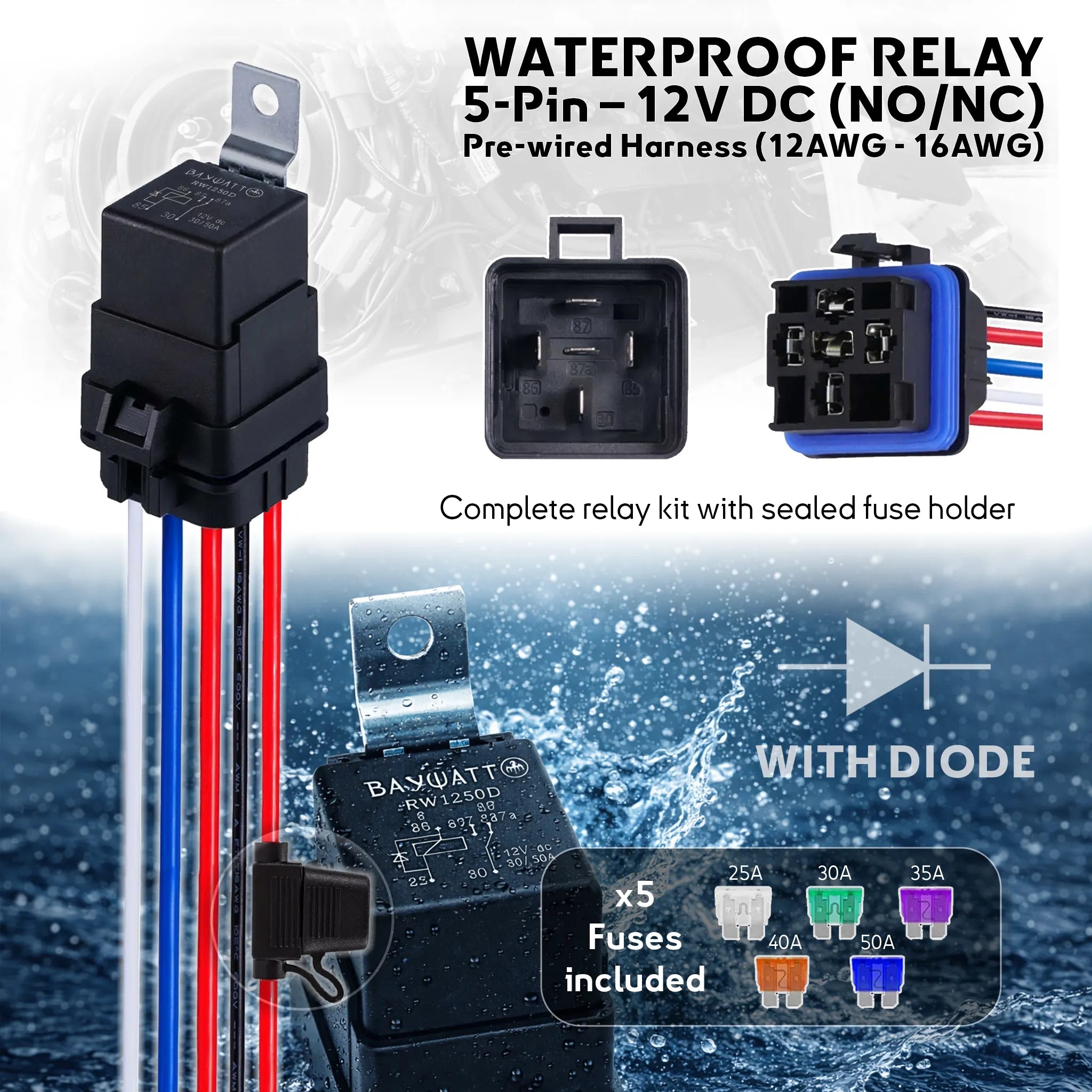

6. Sealed relay with built-in flyback diode
A relay with a built-in flyback diode — also called a suppression diode, freewheeling diode or clamping diode — adds a diode connected across the coil inside the sealed housing.
When the coil is de-energised, the diode provides a path to absorb the reverse voltage spike instead of letting it travel back through the control wiring. This protects the control circuit: the switch, the timer module, the microcontroller output, or any other component driving the coil.
Critical: the coil terminals are polarity-sensitive. The diode only works in one direction. If you reverse the coil connections, the diode can short-circuit the supply and blow a fuse or damage the relay. Always confirm the wiring diagram before connecting a diode-type relay.
| Feature | Standard sealed relay | Sealed relay with flyback diode |
|---|---|---|
| Housing | Waterproof sealed housing | Waterproof sealed housing |
| Coil polarity | Not sensitive | Polarity-sensitive — must be wired correctly |
| Back-EMF suppression | None | Yes — diode absorbs the voltage spike |
| Protects | The load circuit | Also the control circuit |
| Best for | Simple switch control | Electronic modules, timer boards, BCMs and ECU outputs |
7. Standard or diode: when to choose which
| Situation | Best choice |
|---|---|
| Simple switch controls the relay coil: toggle, push button or ignition feed | Standard sealed relay. |
| Relay coil is driven by an electronic module, timer, control board or ECU | Sealed relay with flyback diode. |
| You are unsure what is driving the coil | Diode version is safer for electronics, but polarity must be correct. |
| Installation is polarity-critical and correct wiring cannot be guaranteed | Standard sealed relay — no polarity risk on the coil. |
| Replacing an existing relay in a system designed for a diode type | Sealed relay with flyback diode — match the original specification. |
The diode version is the professional default in any installation driven by electronics. The only reason to avoid it is if you cannot guarantee correct polarity on the coil terminals.
8. Typical applications
Marine: bilge and deck circuits
Bilge pump override relays, anchor light control, cockpit socket feeds and saltwater washdown pump circuits — all mounted where a standard relay may fail quickly.
Marine: below-deck panels
Even inside the cabin, a boat hull generates condensation in winter. A sealed relay behind the main panel lasts significantly longer than an open-frame equivalent.
Vans, RVs and campers
Underslung water pump feeds, exterior light control, slide-out circuits, solar accessories and heating relay drivers all benefit from waterproof housings in damp storage areas.
4x4 and off-road builds
Underbody lighting, winch auxiliaries, air compressor feeds and bumper wiring get pressure washed, river-crossed and mud-clogged. IP67 or better is standard in serious builds.
Irrigation and outdoor automation
Pump control, solenoid valve drivers and outdoor lighting relays are routinely exposed to rain and sprinkler overspray. A sealed relay reduces the annual replacement cycle.
Solar and battery systems
Outdoor battery enclosures and solar combiner boxes are often ventilated, meaning humidity and condensation are present. Sealed relays improve service life in these applications.
9. Key specs to check before buying
Before choosing a waterproof relay, verify these parameters against your installation:
| Parameter | What to check |
|---|---|
| IP rating | IP67 for most outdoor and marine work. IP68 for submerged or high-exposure circuits. |
| Coil voltage | Must match your system: 12V, 24V or other. Applying the wrong voltage can burn the coil. |
| Contact rating | Amperage and voltage the contacts can switch. Example: 50A at 12V DC. Always check for DC rating specifically. |
| Contact type | NO, NC or changeover. A 5-pin changeover relay gives terminal 87 and 87a, which covers more wiring options. |
| Diode version | Recommended if the coil is driven by any electronic module, timer, BCM or ECU output. |
| Terminal type | Blade terminals in a waterproof socket, or pre-wired leads. The socket and cable joins must be protected too. |
| Operating temperature | Relevant for engine bay or extreme-climate installations. Check the rated range before mounting near heat sources. |
Note on DC contact rating: DC switching is harder on relay contacts than AC switching at the same current. Always confirm the relay is rated for DC at the current and voltage of your installation — not just the general load rating on the label.

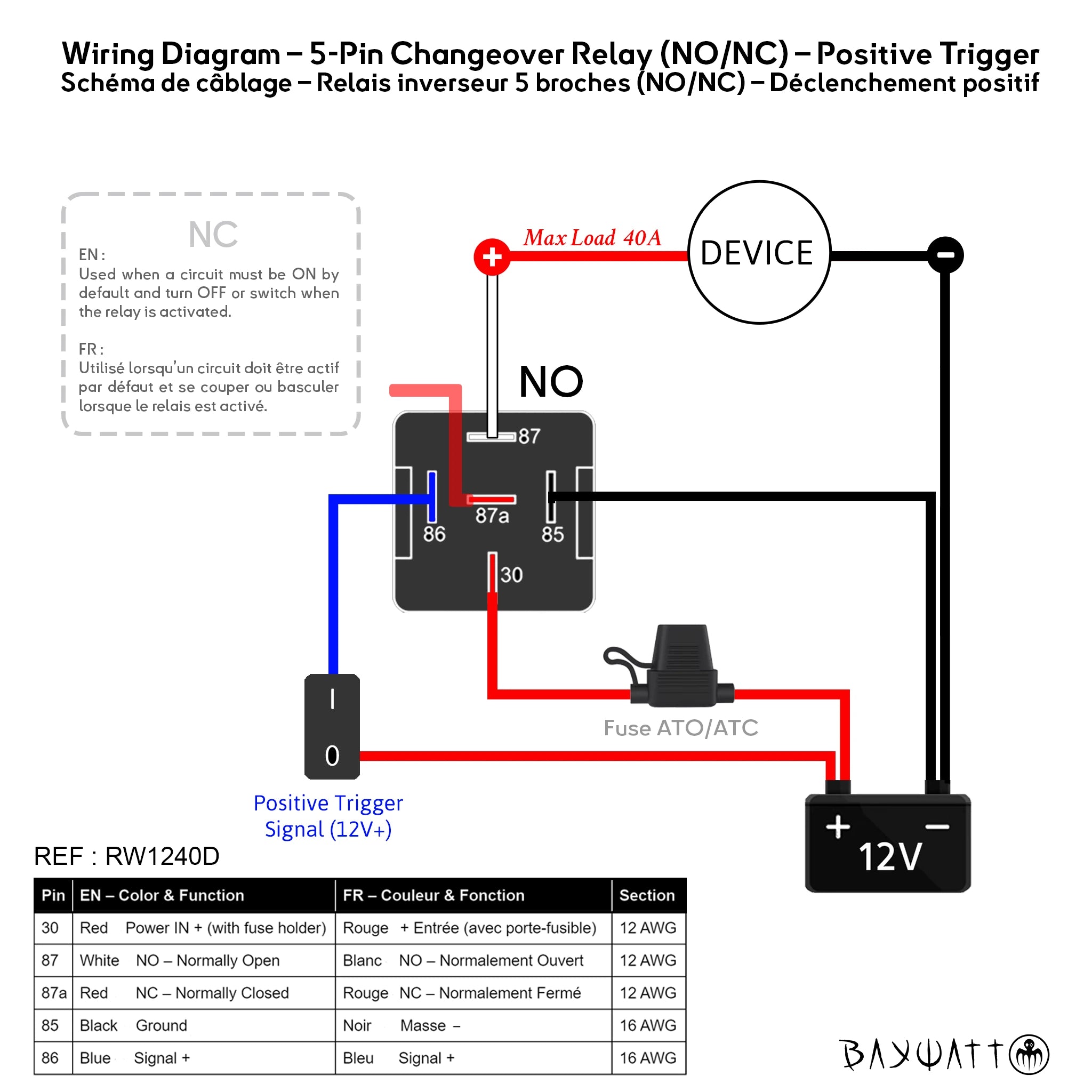

10. Wiring a waterproof relay
A standard waterproof relay follows the same 5-pin layout as a common automotive relay:
- Pin 85 and 86: coil terminals — your switch or control module,
- Pin 30: main input — fused positive supply from battery or fuse block,
- Pin 87: normally open output — load connects here for the switched circuit,
- Pin 87a: normally closed output — use if you need the circuit live when the relay is off.
For a typical switching circuit: 30 → fused positive supply / 87 → load / load return → ground / 85 → positive control signal / 86 → ground.
For diode-type relays: identify which coil pin is positive before connecting. Reversing the coil wires can short-circuit through the diode. Always confirm the wiring diagram for the specific model.
Pro tip: the relay may be sealed, but the connections around it often are not. Use IP-rated connectors or adhesive-lined heat shrink on all joints. Moisture can track along wiring and reach unsealed connections even when the relay itself is protected.
11. Troubleshooting tips
The relay does not switch
Check the coil voltage at pins 85 and 86 under load. Check ground continuity. Check the fuse on pin 30. Confirm the coil voltage matches the relay specification: 12V coil on a 12V system, 24V coil on a 24V system.
The relay clicks but the load does not operate
Measure voltage at pin 87 with a meter while the relay is energised. If voltage is present but the load does not run, the fault is in the load circuit or the negative return path, not the relay.
The diode-type relay blows a fuse immediately when the coil is energised
The coil polarity is likely reversed. The diode is conducting directly across the supply. Check the wiring diagram, identify coil positive and coil negative, and swap pins 85 and 86 if required.
The relay worked correctly, then failed after a season
Inspect the connector or socket for corrosion. Even with a sealed relay body, an unprotected connector lets moisture reach the contacts. Use a sealed socket, waterproof connector or adhesive-lined heat shrink on the joins.
The control board or timer module fails repeatedly
If the relay is standard, without diode, and is driven by a module, back-EMF from the coil may be damaging the module output. Switch to the diode version, or add an external suppression diode across the coil wiring close to the relay.
12. Common names for this type of relay
Waterproof relays are sold and searched under many different names. The function is the same; the terminology varies by country, application and industry.
Protect your circuits where it matters most
A waterproof relay is a small part. In a marine, outdoor or mobile installation, it is one of the most important choices you can make. The wrong relay in the wrong environment is a future failure point. The right sealed relay, correctly rated and correctly wired, gives the installation a much better chance of lasting.
Two relay types cover most installations: a standard sealed relay for simple switch-controlled circuits, and a diode-protected relay when the coil is driven by electronics.
