Waterproof 5-Pin Relay Kit for Boats – IP67, 12V, 50/30A NO/NC, Fused Pre-Wired Harness

Baywatt's changeover relay is a sealed IP67 waterproof relay kit designed for wet, vibration-heavy marine environments. This version uses a higher-capacity 5-pin SPDT (NO/NC) changeover relay, rated up to 50A on the NO contact, combined with a pre-wired sealed socket and a waterproof inline fuse holder. It allows high-current equipment to be controlled safely without routing heavy current through a small dash switch.

Marine-ready sealing: IP67 relay + sealed socket interface for spray and moisture exposure.
High-current changeover logic: NO 50A (87) / NC 30A (87a) for standard ON control or “default ON” circuits.
Fused battery feed included: waterproof inline fuse holder pre-installed on the power input.
Pre-wired harness: 12 AWG power wires + 16 AWG trigger/ground wires for fast, clean wiring.
5 fuses included: 20A / 25A / 30A / 35A / 40A (ATO/ATC blade format).

Typical marine uses

Use the relay when you want a low-current switch (helm panel, push button, controller output) to drive a higher-current device with proper protection.

High-power deck / spreader / underwater lights
Horn / siren
Washdown, livewell, accessory pumps
Blowers / fans
Accessory power switching (protected remote high-current path)

NO / NC – Changeover behavior

87 (NO – Normally Open, 50A): OFF by default, turns ON when the relay coil is energized.
87a (NC – Normally Closed, 30A): ON by default, turns OFF when the relay coil is energized.

This is useful for standard “turn ON when triggered” circuits (NO), and also for “turn OFF when triggered” logic (NC) such as safety/fail-safe or default-ON loads.

Pinout & wire colors (RW1250)

Positive trigger control: apply +12V to 86 to energize the relay coil, and connect 85 to battery negative.

Pin	Wire color	Function	Wire gauge
30	Red	Power input (Battery +) via waterproof fuse holder	12 AWG (≈ 3 mm²)
87	White	NO output (to device) – 50A max	12 AWG (≈ 3 mm²)
87a	Red	NC output – active when relay is not energized – 30A max	12 AWG (≈ 3 mm²)
85	Black	Ground / Battery negative (coil −)	16 AWG
86	Blue	Trigger signal +12V (coil +) from switch/controller	16 AWG

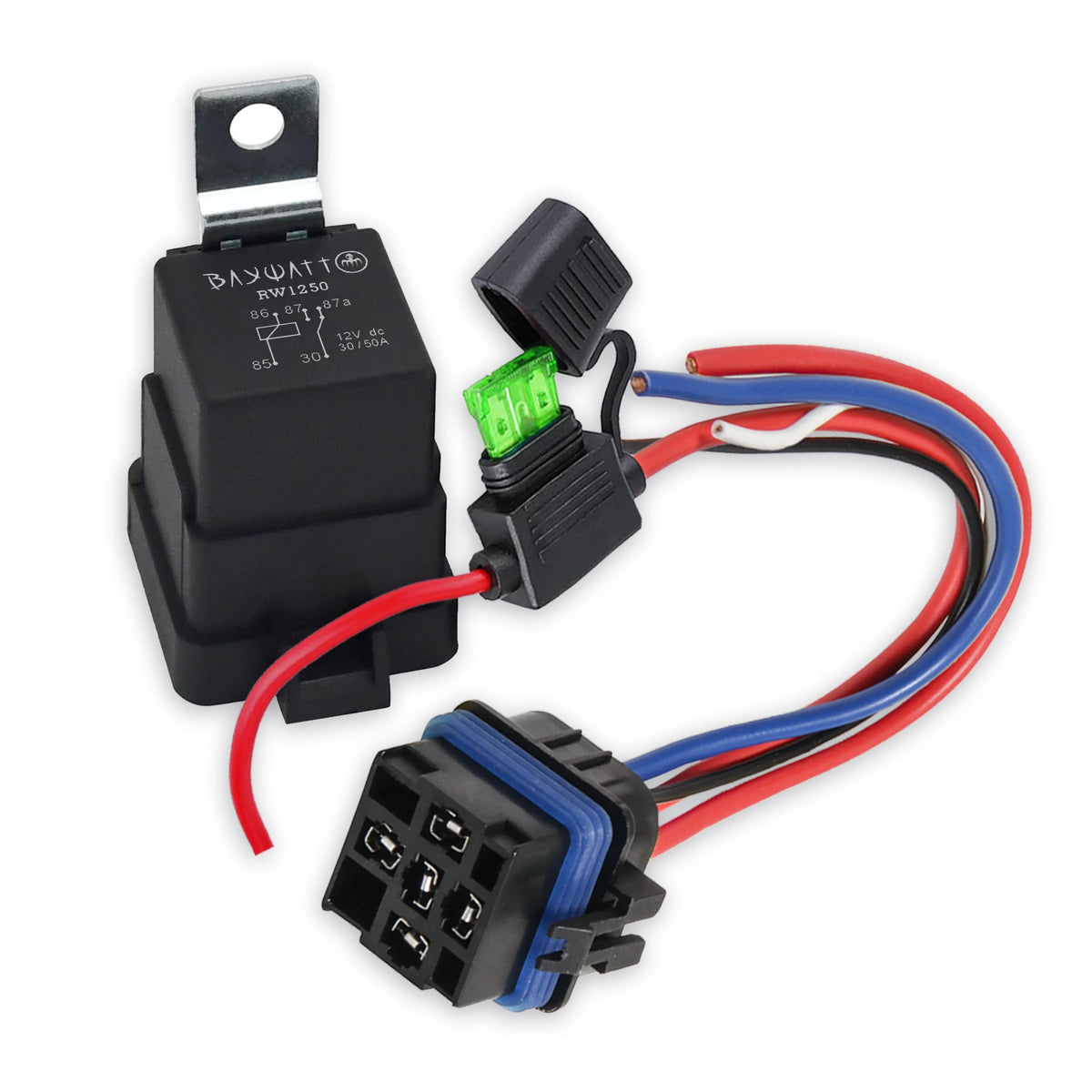

What’s included

1× IP67 sealed 5-pin relay (SPDT changeover, NO/NC)
1× sealed socket with pre-wired harness
1× waterproof inline fuse holder (pre-installed on the battery feed)
5× blade fuses: 20A / 25A / 30A / 35A / 40A
Mounting bracket (as shown)

Installation notes (marine wiring)

Select the fuse value based on the device and cable sizing, not “because the relay can do 50A”.
Keep the fused feed (pin 30) as close to the power source as practical.
For water-resistant harness splices, use adhesive-lined heat shrink butt connectors and proper crimping.
NC (87a) is optional: leave it insulated if unused.

Specification

Technical specifications

Reference	RW1250
Relay type	5-Pin SPDT changeover relay (NO/NC)
System	12V DC (switching voltage up to 14V DC)
Contact rating	NO (87): 50A max / NC (87a): 30A max
IP rating	IP67 (sealed relay + sealed socket interface)
Operating temperature	−40°C to +85°C
Wire gauges	3 × 12 AWG power wires (≈ 3 mm²) + 2 × 16 AWG control wires
Wire mapping	30 Red (fused input), 87 White (NO), 87a Red (NC), 85 Black (ground), 86 Blue (trigger +12V)
Dimensions (approx.)	35 × 40 × 58 mm (L × W × H, with base)
Harness lengths (approx.)	Socket pigtails ~10 cm; fused lead ~20 cm
Fuse format	ATO/ATC blade fuse
In the box	Relay + sealed socket & harness + waterproof inline fuse holder + 5 fuses (20/25/30/35/40A)
