ATO/ATC Fuse Block with Led Indicator 6-way | 12-way

SKU: ATCH6
10.50€
10.50€
Size: Fuse holder 6-way
Subtotal: 10.50€

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

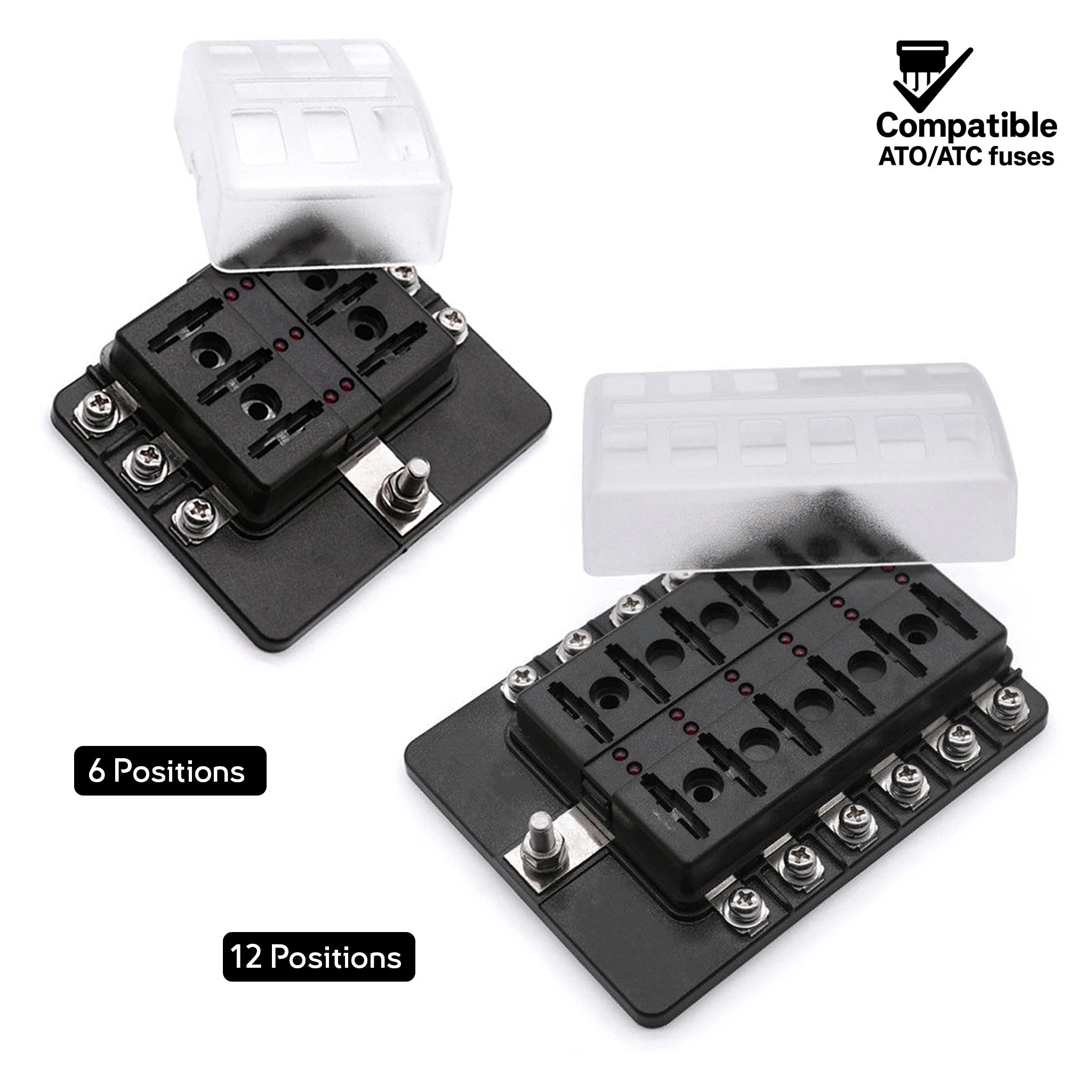

✨ Available in 2 versions: 6-way or 12-way

🛡️ Advanced Protection for Electronic Components

These ATC/ATO fuse holders with screw terminals and LED indicators operate at a maximum continuous current of 100A, with a maximum of 30A per circuit. Specifically designed to safeguard electronic components, they provide a reliable and secure solution for your marine electrical system.

🕵️‍♂️ Instant Fuse Status Monitoring and Security:

These fuse holders are designed for instant monitoring. Equipped with LED indicators and a transparent cover, they allow for quick visual checks, facilitating quick detection of blown fuses without delay. This feature really helps for fast decision-making, especially crucial during navigation or critical operations.

🔄 Versatile Configuration with Negative Bus-Bar Option:

For even greater versatility, consider the version with a negative bus-bar. This option allows for centralized connection of negative cables, simplifying wiring and offering more efficient energy management in your marine electronic system.

SKU ATCH6 ATCH12
Fuse Type ATC/ATO Fuse ATC/ATO Fuse
Number of Fuse Slots 6 12
Main Line Terminal M5 Stud M5 Stud
Main Wire #4-6 #4-6
Single Wire Terminal M4 Threaded Stud M4 Threaded Stud
Single Wire #12-16 #12-16
Voltage 12 - 36 Volt DC 12 - 36 Volt DC
Total Max Continuous Current Rating 100A 100A
Max Current Rating Per Way 30A 30A
