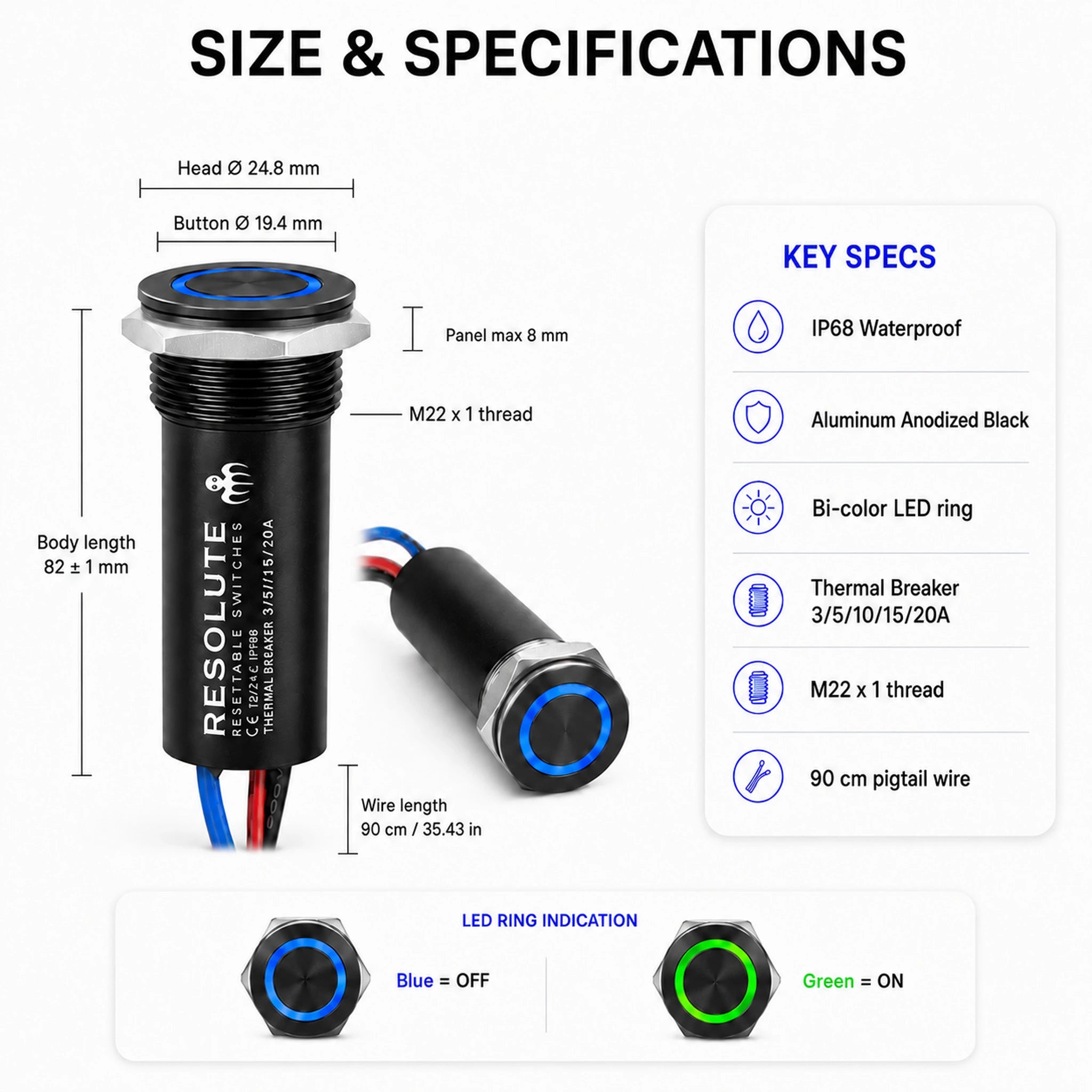

Dimensions du bouton poussoir marin RESOLUTE : filetage M22 × 1, corps de 82 mm, câble de 90 cm et anneau LED bleu ou vert.

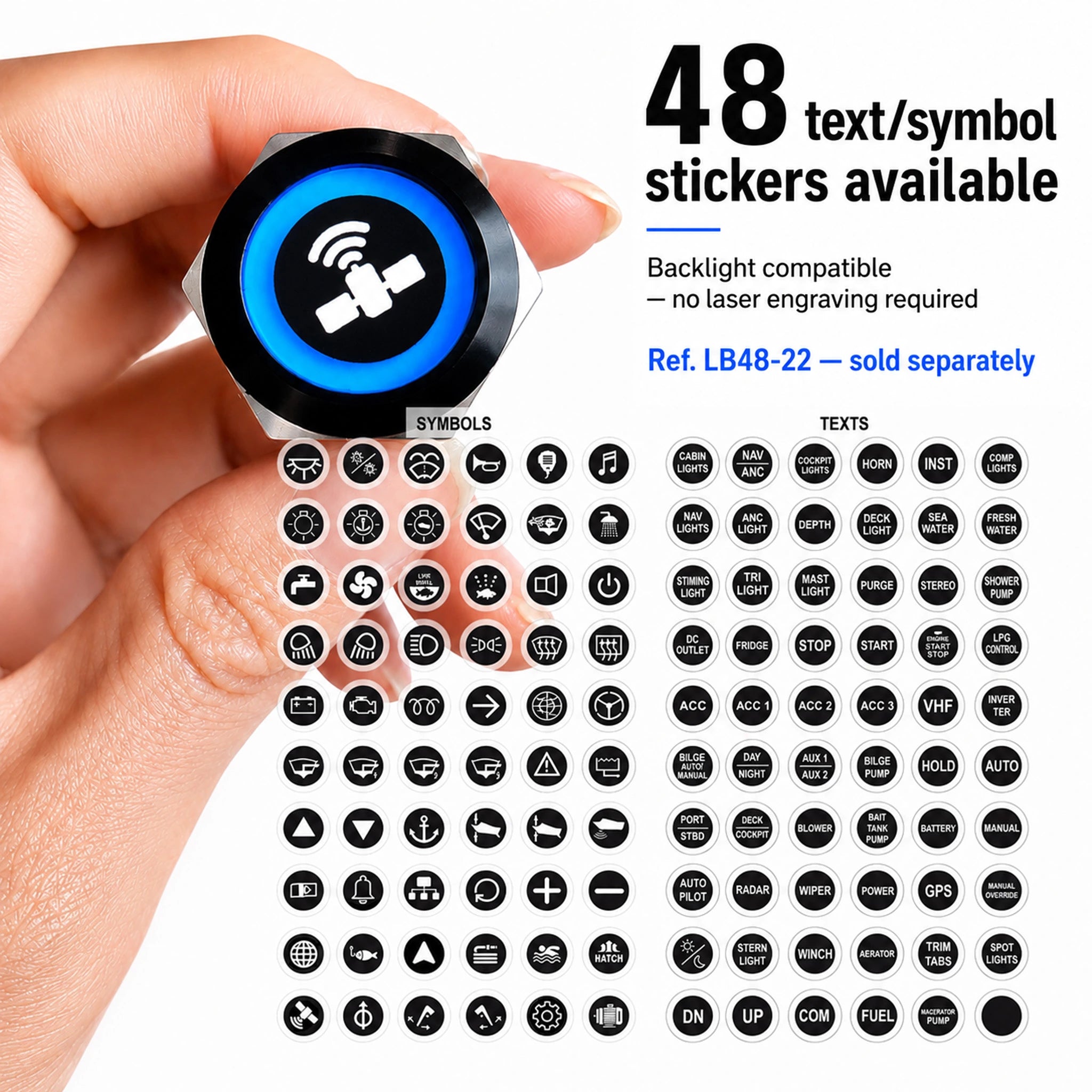

Bouton poussoir RESOLUTE avec symbole rétroéclairé et stickers texte ou icône compatibles sans gravure laser
Yacht AC/DC electrical panel with BAYWATT RESOLUTE push button switches, blue and green LED rings and digital voltage displays.

RESOLUTE | AC/DC Marine Push Button Switches – Independent 12V LED

SKU: RESOLUTE-03A-LT
23.40€
23.40€
Function: Latching ON-OFF
Rating: 3A
Subtotal: 23.40€

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

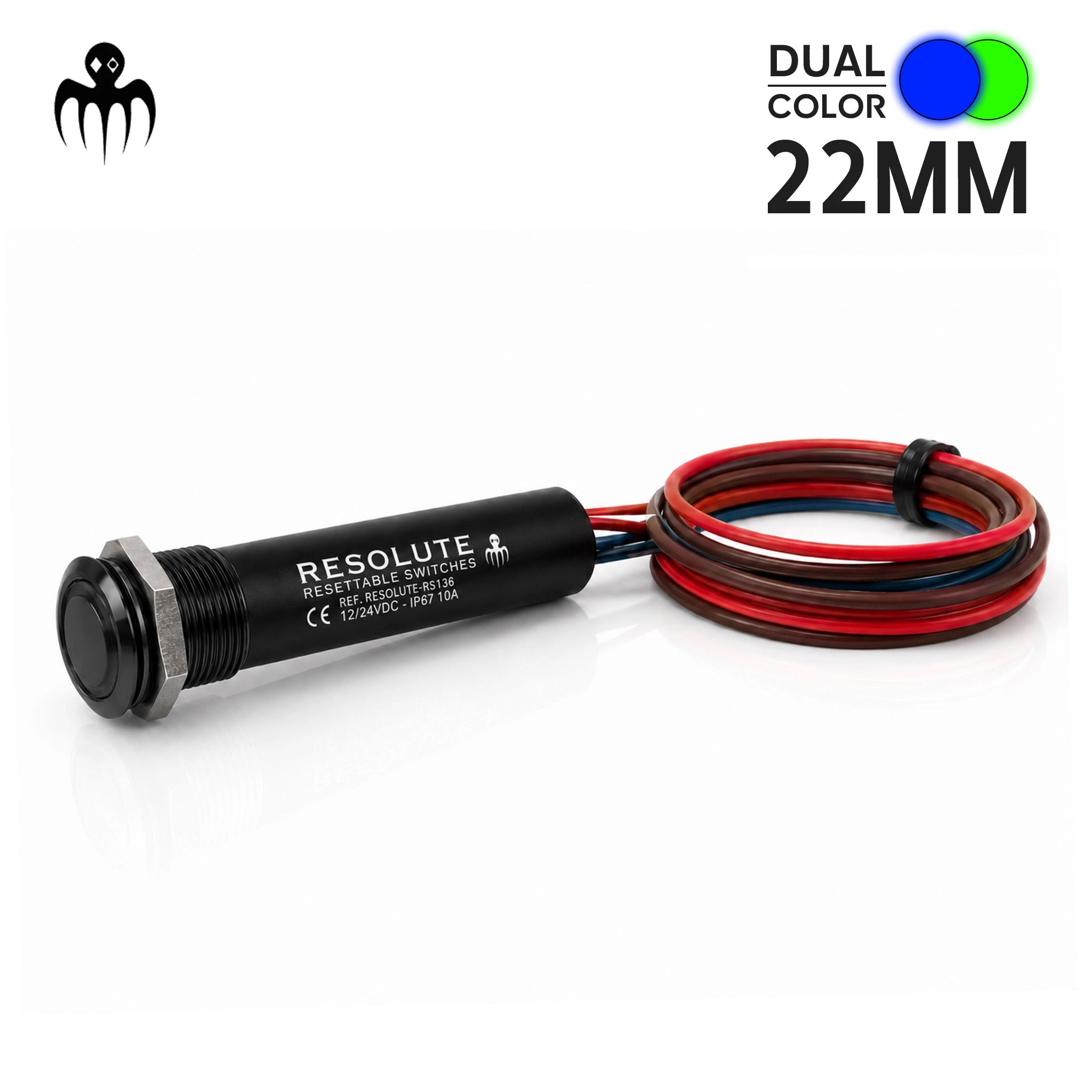

BAYWATT RESOLUTE — AC/DC Marine Push Button Switches with Independent 12V LED

  • BAYWATT
  • 22mm / 7/8"
  • 3A–20A
  • AC/DC switching · separate 12V DC LED
  • Thermal Protection
  • IP68 Front
  • Fixed Blue or Green LED

The BAYWATT RESOLUTE Series is a range of 22mm resettable marine push button switches with integrated thermal overload protection, designed for boat dashboards, helm stations, center consoles, refit panels and custom AC panels and 12V, 24V or nominal 48V DC boat electrical systems, with a separately powered 12V DC LED.

RESOLUTE combines the function of a marine push button switch with a thermal protection element inside one compact control. Instead of using a separate switch and push-to-reset thermal breaker, the same 22mm unit can control the load, provide LED illumination and disconnect the circuit during a sustained overload condition.

Standard versions feature a black anodized aluminium front, IP68 front protection, a 90cm / 35.4in pre-wired harness and a single-colour LED ring. Normal LED polarity (red to +, black to −) gives blue; reversed LED polarity (black to +, red to −) gives green. The colour remains fixed for the selected polarity.

AC and DC Panel Applications — Independent 12V LED Control

One marine switch format for AC panels and DC boat systems. RESOLUTE's single-colour LED version combines thermal overload protection with a separately wired LED circuit. The switched load and the 12V DC illumination do not need to use the same supply voltage.

Custom AC Panels

Control AC loads within the selected model's contact ratings while supplying the LED separately from a suitable 12V DC supply. This lets panel builders manage illumination individually without powering the LED from the AC load circuit.

12V, 24V and 48V DC Boats

Build accessory and control panels for conventional boats and nominal 48V electric-boat systems. Keep LED illumination on a separate 12V DC supply. Select the switch for the actual maximum system voltage and the connected load; this is not a propulsion battery master switch.

Individually Controlled LED

Switch each LED supply independently through suitable external wiring or a controller. Blue or green is selected by LED-wire polarity. Here, independently controlled or “addressable” means control through separate wires; no digital address or built-in communication protocol is specified.

Wiring warning: the LED requires 12V DC even when the switched circuit is AC or 48V DC. Never apply AC, 24V or 48V directly to the LED wires. Keep AC wiring and low-voltage LED wiring appropriately separated. AC/DC compatibility does not imply an unlimited voltage rating: confirm the selected model's rated voltage, current and breaking capacity before installation. Retain the upstream short-circuit protection and any AC residual-current protection required by the installation.


Highlights & Key Features

Switching and resettable thermal protection in one 22mm control. RESOLUTE provides a clean solution for marine dashboards where circuit control, LED indication and overload protection would otherwise require several separate components.

  • 22mm marine push button format for compact dashboards
  • Integrated thermal overload protection
  • Latching ON/OFF and momentary ON versions
  • Ratings from 3A to 20A depending on function
  • AC/DC switching · separate 12V DC LED versions
  • IP68 front protection
  • Fixed blue or green LED illumination
  • 90cm / 35.4in pre-wired cable
  • Standard black anodized aluminium front

Important: RESOLUTE uses thermal overload protection. Trip time therefore depends on the amount of overload and the thermal condition of the switch. Select the amperage according to the connected equipment and cable size — never increase the rating simply to prevent the switch from tripping.


22mm Marine Push Button with Integrated Thermal Protection

Integrated Circuit Protection RESOLUTE monitors the current flowing through the controlled circuit. During a sustained overload, its thermal mechanism disconnects the load according to the switch rating and overload level.
Automatic Thermal Reset Once the overload is removed and the internal thermal element cools, the protection mechanism returns to normal operating condition without requiring replacement of a fuse.
Compact 22mm Installation Switching, LED illumination and thermal protection are integrated into one compact control, helping reduce the number of components required on a marine electrical panel.
Selectable Fixed-Colour IlluminationChoose blue or green by the polarity of the separate LED wires. This version does not automatically change colour with switch state.

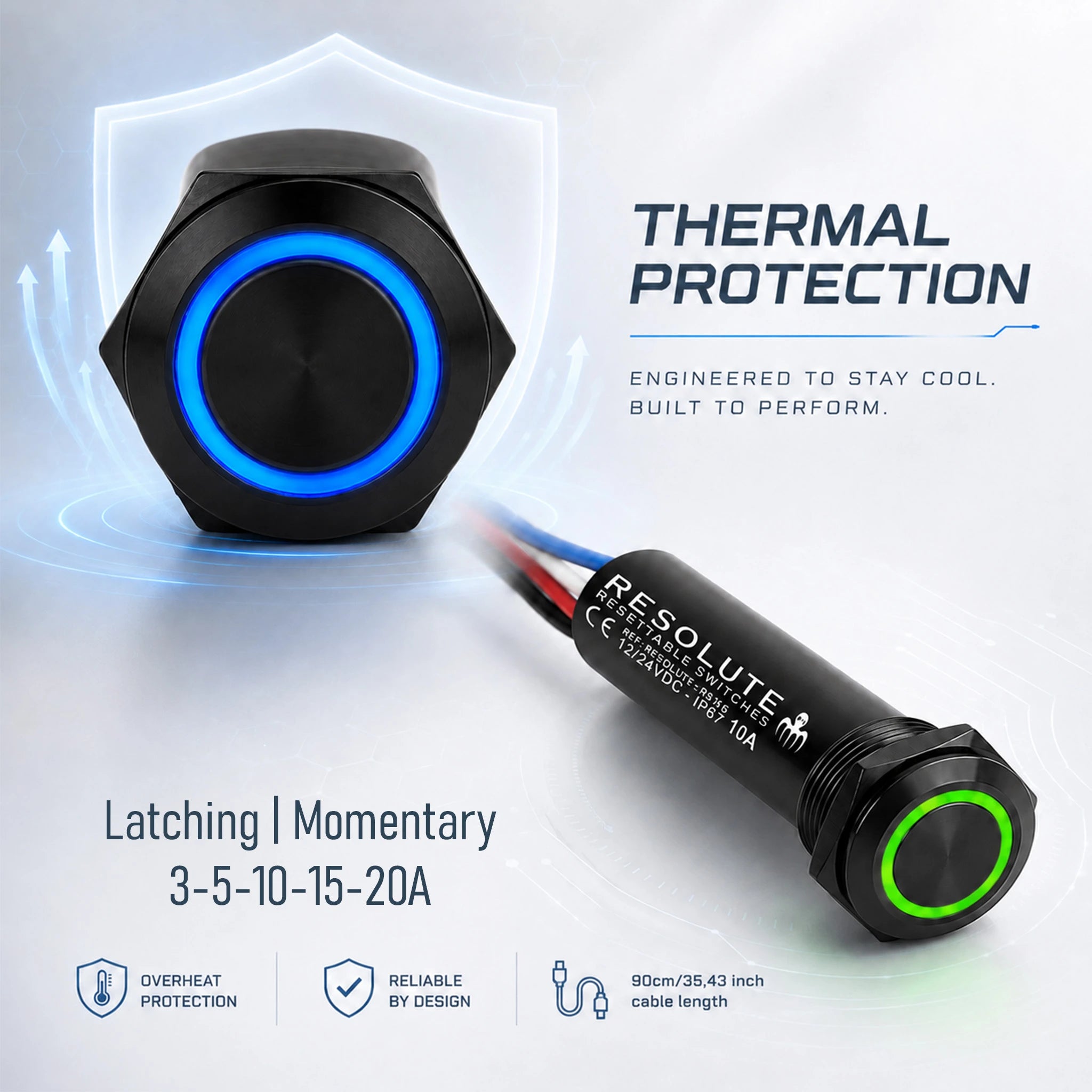

Choose Your RESOLUTE Marine Switch Function

1

ON/OFF Latching

  • 3A / 5A / 10A / 15A / 20A
  • Press once: ON
  • Press again: OFF
  • Integrated thermal overload protection
  • Fixed blue or green LED
  • AC/DC switching · separate 12V DC LED

Designed for lighting, pumps, fans, electronics and general protected ON/OFF marine circuits.

2

Momentary ON

  • 5A / 10A / 20A
  • ON only while pressed
  • Integrated thermal overload protection
  • Fixed blue or green LED illumination
  • AC/DC switching · separate 12V DC LED
  • Other ratings available for specific projects

Suitable for horn control, manual bilge pump activation, trim commands, relay triggering and other temporary marine electrical functions.


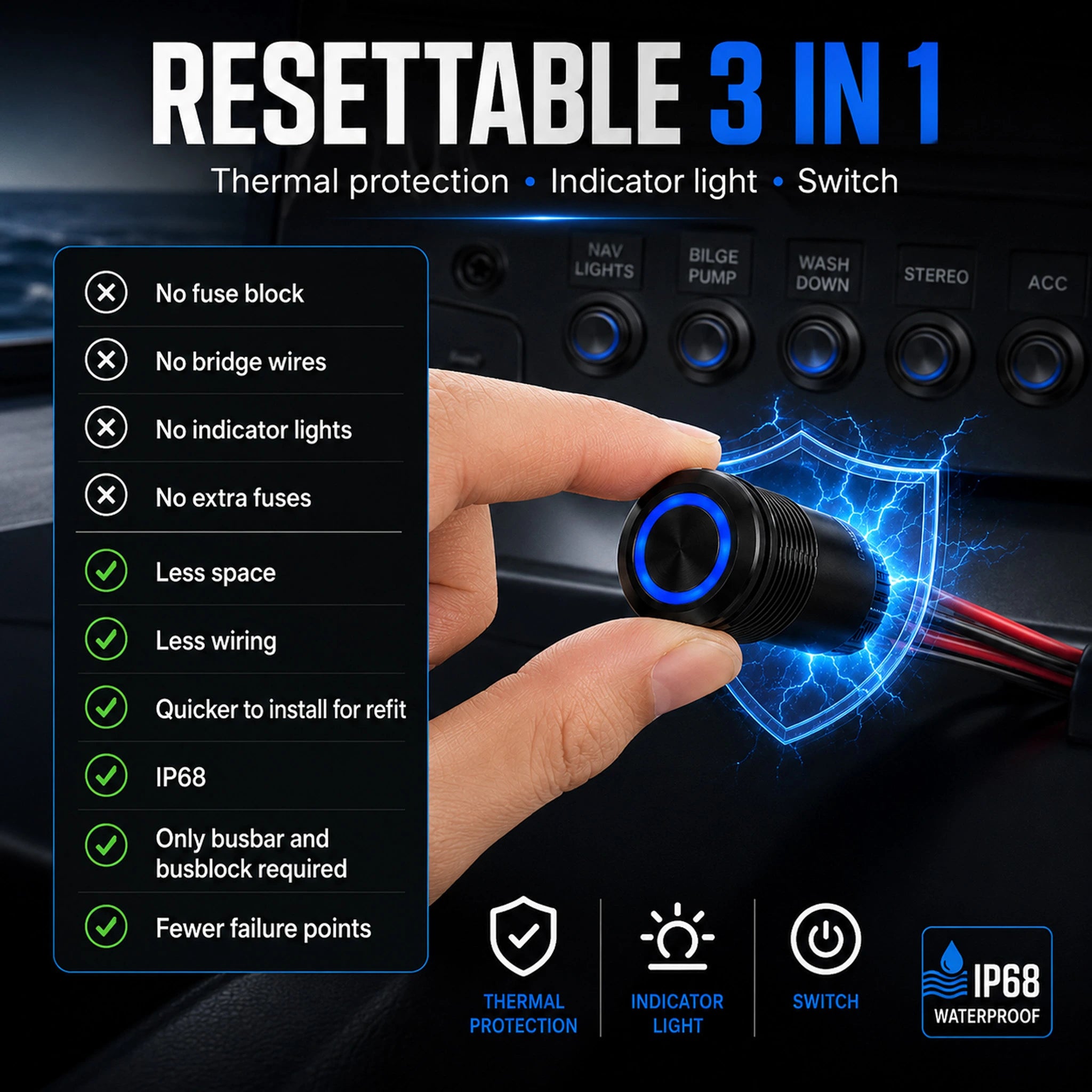

A Modern Alternative to Separate Marine Switches and Thermal Breakers

Traditional boat electrical panels often use one switch to control the equipment and a separate push-to-reset marine circuit breaker to protect the circuit. This works, but requires additional panel space, wiring and components.

RESOLUTE combines these functions into one compact 22mm marine push button. The result is a cleaner dashboard with fewer visible components, while maintaining resettable thermal overload protection.

Traditional Panel
  • Separate ON/OFF switch
  • Separate thermal circuit breaker
  • Multiple mounting holes
  • Additional panel wiring
  • More dashboard space required
RESOLUTE Solution
  • Switch and thermal protection combined
  • Single 22mm mounting hole
  • Integrated LED illumination indication
  • Pre-wired 90cm harness
  • Cleaner OEM-style installation

How RESOLUTE Thermal Overload Protection Works

RESOLUTE uses a thermal protection mechanism rather than electronic current limiting. As current rises above the selected switch rating, heat builds inside the protection element.

A moderate overload can therefore be tolerated for a limited period, while a much larger overload causes the circuit to disconnect much faster. Once the excessive current is removed and the thermal element cools, the switch can return to normal operation.

Switch Rating Approx. Long-Time Current 1.5× Rating Approx. 2× Rating Reset
5A 6A 7.5A — disconnects in approx. 150–270 sec. 10A — approx. 5 sec. Automatic after cooling
10A 12A 15A — disconnects in approx. 150–270 sec. 20A — approx. 5 sec. Automatic after cooling
15A 18A 22.5A — disconnects in approx. 150–270 sec. 30A — approx. 5 sec. Automatic after cooling
20A 24A 30A — disconnects in approx. 150–270 sec. 34A — approx. 5 sec. Automatic after cooling

Choose the rating according to the protected circuit. The purpose of RESOLUTE is to disconnect the connected circuit during an excessive current condition. The selected amperage must therefore remain compatible with both the equipment and the installed cable.


Designed for Marine Dashboards, Helm Panels and Boat Refit Projects

RESOLUTE is particularly suited to compact marine switch panels where electrical protection, straightforward operation and clean dashboard design are equally important.

Boat Panels & Helm Controls
  • Center-console switch panels
  • Yacht and sailboat helm stations
  • Custom marine electrical panels
  • Boat dashboard refits
  • Replacement of older breaker panels
  • AC panels and 12V / 24V / nominal 48V DC accessory panels
Typical Protected Circuits
  • Cabin, cockpit and deck lighting
  • Navigation lights
  • Bilge pump manual control
  • Washdown and freshwater pumps
  • Ventilation and blower fans
  • Horn and auxiliary equipment
  • Marine electronics feeds

Single-Colour LED: Choose Blue or Green by Wiring Polarity

RESOLUTE displays one fixed LED colour for a given wiring polarity. It does not automatically change from blue to green when the switch is pressed.

LED wiring Colour when powered
Red LED wire to + / black LED wire to − Blue
Black LED wire to + / red LED wire to − Green

Choose the colour during installation by reversing only the separate red and black LED wires. Do not reverse the main load wiring. Whether the LED is illuminated depends on how its supply is wired; polarity selects its colour, not automatic OFF/ON status logic.

For automatic two-colour indication and a true night mode, choose RESOLUTE II. Its integrated LED logic chipset manages the colour according to switch state and the selected day/night mode.


Pre-Wired for Cleaner Marine Electrical Installations

Every RESOLUTE switch is supplied with a 90cm / 35.4in pre-wired harness, making it easier to route the wiring behind helm stations, center consoles and compact custom boat dashboards.

Typical conductor configuration:

  • 14 AWG main switch conductor
  • 16 AWG thermal / switch conductor
  • 22 AWG red LED wire (normal polarity +)
  • 22 AWG black LED wire (normal polarity −)

For larger custom panels, multiple circuits can be arranged through a dedicated marine bus bar to simplify DC distribution and keep the wiring organised and accessible.


RESOLUTE or DEFIANCE — Which Marine Push Button Should You Choose?

RESOLUTE and DEFIANCE share the same modern 22mm marine push-button philosophy, but their protection systems serve different purposes.

Choose RESOLUTE
  • Integrated thermal overload protection
  • Protection acts on the controlled circuit
  • Automatic reset after cooling
  • 3A to 20A ratings
  • AC/DC switching · separate 12V DC LED
  • Ideal replacement for traditional thermal breaker layouts
Choose DEFIANCE
  • 316 stainless steel front as standard
  • Solid-state electronic switching
  • Up to 20A at 12V DC
  • Dual and tri-color LED functions
  • Two-channel and Nav/Anchor versions available
  • Internal overload self-protection for the switch electronics

Need SS316 and electronic overload self-protection instead? Consider the BAYWATT DEFIANCE solid-state marine push button series . DEFIANCE protects its own solid-state switching electronics during overload conditions, whereas RESOLUTE uses thermal protection to disconnect the controlled circuit. DEFIANCE therefore does not replace the fuse or circuit breaker required to protect the connected wiring and equipment.


View Technical Specifications ↓

Build a clean protected marine electrical panel with BAYWATT RESOLUTE resettable push button switches.

RESOLUTE Marine Push Button Switch Technical Specifications

  • BAYWATT
  • RESOLUTE Series
  • 22mm Marine Switch
  • 3A–20A
  • AC/DC switching · separate 12V DC LED
  • Thermal Protection

Parameter Specification Notes
Series BAYWATT RESOLUTE Resettable thermal marine push button switch
Mounting Hole 22mm / approx. 7/8" Marine dashboard and panel installation
Switched circuit AC or DC, including nominal 48V DC applications Verify the selected model's AC/DC voltage, load-current and breaking ratings; check maximum battery charging voltage
LED supply 12V DC, separate red and black wires Never connect LED wires directly to AC or to a 24V / 48V supply
Available Functions Latching ON/OFF or momentary ON Select according to required circuit behavior
Latching Ratings 3A / 5A / 10A / 15A / 20A Integrated thermal protection
Momentary Ratings 5A / 10A / 20A Other ratings available for specific projects
Protection Technology Thermal overload protection Disconnects the controlled circuit during sustained overload
Reset Behavior Automatic after cooling Returns to normal operation after the thermal element cools
Standard Front Material Black anodized aluminium Standard RESOLUTE configuration
Optional Front Material 316 stainless steel Available on demand — minimum order quantity applies
Base Material PBT Electrical insulating base
Ingress Protection IP68 front Designed for exposed marine dashboards
LED Type Illuminated ring Integrated status indication
LED Logic Fixed blue or green — selected by LED polarity Red + / black − = blue; black + / red − = green
LED Life >40,000 hours According to switch specification
Cable Length 90cm / 35.43in Pre-wired harness
Main Switch Wiring 14 AWG + 16 AWG Switch / thermal circuit conductors
LED Wiring 22 AWG Separate red and black LED wires; reversible for colour selection
Recommended Use Marine AC/DC circuits within the model's switching ratings Boat dashboards, refit panels and replacement of traditional switch + thermal breaker layouts

RESOLUTE Function and Rating Guide

Reference Family Function Available Ratings Switch Sequence Typical Use
RESOLUTE-LT ON/OFF Latching 3A / 5A / 10A / 15A / 20A OFF → ON → OFF Lights, pumps, fans, accessories and electronics
RESOLUTE-MO Momentary ON 5A / 10A / 20A ON while pressed Horn, pump command, trim, relay or temporary activation

Thermal Trip Characteristics

Rating Approx. Long-Time Current 1.5× Rating High Overload Return Behavior
5A 6A 7.5A: approx. 150–270 sec. 10A: approx. 5 sec. Automatic after cooling
10A 12A 15A: approx. 150–270 sec. 20A: approx. 5 sec. Automatic after cooling
15A 18A 22.5A: approx. 150–270 sec. 30A: approx. 5 sec. Automatic after cooling
20A 24A 30A: approx. 150–270 sec. 34A: approx. 5 sec. Automatic after cooling

Rating selection: the thermal rating must be selected according to the equipment and conductor size. Thermal protection is time-dependent: a small overload may take substantially longer to disconnect than a severe overload.


Back to Product Overview ↑

For application assistance, contact BAYWATT with your system voltage, connected equipment current, cable size and required switch function.
