BAYWATT Defiance 22mm stainless steel push button switch with red blue LED ring, 12V 20A solid-state marine switch, NAV/ANC Switch
BAYWATT Defiance 22mm stainless steel push button switch with red blue LED ring, 12V 20A solid-state marine switch, NAV/ANC Switch

DEFIANCE | Solid-State Marine Push Buttons

SKU: DEFIANCE-20A-LT-BC-1
33.00€
33.00€
Function: Latching ON-OFF
Subtotal: 33.00€

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Description

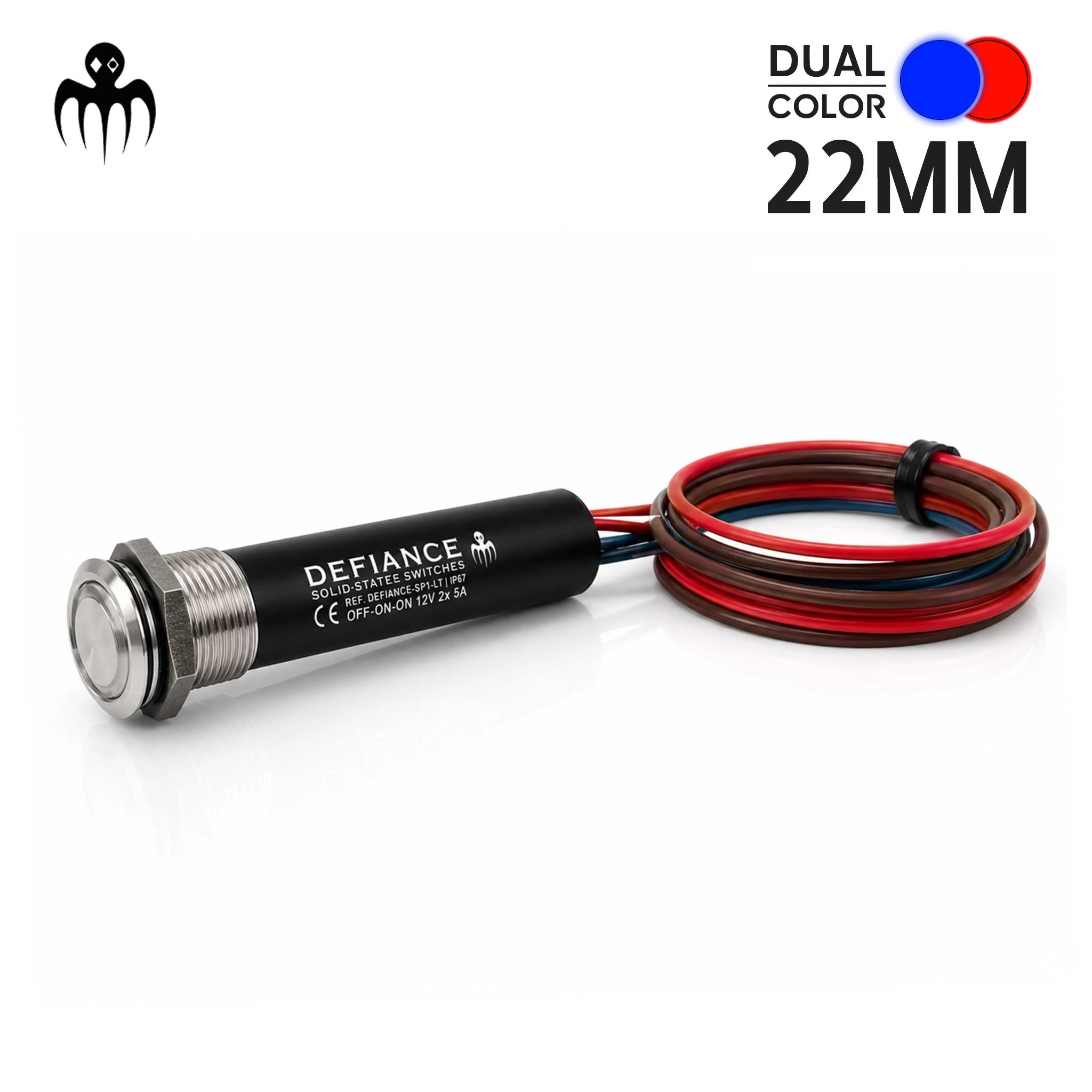

DEFIANCE Solid-State Marine Push Button Switches

The Baywatt DEFIANCE Series is a range of solid-state marine push button switches designed for clean dashboard control on boats, refit panels, 4x4 builds, RV systems and custom DC electrical panels.

Each DEFIANCE switch combines a real push-button feel with internal solid-state switching, a 316 stainless steel front body, IP68 protection, a 90cm pre-wired cable and integrated blue/red LED feedback.

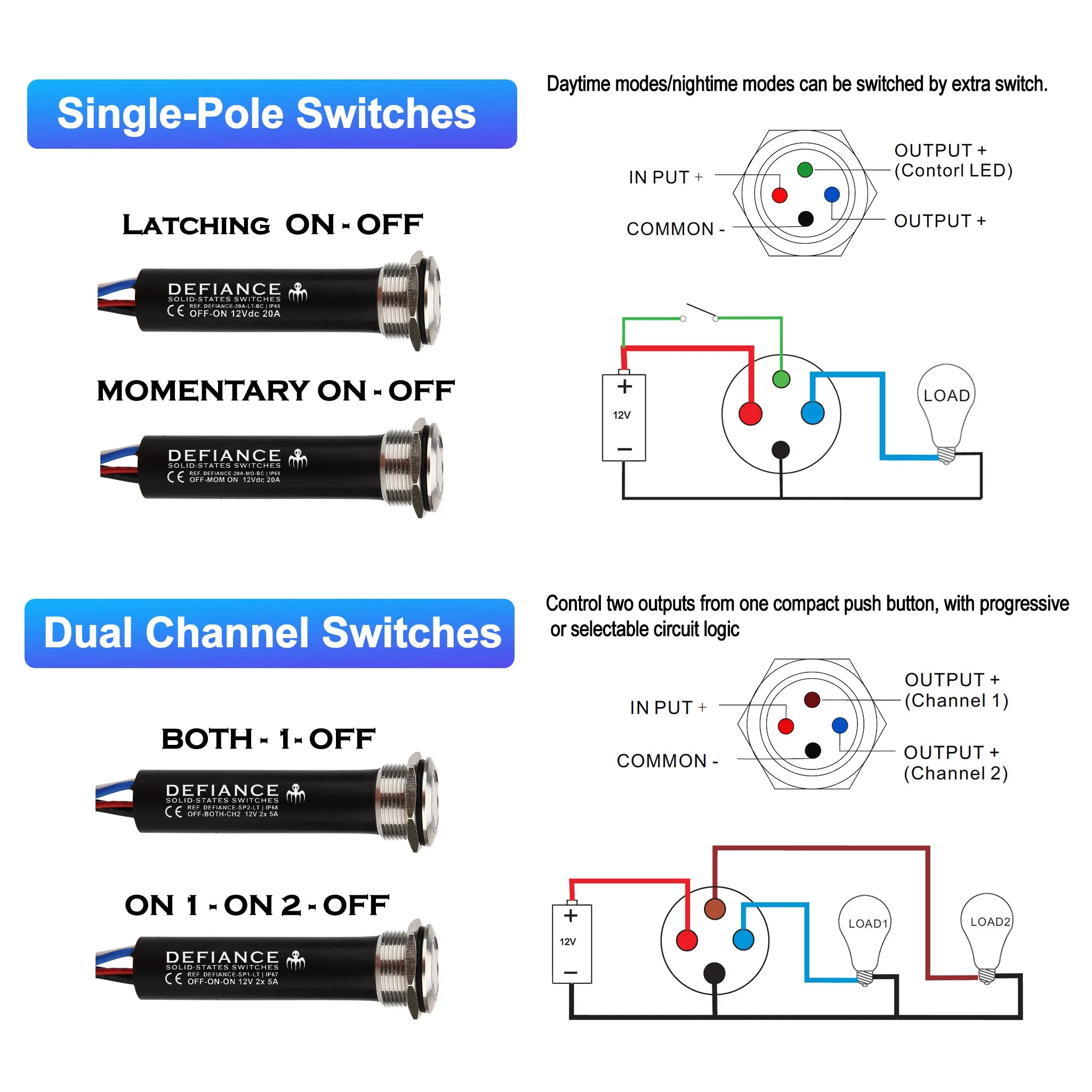

The range is available in latching ON/OFF, momentary ON, 2-circuit OFF-1-2 and navigation/anchor OFF-BOTH-1 versions, allowing the same switch design to be used across several dashboard functions.

Main features

  • 22mm marine push button format
  • Solid-state internal switching
  • SS316 stainless steel front body
  • IP68 protection rating
  • Blue/red LED feedback
  • 90cm pre-wired cable
  • 12V DC operation

Choose the right DEFIANCE switch

Select the reference according to the function you need. The four models share the same DEFIANCE design language, but they do not behave the same way.

DEFIANCE-20A-LT-BC
Latching ON/OFF
20A at 12V DC

Behavior:
Press once: ON
Press again: OFF

Best for:
Lights, accessories, pumps, fans and general ON/OFF control.

DEFIANCE-20A-MO-BC
Momentary ON
20A at 12V DC

Behavior:
Output is ON only while the button is pressed.

Best for:
Horn, temporary command, manual override or relay trigger.

DEFIANCE-SP1-LT
2-Circuit OFF-1-2
5A per circuit 10A total

Behavior:
Press 1: output 1
Press 2: output 2
Press again: OFF

Best for:
Two-zone lighting, mode selection or dual accessory control.

DEFIANCE-SP2-LT
Nav/Anchor OFF-BOTH-1
5A per circuit 10A total

Behavior:
Press 1: navigation + anchor
Press 2: anchor only
Press again: OFF

Best for:
Navigation and anchor light control from one push button.

Important: marine symbols and function stickers are sold separately. Please order the correct symbol set for your installation if you want a labelled dashboard, helm panel or custom switch plate.

Solid-state control, real push-button feel

DEFIANCE is not a basic mechanical push button and it is not a touch-only piezo switch. It keeps the familiar action of a real push button while using an internal solid-state switching circuit to control the output.

The solid-state circuit includes internal self-protection behavior in case of overload. This feature is designed to protect the switch electronics; it is not designed to protect the full installation.

Each circuit must still be protected with the correct fuse or circuit breaker according to the cable size and connected load.

DEFIANCE is designed for

  • Modern marine dashboards
  • Center consoles and cockpit panels
  • Custom switch plates
  • 12V DC lighting and accessory circuits
  • Clean refit projects
  • OEM-style panel upgrades

Typical applications

  • Cabin lights
  • Cockpit lights
  • Deck lights
  • Navigation and anchor lights
  • Spreader lights
  • Bilge pump manual control
  • Washdown pump control
  • Horn or short command trigger
  • Auxiliary equipment control
  • Two-zone lighting control

Blue/red LED feedback

DEFIANCE switches use blue/red LED indication to provide quick visual feedback on the dashboard.

On the single-output versions, the logic is simple:

  • Blue: OFF
  • Red: ON

On the two-output versions, the LED indication helps identify the selected channel or operating mode depending on the switch function.

DEFIANCE is not RESOLUTE

DEFIANCE is a solid-state push button switch. It is designed to control a DC circuit with a modern electronic switching design.

RESOLUTE is a separate product family and should not be confused with DEFIANCE. DEFIANCE includes internal self-protection for the switch electronics, but it is not a resettable circuit breaker and it is not a thermal auto-reset protection device.

DEFIANCE switches are control switches. They do not replace proper fuse or circuit breaker protection in the installation.

DEFIANCE vs standard push button

Feature DEFIANCE advantage
Switching concept Solid-state load control with real push-button action
Panel format 22mm marine dashboard format
Front material 316 stainless steel
Ingress protection IP68
Wiring 90cm pre-wired cable
Functions ON/OFF, momentary, 2-circuit and Nav/Anchor versions

Pros and limits

Pros Limits
Modern solid-state switching Not a resettable circuit breaker
Real push-button feel Not a touch-only piezo switch
SS316 front body Designed for 12V DC systems
IP68 protection rating Requires correct external circuit protection
Blue/red LED feedback Symbols and stickers sold separately
Four marine-use functions Two-circuit versions are rated 5A per circuit

FAQ

Is DEFIANCE a piezo switch?
No. DEFIANCE is not a touch-only piezo switch. It has a real push-button action with internal solid-state switching.

Is DEFIANCE a circuit breaker?
No. DEFIANCE is a control switch, not a resettable breaker. Use the correct fuse or circuit breaker for the circuit.

What happens in case of overload?
The solid-state circuit includes internal self-protection behavior to protect the switch electronics. This does not replace the correct fuse or circuit breaker in the installation.

What is the current rating?
The single-output versions are rated up to 20A at 12V DC. The two-circuit versions are rated 5A per circuit, with a 10A total switch rating.

Are the symbols included?
No. Marine symbols and dashboard stickers are sold separately so the customer can choose the correct function label.

Which model should I choose for navigation and anchor lights?
Choose DEFIANCE-SP2-LT. It is the navigation / anchor version with OFF-BOTH-1 switching behavior.

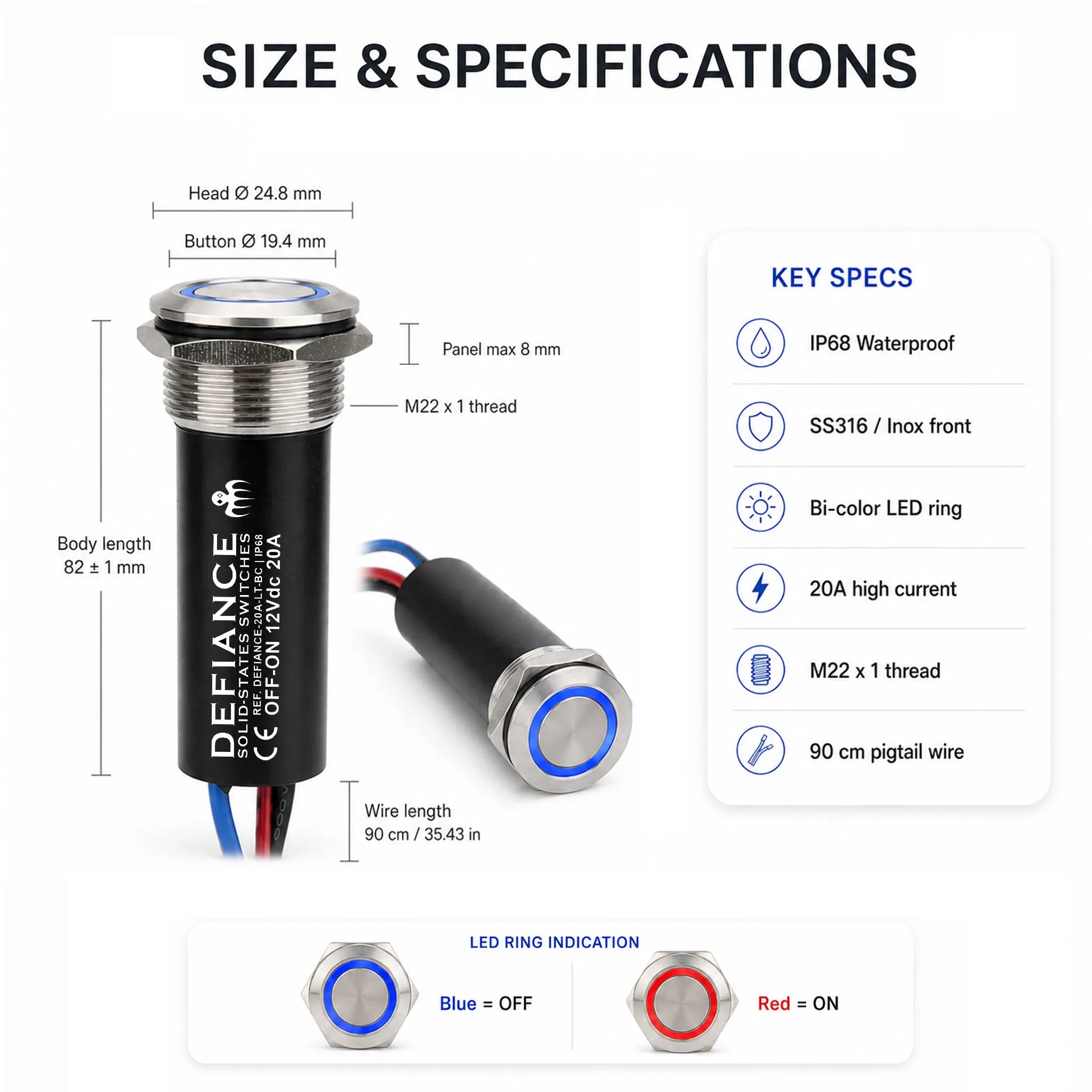

Specification

Technical specifications – DEFIANCE Series variants

Series Baywatt DEFIANCE Series
Product type Solid-state marine push button switch
Mounting hole 22mm
Rated voltage 12V DC
Front material 316 stainless steel
Ingress protection IP68
LED colour Blue / red
LED voltage 12V
Single-output LED logic Blue OFF / red ON
Cable length 90cm / 35.43in
Wire configuration 4-wire cable
Wire size 16 AWG / 18 AWG depending on conductor
Operating temperature -40°C to +70°C
Contact resistance ≤50mΩ
Internal self-protection Self-protection behavior for the solid-state switching circuit in case of overload
Symbols / stickers Sold separately
Important note DEFIANCE is a control switch with internal self-protection for the switch electronics. It is not a resettable circuit breaker and does not replace the correct fuse or circuit breaker for the installation.

Reference details

Reference Model code Function Current rating Switch behavior
DEFIANCE-20A-LT-BC LA22D-03 Latching ON/OFF 20A at 12V DC Press once ON, press again OFF
DEFIANCE-20A-MO-BC LA22D-03 Momentary ON 20A at 12V DC ON only while pressed
DEFIANCE-SP1-LT JS22D-04 2-circuit OFF-1-2 5A per circuit, 10A total switch rating Output 1, output 2, OFF
DEFIANCE-SP2-LT JS22D-05 Navigation / Anchor OFF-BOTH-1 5A per circuit, 10A total switch rating Navigation + anchor, anchor only, OFF
