3-Way Bilge Pump Panel 12/24V – Auto / Off / Manual with 10A breaker
SKU:
RSP-BPPM-1
- 16.11€
- 16.11€
- Unit price
- per
BAYWATT 3-Way Bilge Pump Panel — Auto / Off / Manual | 12V / 24V
- BAYWATT
- 12V / 24V DC
- AUTO / OFF / (MANUAL)
- 1 LED or 2 LEDs
- 10A Breaker
- IP65 Panel
- Pre-Wired
- See Specs ↓

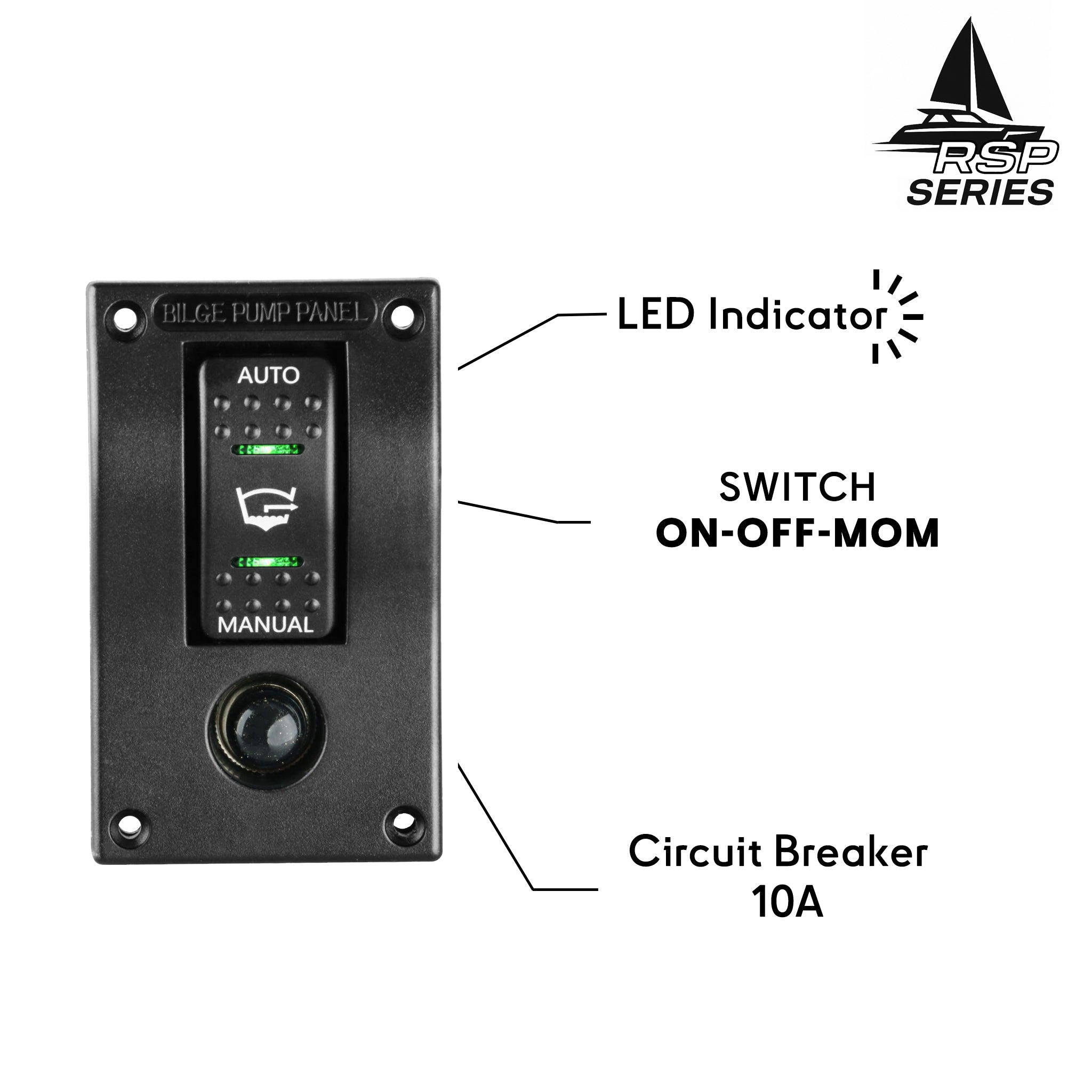

The BAYWATT 3-Way Bilge Pump Panel provides dedicated Auto / Off / Manual control for 12V and 24V marine bilge pump systems from one compact dashboard panel.
The AUTO position is latched, allowing a connected float switch to control the bilge pump automatically, while the MANUAL position is momentary and operates the pump only while the rocker is held.
Two LED configurations are available: 2 LEDs for Auto + Manual feedback, or a 1 LED version with indication only during Manual operation. The single-LED version is particularly useful when AUTO remains armed while the boat is unattended, as no permanent indicator remains illuminated on the dashboard.
Building a complete bilge pump system? Pair this panel with our 12V 3700 GPH marine bilge pump for a high-flow drainage installation with dedicated Auto / Off / Manual dashboard control.
Highlights & Key Features
Dedicated control for automatic and manual bilge pump operation. Select the LED configuration that best matches how you use your boat: continuous Auto + Manual status feedback, or Manual-only indication for a darker unattended dashboard.
- 3-position rocker switch — AUTO / OFF / (MANUAL)
- Latched AUTO position for operation through a float switch
- Spring-return MANUAL position — pump runs only while pressed
- Choice of 1 LED or 2 LED indication
- 10A resettable thermal circuit breaker
- 12V / 24V DC compatible
- IP65 panel protection for marine dashboard installations
- UV-resistant ABS construction
- Pre-wired design for faster installation
- Supplied with mounting gasket and hardware
How AUTO works: Selecting AUTO does not make the bilge pump run continuously. The automatic circuit remains armed and the float switch activates the pump only when required.
Choose Your LED Feedback
Both versions use the same Auto / Off / Momentary Manual switching. The difference is simply how the panel displays operating status.
1
2-LED Version — Auto + Manual Feedback
- AUTO: Auto indicator illuminated
- OFF: Indicators off
- MANUAL: Manual indicator illuminated while held
- Immediate visual confirmation of the selected operating mode
Best for operators who want to see at a glance that the automatic bilge pump circuit remains armed.
2
1-LED Version — Manual Feedback Only
- AUTO: No LED illuminated
- OFF: LED off
- MANUAL: LED illuminated while held
- Automatic bilge operation remains available without a permanent dashboard light
Ideal when leaving the boat at the marina, on a mooring or at anchor. AUTO can remain selected while the dashboard stays dark.
AUTO remains active on the 1-LED version — the light simply stays off. The LED is reserved for MANUAL operation, providing visual feedback only when the pump is deliberately activated from the helm.
Auto / Off / Manual Bilge Pump Control
AUTO — Latched
Leave the rocker in AUTO and the connected float switch can automatically
activate the bilge pump when the water level rises.
OFF — Center Position
Fully disables both automatic and manual pump operation when the bilge
pump system is not required.
MANUAL — Momentary
Hold the rocker in MANUAL for immediate bilge pump operation.
Releasing the switch automatically returns it to OFF.
10A Resettable Breaker
Integrated push-to-reset thermal protection avoids replacing a
conventional fuse after an overload trip.
Why Choose the 1-LED Bilge Pump Panel?
Bilge pump systems are commonly left in AUTO while the boat is unattended, allowing the float switch to activate the pump if water enters the bilge.
With a conventional illuminated AUTO position, this can leave a status LED permanently visible whenever the boat is left at the dock, marina, mooring or anchorage.
The BAYWATT 1-LED version keeps AUTO fully functional but removes the permanent visual indication. The dashboard remains dark until MANUAL mode is deliberately activated.
Need an audible bilge warning? For installations where you also want a sound alert when the bilge system activates, see our bilge pump control panel with buzzer alarm .
Designed for Marine Bilge Pump Systems
Bilge Pumps & Float Switches
- 12V bilge pump systems
- 24V bilge pump systems
- Mechanical float switches
- Electronic automatic bilge switches
- Manual / automatic bilge installations
Boat Dashboard Installation
- Center consoles
- RIBs and tenders
- Sailboats
- Motorboats and speedboats
- Yachts
- Workboats
- Marine dashboard refits
Pre-Wired for Easier Marine Installation
The panel is supplied pre-wired, reducing termination work behind the dashboard and simplifying connection to the power supply, bilge pump and automatic float-switch circuit.
If you are building a complete installation rather than replacing the control panel only, our 12V 3700 GPH bilge pump can be combined with a suitable float switch for automatic and manual drainage control.

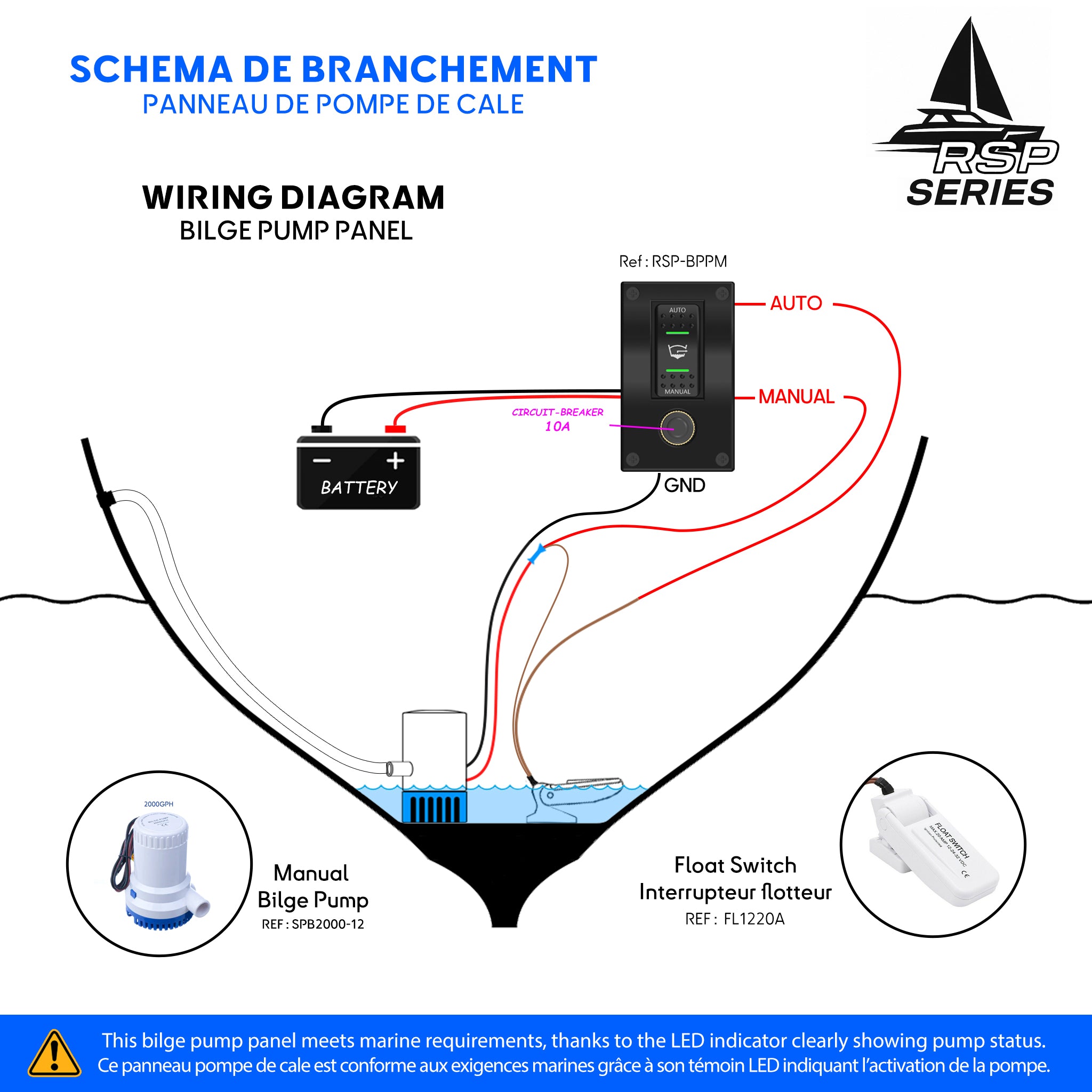

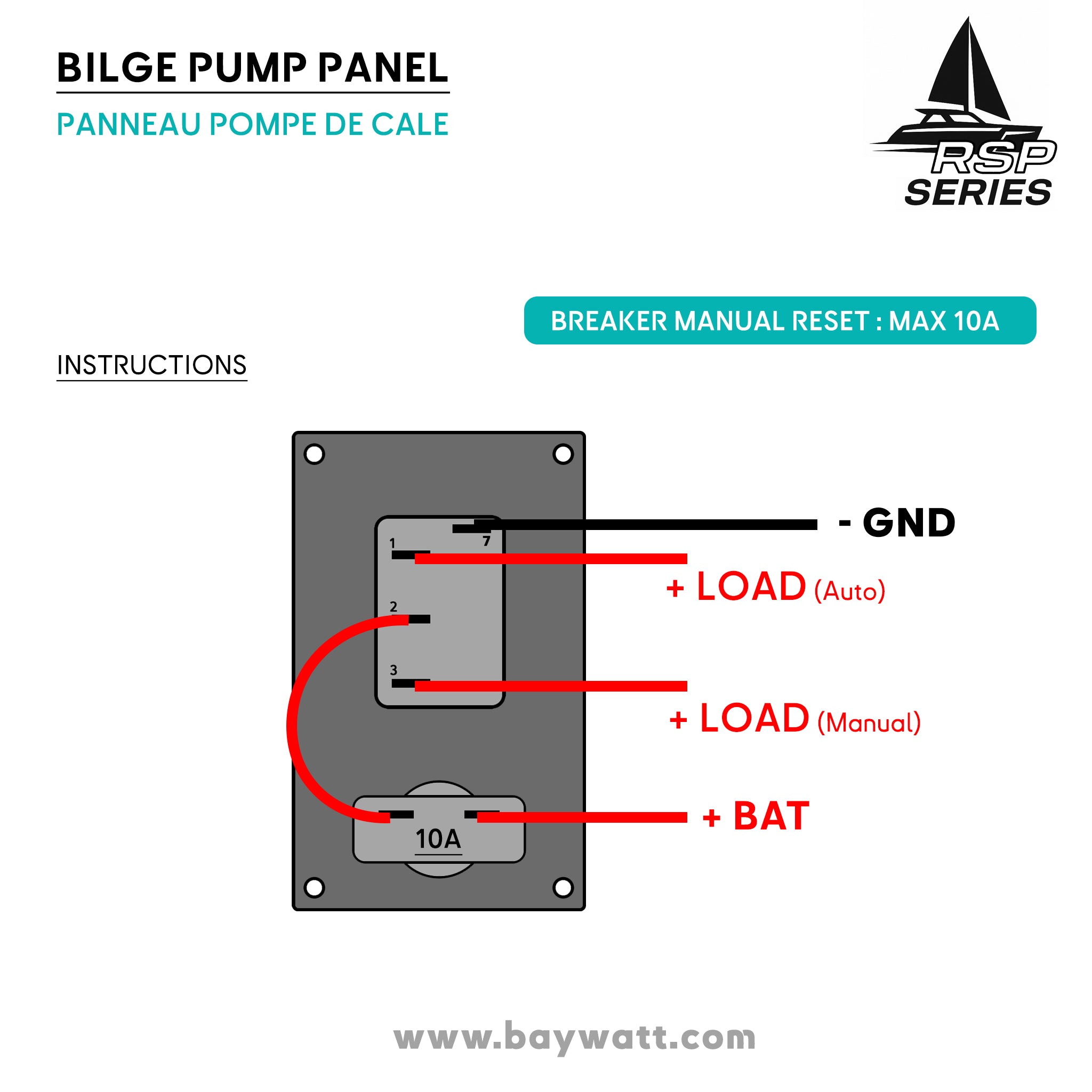

Typical connections: battery positive, ground, automatic / float-switch circuit and manual pump circuit. Always follow the wiring diagram supplied with the panel and size the wiring according to the connected pump and cable length.
Keep your bilge pump ready when the boat is unattended with BAYWATT Auto / Off / Manual marine control.
BAYWATT Bilge Pump Panel Technical Specifications
- BAYWATT
- AUTO / OFF / (MANUAL)
- 1 LED / 2 LEDs
- 10A Breaker
- 12V / 24V
- IP65
- Product Overview ↑
| Parameter | Specification | Notes |
|---|---|---|
| Product Type | BAYWATT 3-Way Bilge Pump Control Panel | Automatic and manual bilge pump control |
| Switch Function | ON-OFF-(ON) | AUTO latched / OFF / MANUAL momentary |
| System Voltage | 12V / 24V DC | Marine DC electrical systems |
| Switch Contact Rating | 20A @ 12V DC / 10A @ 24V DC | Maximum rocker switch contact rating |
| Integrated Breaker | 10A Resettable Thermal Breaker | Push-to-reset overload protection |
| 2-LED Version | Auto + Manual Indicators | Visual indication in AUTO and MANUAL modes |
| 1-LED Version | Manual Indicator Only | AUTO remains active without dashboard illumination |
| Automatic Mode | Latched | Designed for operation through a float switch |
| Manual Mode | Momentary / Spring Return | Pump operates only while rocker is held |
| Panel Material | UV-Resistant ABS | Marine dashboard construction |
| Ingress Protection | IP65 Panel | Designed for splash-prone marine installations |
| Panel Size | 100 × 60 mm / 3.94 × 2.36 in | Compact dashboard format |
| Mounting Cutout | 82 × 42 mm / 3.23 × 1.65 in | Confirm dimensions before cutting the dashboard |
| Fixing Hole Spacing | 87 × 47 mm / 3.43 × 1.85 in | Four-point mounting |
| Installation | Pre-Wired | Designed for faster marine dashboard installation |
| Included | Panel, 10A breaker, gasket and mounting hardware | Ready for installation |
1-LED vs 2-LED Bilge Pump Panel
| Switch Position | 2-LED Version | 1-LED Version |
|---|---|---|
| AUTO | Auto LED ON | No LED |
| OFF | LEDs OFF | LED OFF |
| MANUAL | Manual LED ON while held | Manual LED ON while held |
| Best For | Maximum operating-status visibility | AUTO operation without permanent dashboard illumination |
Installation requirement: The connected bilge pump and wiring must be correctly sized for the application. Do not exceed the rating of the integrated 10A circuit breaker.
Complete Your Bilge Pump Installation
12V 3700 GPH Bilge Pump
Need the pump as well as the control panel?
Discover our
12V 3700 GPH marine bilge pump
for high-flow marine drainage applications.
Bilge Panel with Buzzer Alarm
Prefer an audible warning when the bilge system operates?
See our
bilge pump control panel with buzzer alarm
for installations requiring additional audible feedback.
Multi-Circuit Marine Rocker Panels
For pumps, lighting and other marine accessories, explore the
BAYWATT RSP marine rocker switch panels
for complete dashboard electrical control.
Choose the LED configuration that matches the way you use your boat with BAYWATT.
