Bilge Pump Control Panel with Buzzer Alarm

SKU: IPBP
19.20€
19.20€
Subtotal: 19.20€

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

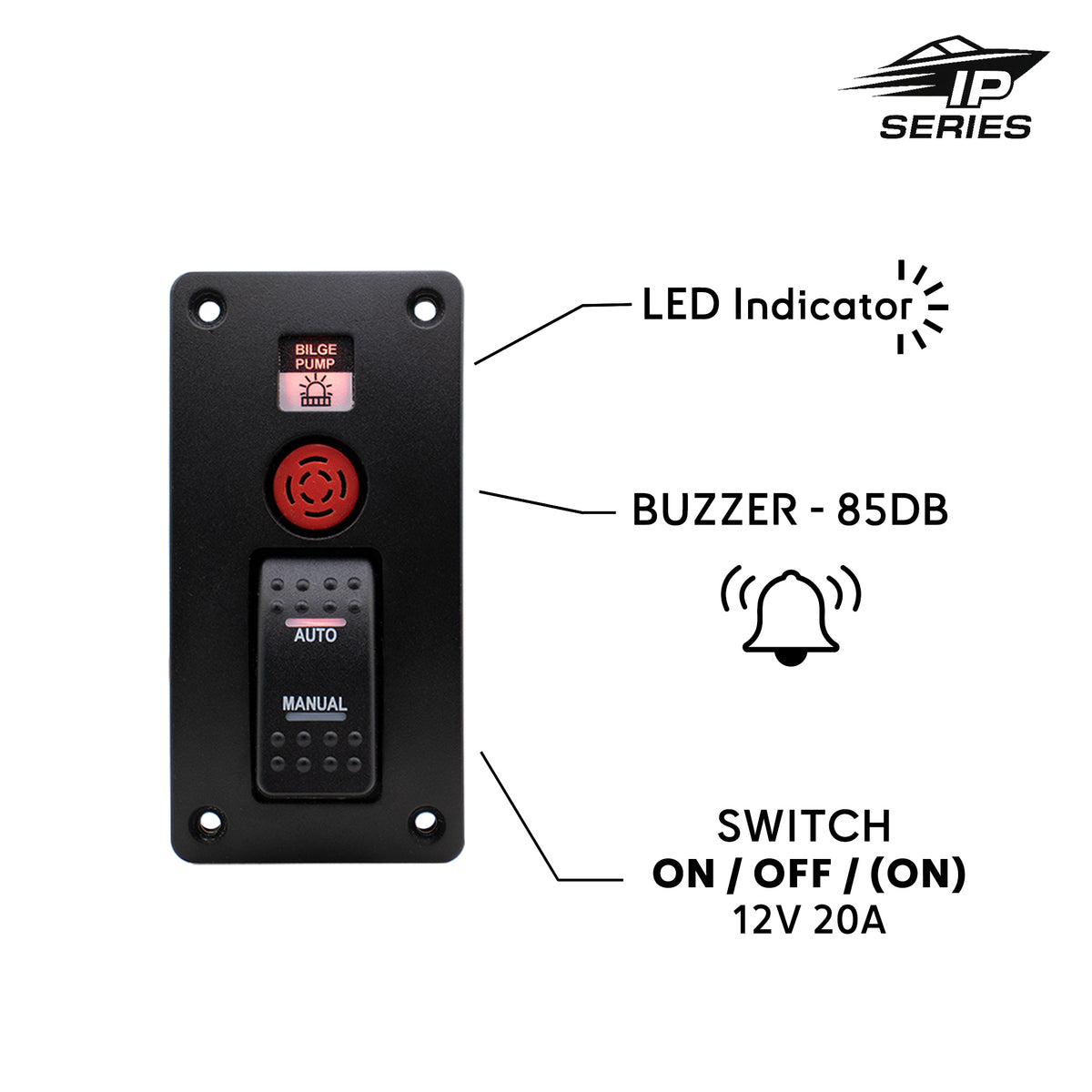

Ensure the safety and efficiency of your boat's bilge system with our Bilge Pump Control Panel. Designed for ease of use and reliability, this panel integrates both manual and automatic pump controls, an LED indicator for status monitoring, and an 85dB buzzer to alert you of high water levels.

Features and Benefits:

  • ⚙️ Versatile Control: Switch seamlessly between three modes:
    • Manual Mode: Continuous operation of the pump for direct control.
    • Auto Mode: Automatic activation based on water levels via a float switch.
    • Off Mode: High-water alarm triggers the pump and buzzer automatically.
  • 🔊 Buzzer Alert (85dB): When the high float switch detects rising water levels, the alarm sounds to prevent potential overflow. Test the buzzer by playing the video available in the gallery.
  • 🌊 Dual Float Switch Compatibility: Compatible with both high and low water level float switches for precise pump control and early alarm activation.
  • 🛡️ 20A Fuse Protection: Pre-wired with a 20A fuse to safeguard the entire system (panel, float switch, and pump) from electrical overload.
  • 💡 LED Indicator: Monitor the pump's status at a glance with the built-in LED light.
  • 🏗️ Durable Construction: Built to withstand harsh marine environments with an IP65 waterproof rating.

Installation Made Easy:

Our panel comes with a comprehensive wiring diagram to make installation straightforward and stress-free.

Bilge Pump Panel Wiring Diagram
Product Dimensions Function Circuit Breaker LED Indicator Material Buzzer Certification IP Rating
Bilge Pump Control Panel with Alarm Buzzer 60x120mm ON/OFF/(ON) 20A LED on the panel ABS 85dB CE IP65
How to use :

Discover tips, tricks, and detailed instructions on using our product in our dedicated blog post. Learn about setup, operation, and optimization to get the most out of your purchase.


Link to the blog
