Dual Battery Test Panel 12/24V – With Digital LED Voltmeter

12/24V Battery Test Panel – Dual Battery with Digital LED Voltmeter

This waterproof test panel allows you to check the status of two separate batteries using a 3-position switch and a clear digital voltmeter. Ideal for boats, RVs, 4x4s, and demanding marine environments.

✅ Key Features

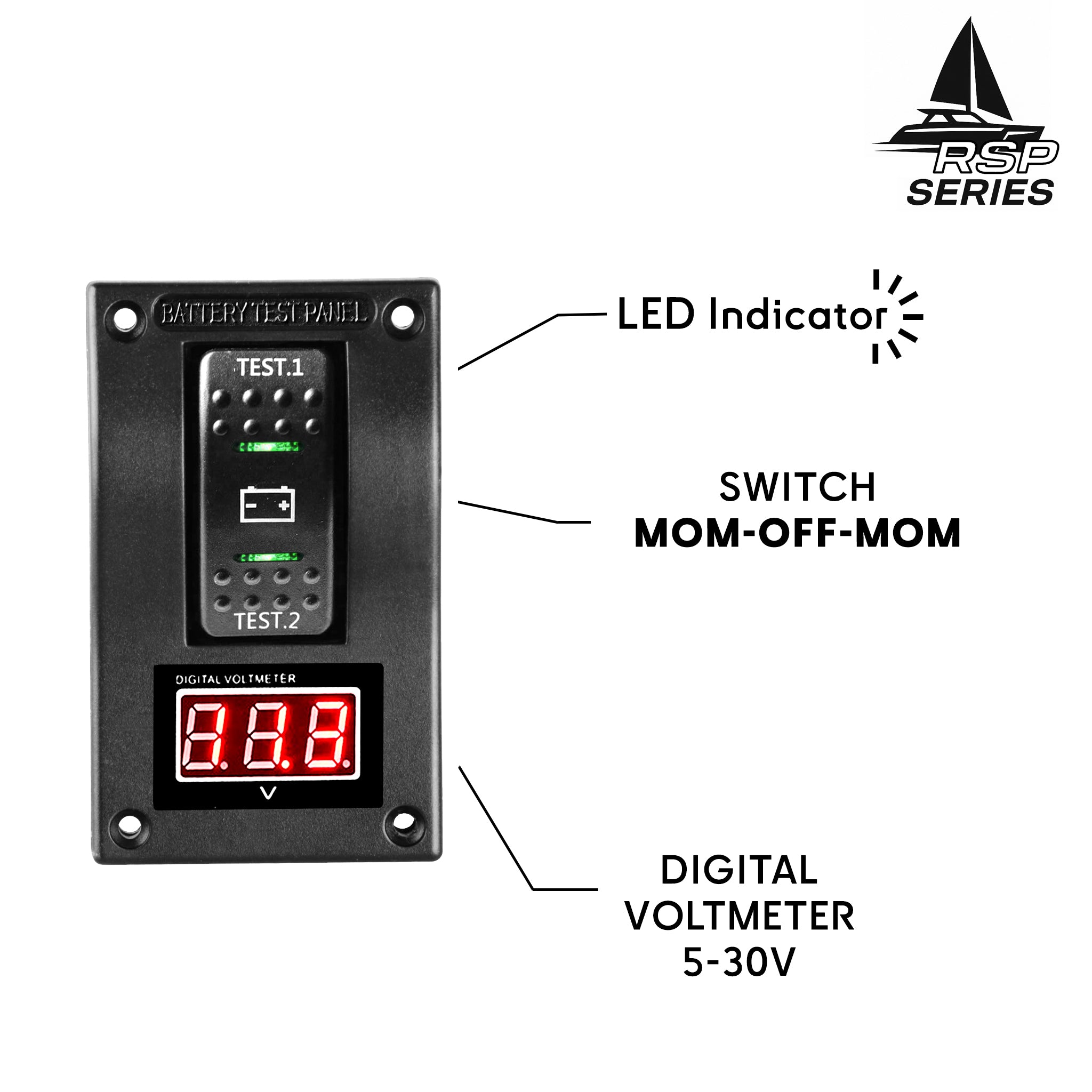

• 3-position ON-OFF-ON switch – select Battery 1 / OFF / Battery 2

• Digital voltmeter 5–30V – accurately displays each battery’s voltage

• Built-in LED indicators – top green LED for Battery 1, bottom green LED for Battery 2

• ABS plastic panel – UV-resistant, splashproof, and durable

• Easy installation – pre-wired with stainless steel screws and silicone gasket included

• 12/24V compatible – works with all boat, van, or onboard battery systems

🛠️ How It Works

• Battery 1: flip the switch upward to read the first battery’s voltage

• OFF: center position to power off the system

• Battery 2: flip the switch downward to read the second battery’s voltage

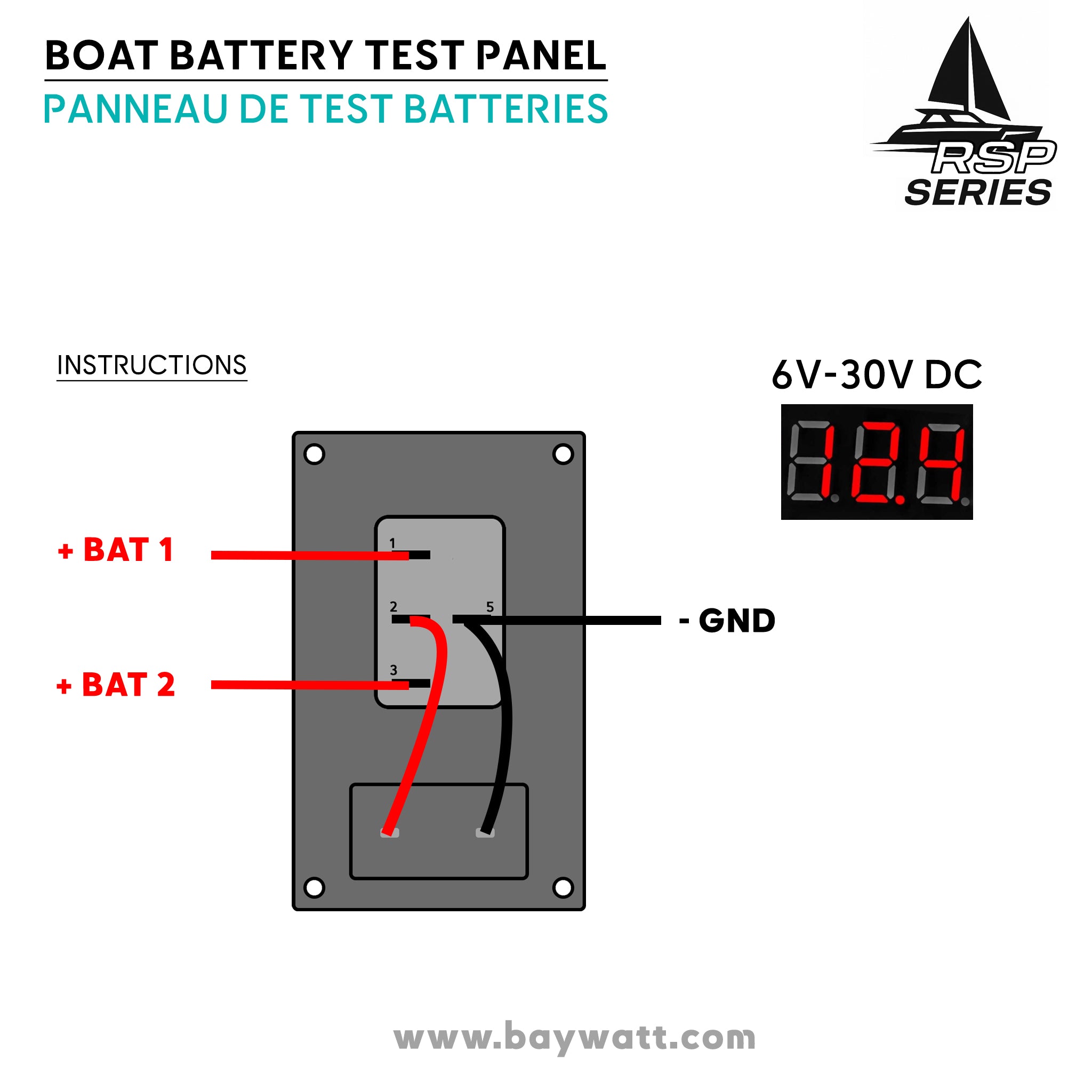

• Simple wiring: connect +BAT1, +BAT2, and GND (see wiring diagram)

• The voltmeter instantly displays the voltage with bright red 3-digit LED

🚤 Compatibility

• Boats, RIBs, sailboats, yachts

• Campervans, vans, 4x4s, tractors

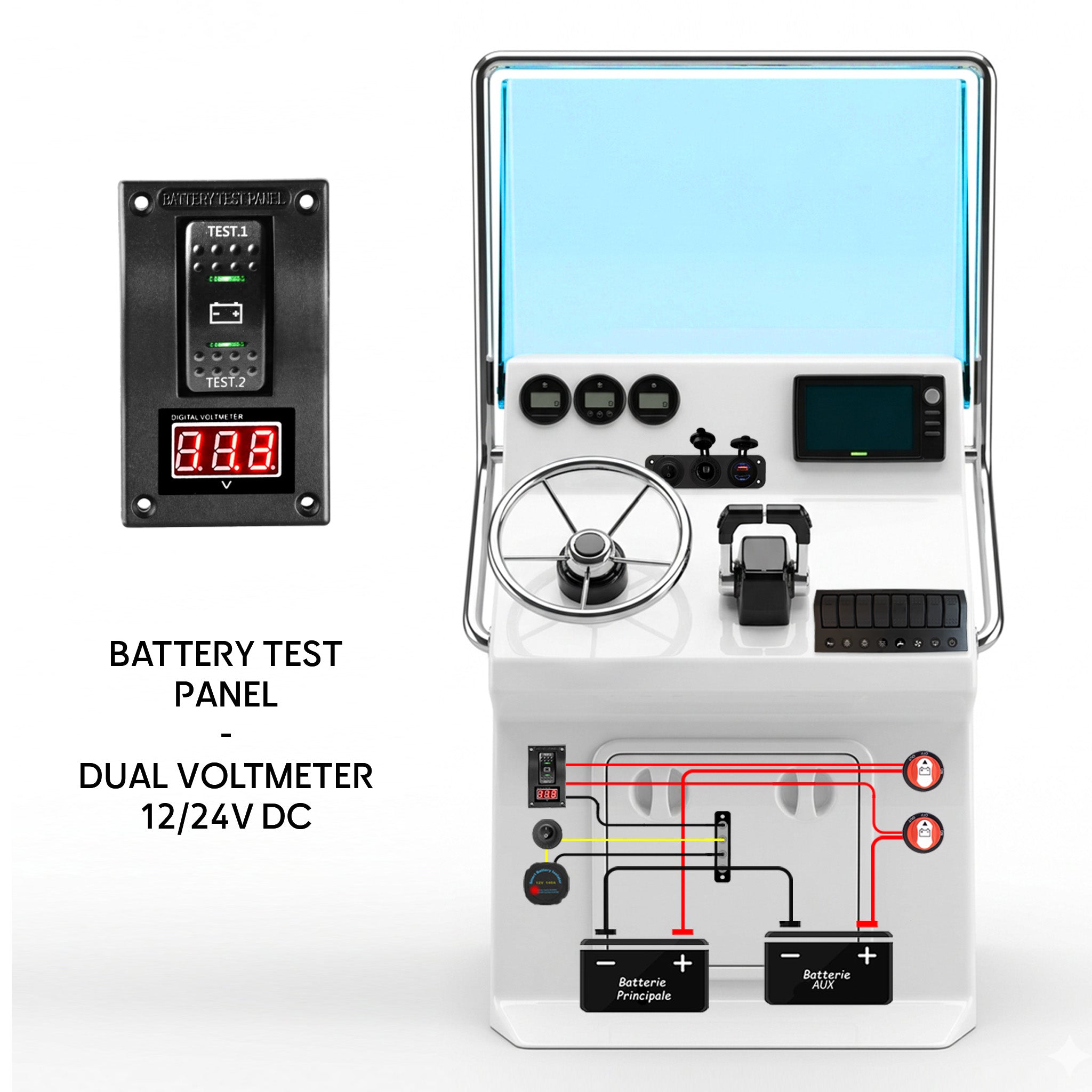

• Suitable for dashboards or center consoles

🔗 Other Models

Also check out our RSP panel series with breakers and dual-color LED switches.
