Modern boats use more electronics than ever: chartplotters, DC/DC converters, MPPT solar controllers, battery monitors, digital switch panels and inverters. When the battery switch is turned ON, these devices can create a short but aggressive inrush current. A pre-charge panel helps reduce the electrical shock during start-up.
Click the diagram to open it in full size.
Why does an arc happen when switching a boat ON or OFF?
A battery switch does not only connect a simple lamp or pump anymore. On many boats, the main circuit feeds several electronic devices at the same time. Many of these devices contain input capacitors. When the battery switch is closed, those capacitors try to charge instantly.
The more electronic equipment connected to the circuit, the stronger the start-up peak can be. This can create a visible spark at the battery switch, a sharp electrical crack, temporary voltage sag, and unnecessary stress on contacts and electronic components.
The same logic applies when switching OFF: if large loads are still running, the battery switch may have to break current under load. A clean shut-down sequence should always reduce or turn off high loads first, then isolate the battery.
A pre-charge circuit adds a controlled step before full power is engaged. Instead of sending full battery power instantly into empty capacitors, the circuit is charged progressively through a resistor. The voltmeter remains on the battery side, so it is used to check the battery before start-up, while the pre-charge button prepares the load side before the main battery switch is closed.
Why lithium batteries make pre-charge more important
Lithium batteries have much lower internal resistance than traditional lead-acid batteries. This is one reason why they perform so well, but it also means they can deliver a very strong inrush current when connected to empty capacitors inside an inverter, MPPT solar controller, DC/DC converter or digital power module.
To the battery management system, this sudden current demand can look like a short circuit. In some cases, the BMS may trip and shut the battery down to protect the cells. The owner turns the main switch ON, hears a click, and the system goes dark without an obvious reason.
A BMS is a safety device, not a start-up manager. It protects the battery, but it does not prevent arcing at the external mechanical battery switch. A pre-charge panel gives the capacitors time to fill progressively before the main switch is closed, reducing stress on the BMS, the switch contacts and the connected electronics.
A boat start-up procedure, like a cockpit sequence
Aircraft do not power up randomly. They use a start-up sequence because the order matters. On board a boat, the same logic can be applied to the electrical system: check, pre-charge, then engage the main circuit.
If the installation uses a separate negative battery switch, engage the negative return before energising the positive side.
The voltmeter is connected on the battery side, before the main battery switch. This confirms that the battery is present and that the voltage is in a normal range before loading the system.
The pre-charge resistor progressively charges the capacitors inside the connected instruments and electronic modules.
This is important: do not press, release, and then switch ON. Keep the pre-charge active while closing the main switch.
The main circuit is now engaged, and the normal current path goes through the battery switch.

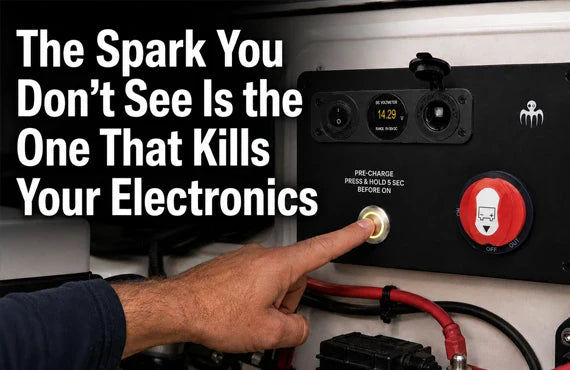

PRE-CHARGE — PRESS & HOLD 5 SEC — THEN SWITCH ON
Recommended shut-down sequence
Pre-charge is mainly a start-up function, but the same disciplined approach should be used when switching the boat OFF. The goal is to avoid using the battery switch as a normal load switch for running equipment.
Stop inverters, DC/DC converters, large pumps, heaters, windlass controls and other high-current loads before isolating the battery.
Shut down chartplotters, displays, navigation electronics and digital panels using their normal power buttons when available.
The battery switch should isolate the system after the main loads have already been reduced.
What does the pre-charge panel protect?
The objective is not to replace fuses, breakers or correct cable sizing. The purpose is to make the start-up cleaner by reducing the initial inrush current and the arc at the battery switch. This can help extend the service life of the electrical system, especially on boats with modern electronic equipment and lithium battery banks.
Benefits for the battery switch
Less arcing at the contacts, less contact pitting, and a smoother ON/OFF experience when energising a circuit with electronic loads.
Benefits for electronics
A more progressive voltage rise, less electrical stress at start-up, and fewer aggressive peaks when the boat is powered ON.
Benefits for lithium batteries
Reduced risk of nuisance BMS trips caused by sudden inrush current into empty capacitors.
Benefits for troubleshooting
The voltmeter gives immediate battery-side feedback before the main switch is closed, making it easier to confirm that the battery is present and within a normal voltage range before energising the boat circuit.
Sensitive marine instruments and devices
A pre-charge procedure is especially relevant when the main battery switch powers several devices with internal electronics or capacitors.
- Chartplotters and multifunction displays
- Fish finders and sonar modules
- Radar equipment
- AIS transponders
- VHF radios with DSC/GPS
- NMEA 2000 backbones and gateways
- Autopilot computers
- Battery monitors and shunt displays
- MPPT solar charge controllers
- DC/DC converters
- Inverters and inverter/chargers
- Digital switch panels
- Electronic bilge pump controllers
- LED drivers and lighting controllers
- Electric propulsion controllers
- USB-C chargers and power modules
Example specification for a compact pre-charge panel
| Pre-charge resistor | 100 Ω / 100 W aluminium chassis resistor |
|---|---|
| Protection | 1A or 2A fuse on the pre-charge line |
| Control | Momentary NO push button |
| Voltage range | 12V / 24V / 48V DC |
| Voltmeter position | Connected before the main battery switch, on the battery side, to check battery voltage before energising the system |
| Pre-charge path | Battery-side positive → fuse → momentary PRE-CHARGE button → 100 Ω / 100 W resistor → load-side positive |
| Operating instruction | Hold PRE-CHARGE for 5 seconds, then close the main battery switch while still holding the button |
Build the example panel with BAYWATT components
The example layout can be built around a compact battery switch, a voltmeter panel and a momentary push button. The resistor and fuse are installed behind the panel to create the pre-charge path.
Conclusion
A marine pre-charge panel is a simple way to make the boat’s electrical start-up cleaner and more controlled. It reduces the shock of energising capacitive loads, helps limit arcing at the battery switch, and encourages a proper start-up sequence on board.
With lithium batteries, this type of solution is more relevant than ever. Lithium battery banks have very low internal resistance and can deliver extremely high inrush current when connected to empty capacitors inside inverters, MPPT solar controllers, DC/DC converters or digital power modules. This can create start-up arcs, trigger BMS protection, stress electronic components and accelerate wear on mechanical battery switches.
A BMS is an essential safety device, but it should not be treated as a replacement for a proper start-up procedure. For boats using lithium batteries and modern electronics, a pre-charge routine adds a simple layer of control: check the battery voltage, pre-charge the circuit, then engage the main battery switch.
