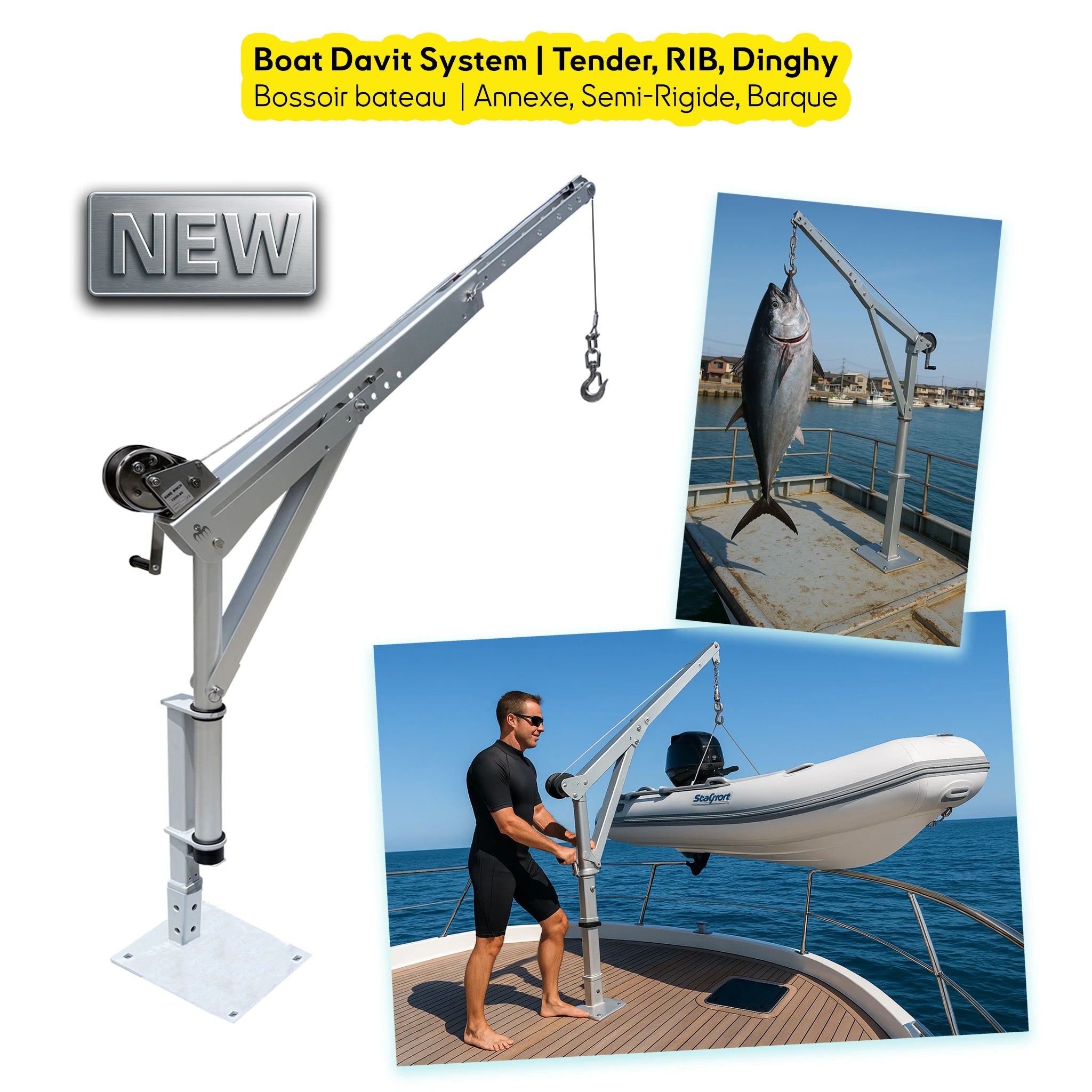

Portable marine davit crane for fishing and tender hoisting, showing tuna lift and deck installation on yacht

Grue de ponton marine avec cabestan électrique ou manuel, montage plat ou mural, relevage d’annexe et matériel de bord.

Système de bossage bateau 400 kg, grue de levage anodisée pour annexe semi-rigide, pêche au thon et maintenance portuaire

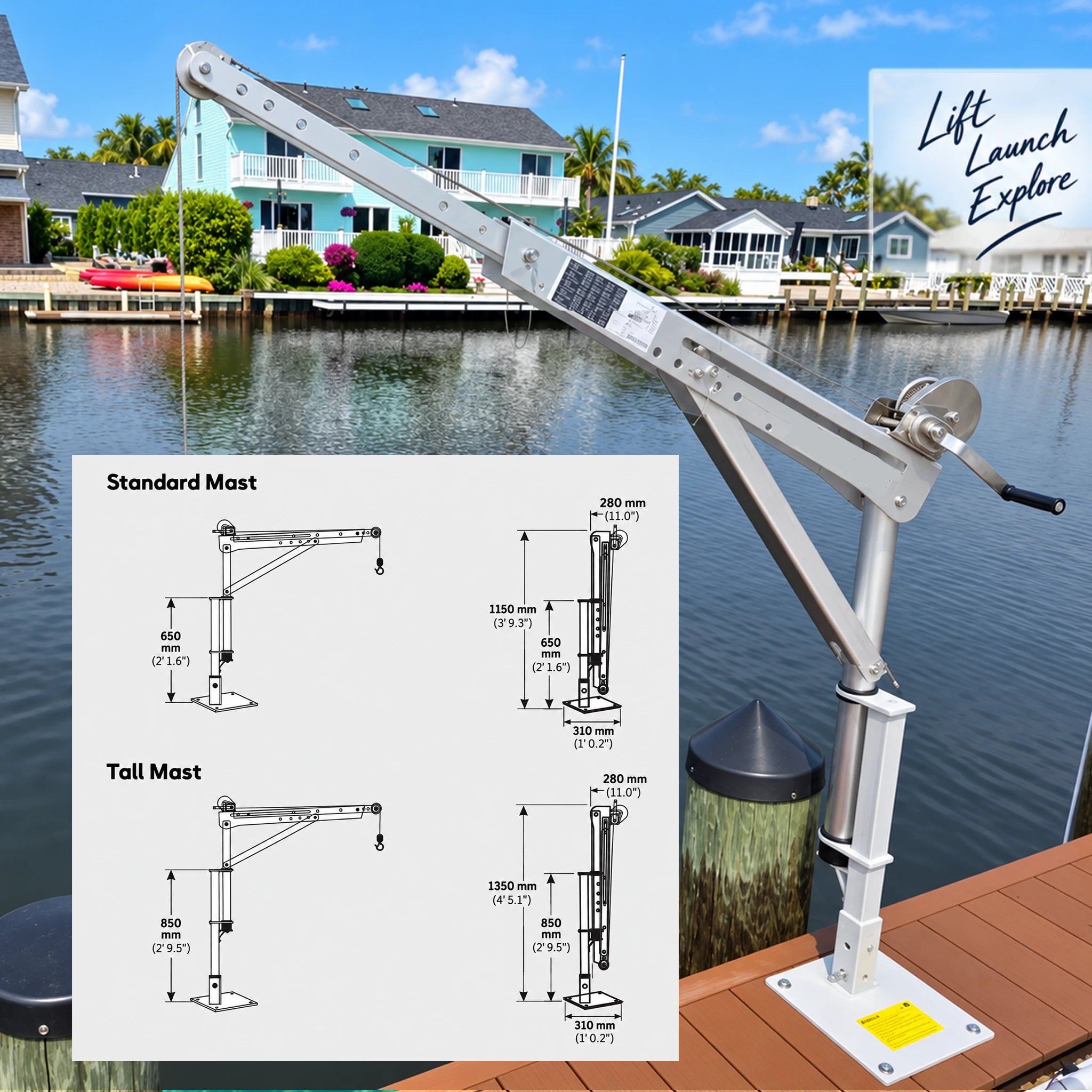

A silver metal boat lift with a hand crank and telescopic arm shown on a dock, with a waterfront house scene in the background. An inset diagram compares standard mast and tall mast configurations with labeled dimensions.

Lightweight aluminum boat davit crane lifting tender or RIB, 400 kg capacity, ideal for marinas and yacht decks

Portable Marine Davit Crane | 900lbs (400kg)

SKU: CR400-MD

1.200.00€; 1.200.00€
Unit price: per

Mast Size: Standard Standard Tall Mast

Winch: Manual Manual Automatic

Bracket: Flat Deck Flat Deck Wall Mount

Product variants

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Description
Specification
How to use
FAQ
Download

Portable Marine Davit Crane CR400 — Up to 400 kg / 900 lb

Up to 400 kg / 900 lb 15 kg Removable Arm 360° Rotation 20 Lift Configurations Standard / Tall Mast Manual / 12V Electric Deck / Wall Mount ~20 Days Average

A compact marine davit built around reach, height and load — not one fixed lifting position. The BAYWATT CR400 is a portable marine davit crane designed for tenders, RIBs, dinghies, outboard motors and heavy onboard equipment. Its adjustable boom lets the operator balance lifting capacity, horizontal reach and hook height according to the real installation and the load being handled.

With five boom-angle positions (A–E) and four extension positions (1–4), the CR400 provides 20 working configurations. This makes the same davit suitable for very different lifting situations: reaching farther over the side of a boat, lifting a tender higher above a rail, or shortening the boom when maximum capacity is required.

Maximum capacity is geometry-dependent. The CR400 lifts up to 400 kg / 900 lb in its strongest configuration. The permitted load changes with boom angle A–E and extension position 1–4. The lift-capacity chart below always governs the maximum permitted load for the selected position.

One Portable Davit — 20 Lift / Reach Combinations

5 Boom Angles: A–E Move from lower, reach-focused positions to progressively higher hook positions. Position E gives the greatest lift height.

4 Boom Extensions: 1–4 Option 1 is the shortest and strongest boom setting. Option 4 gives the maximum horizontal reach.

360° Rotation Rotate the crane to transfer a controlled load between water, dock and deck after correct installation.

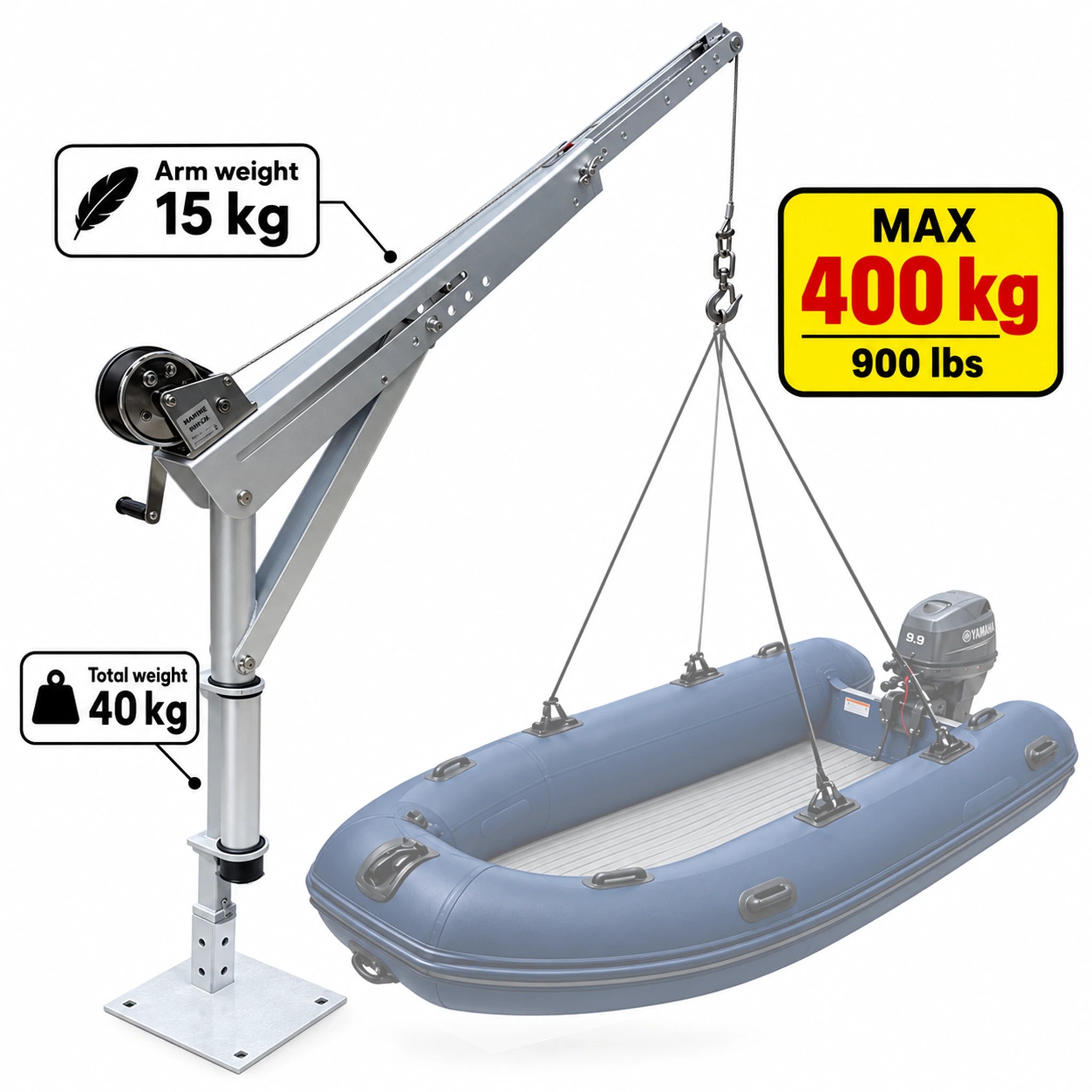

Portable 15 kg Arm The removable aluminum arm weighs approximately 15 kg / 33 lb, making storage and handling easier between lifts.

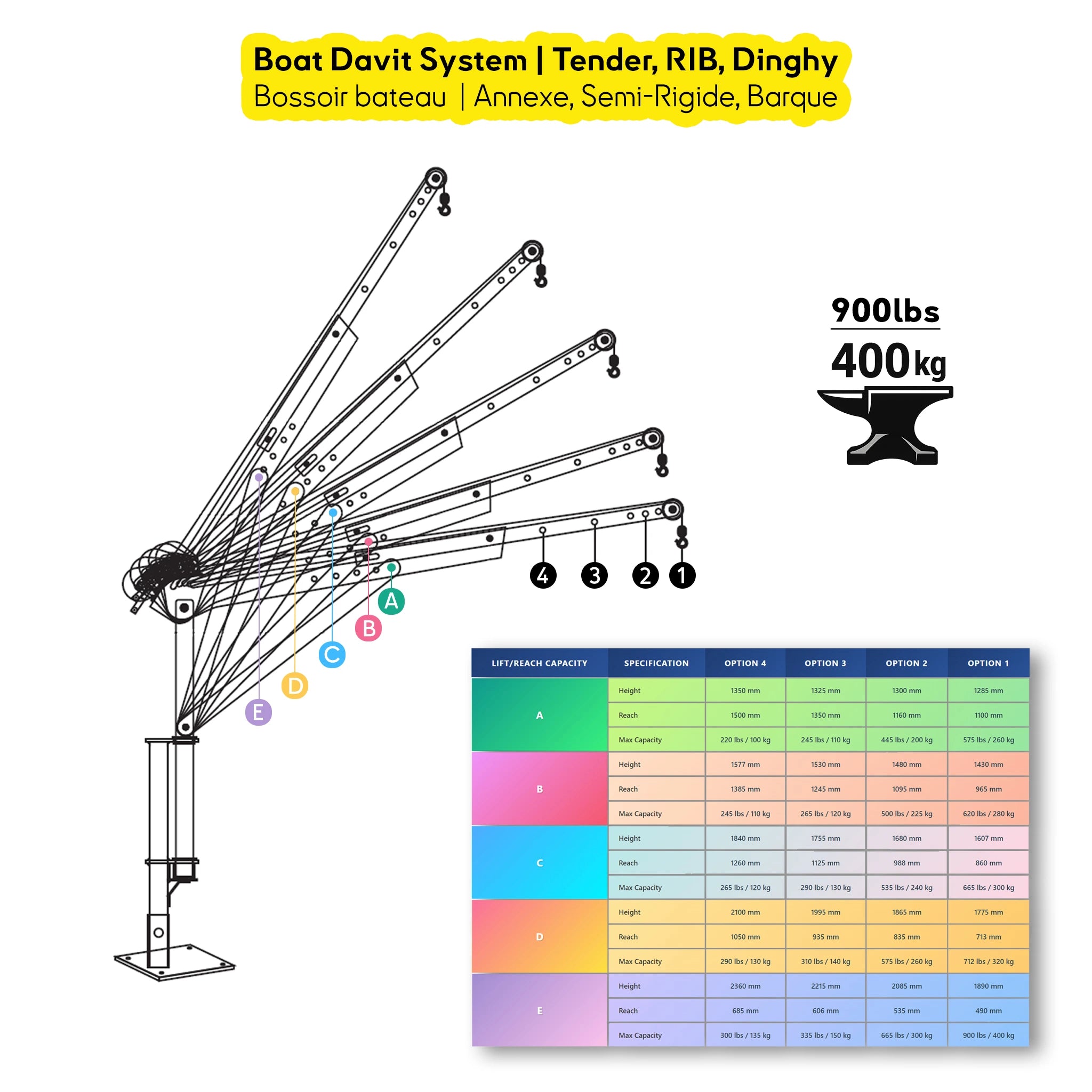

How to Read the CR400 Lift Capacity Chart

The CR400 chart combines the five arm-angle positions A to E with the four boom-extension positions 1 to 4. For each combination, the table gives three essential values: hook height, horizontal reach and maximum lifting capacity. Dimensions are shown in both millimetres and inches to make installation planning easier in Europe, the UK, the USA and other markets.

A → E = More Lift Height

As the arm rises from A toward E, the hook moves higher and closer to the mast. Use the higher positions when clearance over a gunwale, rail or deck structure is the priority.

4 → 1 = More Capacity

Retracting the boom reduces horizontal reach and increases the permitted load. E / Option 1 is the maximum-capacity configuration at 400 kg / 900 lb.

Standard Mast — Lift / Reach Capacity Table

The Standard Mast is 650 mm / 25.6 in high. The HTML5 lift table below reproduces the CR400 working-load chart and adds imperial dimensions alongside every metric height and reach value.

CR400 Standard Mast — Lift / Reach Capacity
Lift / Reach Position	Specification	Option 4	Option 3	Option 2	Option 1
A	Height	1350 mm / 53.1 in	1325 mm / 52.2 in	1300 mm / 51.2 in	1285 mm / 50.6 in
	Reach	1500 mm / 59.1 in	1350 mm / 53.1 in	1160 mm / 45.7 in	1100 mm / 43.3 in
	Max Capacity	220 lb / 100 kg	245 lb / 110 kg	445 lb / 200 kg	575 lb / 260 kg
B	Height	1577 mm / 62.1 in	1530 mm / 60.2 in	1480 mm / 58.3 in	1430 mm / 56.3 in
	Reach	1385 mm / 54.5 in	1245 mm / 49.0 in	1095 mm / 43.1 in	965 mm / 38.0 in
	Max Capacity	245 lb / 110 kg	265 lb / 120 kg	500 lb / 225 kg	620 lb / 280 kg
C	Height	1840 mm / 72.4 in	1755 mm / 69.1 in	1680 mm / 66.1 in	1607 mm / 63.3 in
	Reach	1260 mm / 49.6 in	1125 mm / 44.3 in	988 mm / 38.9 in	860 mm / 33.9 in
	Max Capacity	265 lb / 120 kg	290 lb / 130 kg	535 lb / 240 kg	665 lb / 300 kg
D	Height	2100 mm / 82.7 in	1995 mm / 78.5 in	1865 mm / 73.4 in	1775 mm / 69.9 in
	Reach	1050 mm / 41.3 in	935 mm / 36.8 in	835 mm / 32.9 in	713 mm / 28.1 in
	Max Capacity	290 lb / 130 kg	310 lb / 140 kg	575 lb / 260 kg	712 lb / 320 kg
E	Height	2360 mm / 92.9 in	2215 mm / 87.2 in	2085 mm / 82.1 in	1890 mm / 74.4 in
	Reach	685 mm / 27.0 in	606 mm / 23.9 in	535 mm / 21.1 in	490 mm / 19.3 in
	Max Capacity	300 lb / 135 kg	335 lb / 150 kg	665 lb / 300 kg	900 lb / 400 kg

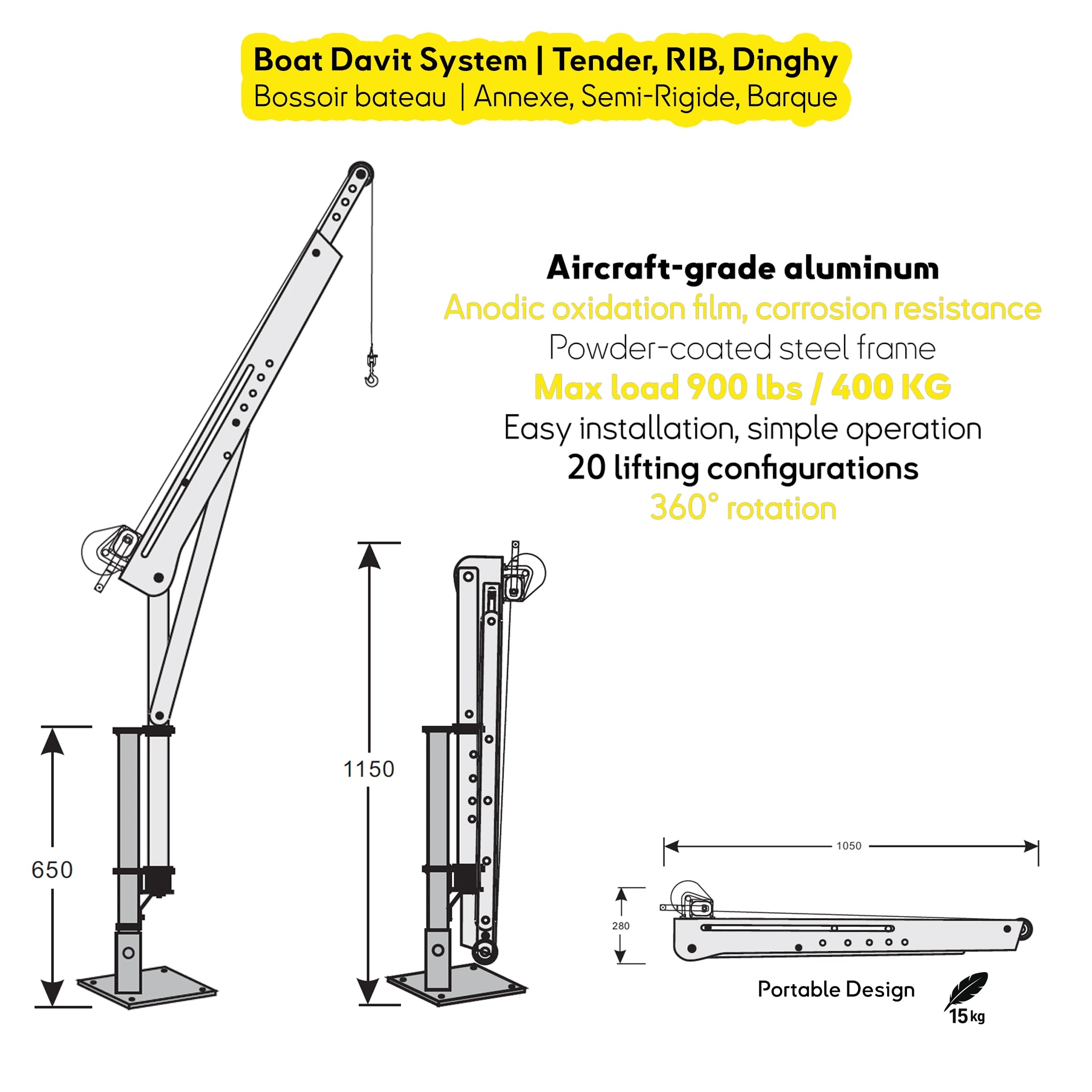

Standard Mast

650 mm / 25.6 in mast height
Approx. folded overall height: 1150 mm / 45.3 in.

Tall Mast

850 mm / 33.5 in mast height
Approx. folded overall height: 1350 mm / 53.1 in. Adds exactly 200 mm / 7.9 in to every hook-height value.

Tall Mast = more height only. Reach and maximum lifting capacity remain exactly the same as on the Standard Mast. Only hook height changes.

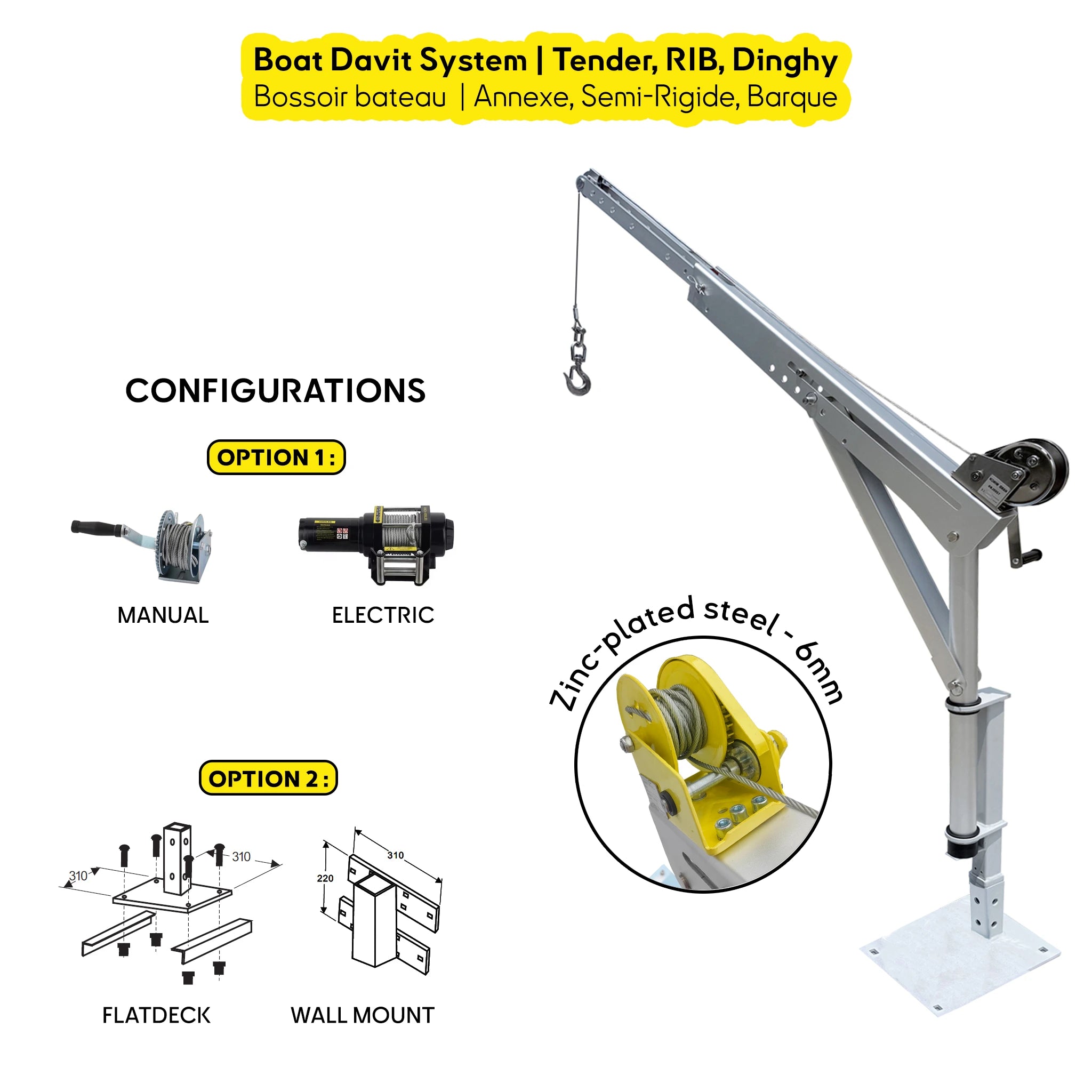

Choose the CR400 Configuration

Manual Winch 1200 lb manual winch for a simple, fully mechanical lifting setup.

12V Electric Winch 3000 lb line-pull electric winch for powered lifting and easier repeated operation.

Flat Deck Mount Base configuration for suitable horizontal decks, docks and properly reinforced platforms.

Wall Mount Alternative mounting arrangement for a suitable reinforced vertical structure.

Marine Construction, Standards & Delivery

The CR400 uses an anodized marine / aviation-grade aluminum structure with stainless hardware and a 5 mm zinc-plated steel lifting cable, 6 m / 19 ft long. The complete crane assembly weighs approximately 40 kg / 88 lb, while the removable arm itself is approximately 15 kg / 33 lb.

Standards referenced: EN ISO 12100:2010 and EN 16851:2017.

Average lead time: about 20 days. Production and delivery timing can vary with configuration and destination.

Warranty: 2 years.

Specification

CR400 Technical Specifications — Portable Boat Davit Crane

CR400 Series 400 kg / 900 lb Max Standard Mast 650 mm Tall Mast 850 mm 360° Rotation 2-Year Warranty

General Specifications

Specification	CR400
Maximum Lifting Capacity	Up to 400 kg / 900 lb, depending on boom geometry
Working Configurations	20 combinations: 5 boom angles × 4 extension positions
Rotation	360°
Complete Crane Weight	Approx. 40 kg / 88 lb
Removable Arm Weight	Approx. 15 kg / 33 lb
Main Structure	Anodized marine / aviation-grade aluminum with stainless hardware
Lifting Cable	5 mm zinc-plated steel cable, 6 m / 19 ft
Manual Winch	1200 lb
Electric Winch	12V, 3000 lb line pull
Mounting Options	Flat deck mount or wall mount
Standard Mast	650 mm / 25.6 in; approx. folded overall height 1150 mm / 45.3 in
Tall Mast	850 mm / 33.5 in; approx. folded overall height 1350 mm / 53.1 in
Referenced Standards	EN ISO 12100:2010; EN 16851:2017
Average Lead Time	About 20 days
Warranty	2 years

Marine Davit Applications

The CR400 is designed as a versatile portable boat davit rather than a permanently fixed single-purpose crane. Its adjustable lift geometry is particularly useful when the same installation must handle different loads or when space on deck is limited.

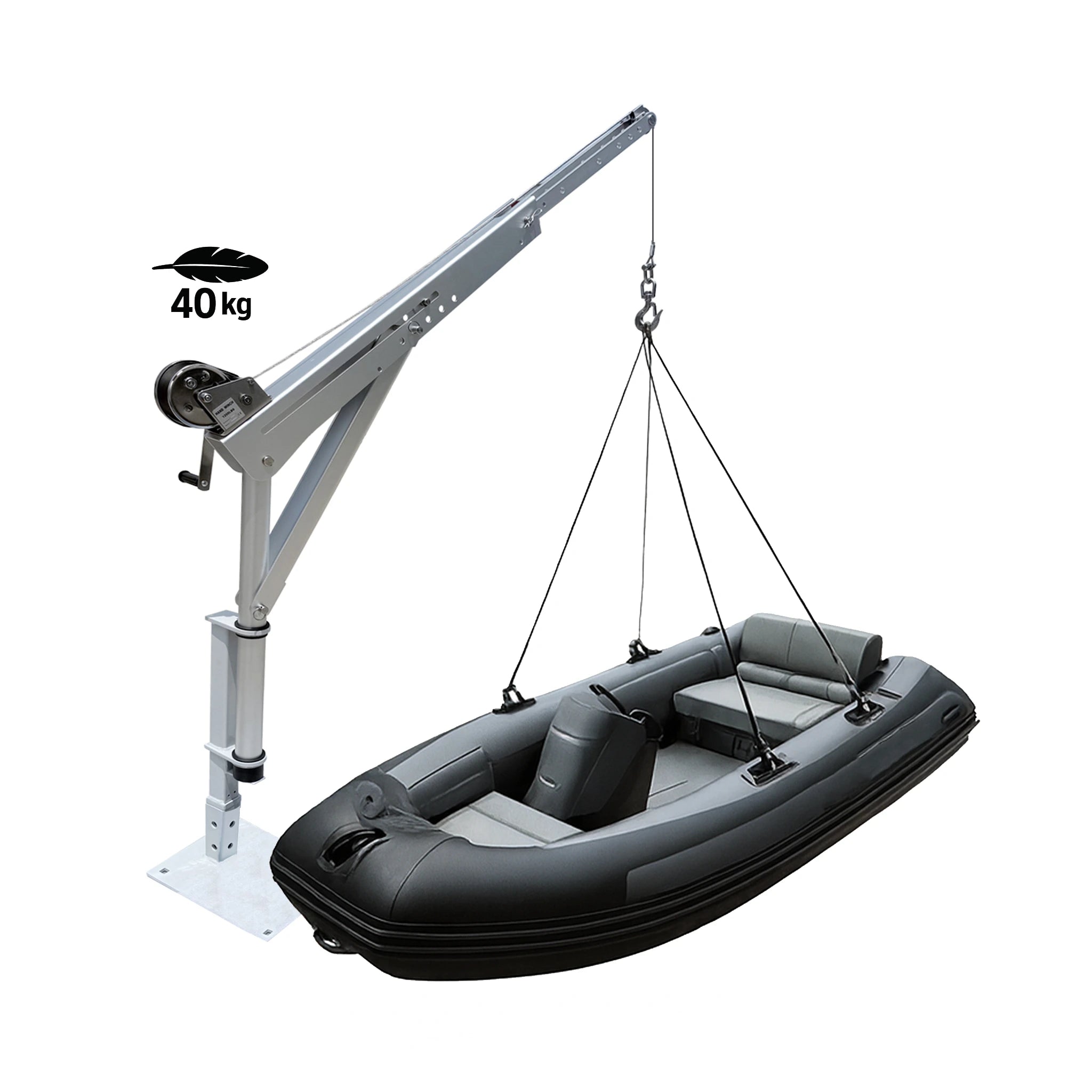

Tender & Dinghy Lifting Lift and position a tender or dinghy between the water, dock and reinforced deck area while selecting the reach needed for the installation.

RIB & Semi-Rigid Handling The load chart makes it possible to select a safe configuration according to the RIB weight and required reach.

Outboard Motor Handling Useful for lifting compact outboards and other heavy marine equipment where controlled vertical handling is required.

Boat, Dock & Utility Use Suitable for leisure craft, workboats and dockside applications when installed on a structure engineered for the lifting loads.

Choosing the Correct Lift Position

Before every lift, determine three values: load weight, required horizontal reach and required hook height. Then select a combination from the lift-capacity table in the product description. A longer boom position provides more reach but reduces allowable load, while a shorter boom position increases lifting capacity. Raising the boom from A toward E increases hook height and reduces reach.

The 400 kg / 900 lb rating therefore describes the maximum capacity of the CR400 system in its strongest geometry, not the permitted load in every position. This distinction is especially important for tender cranes and boat davits because the required reach can change significantly depending on deck layout, rail height, mounting location and the position of the load relative to the mast.

Installation & Lifting Safety

The lift-capacity table governs the actual permitted load. Do not apply the 400 kg / 900 lb headline rating to a position with a lower chart capacity.

For loads above approximately 250 kg, use the specified snatch-block / double-line arrangement. The deck, wall or supporting structure must also be appropriately engineered and reinforced for the imposed lifting loads.

Keep personnel clear of suspended loads and inspect the cable, hook, fasteners, winch, mounting points and locking pins before operation.

Need to check whether the Standard Mast or Tall Mast is better for your boat? Measure the mounting surface, the height of the rail or gunwale, the distance from the mast to the lifting point and the actual loaded weight of the tender or equipment. These measurements can then be compared directly with the CR400 lift / reach tables above.
