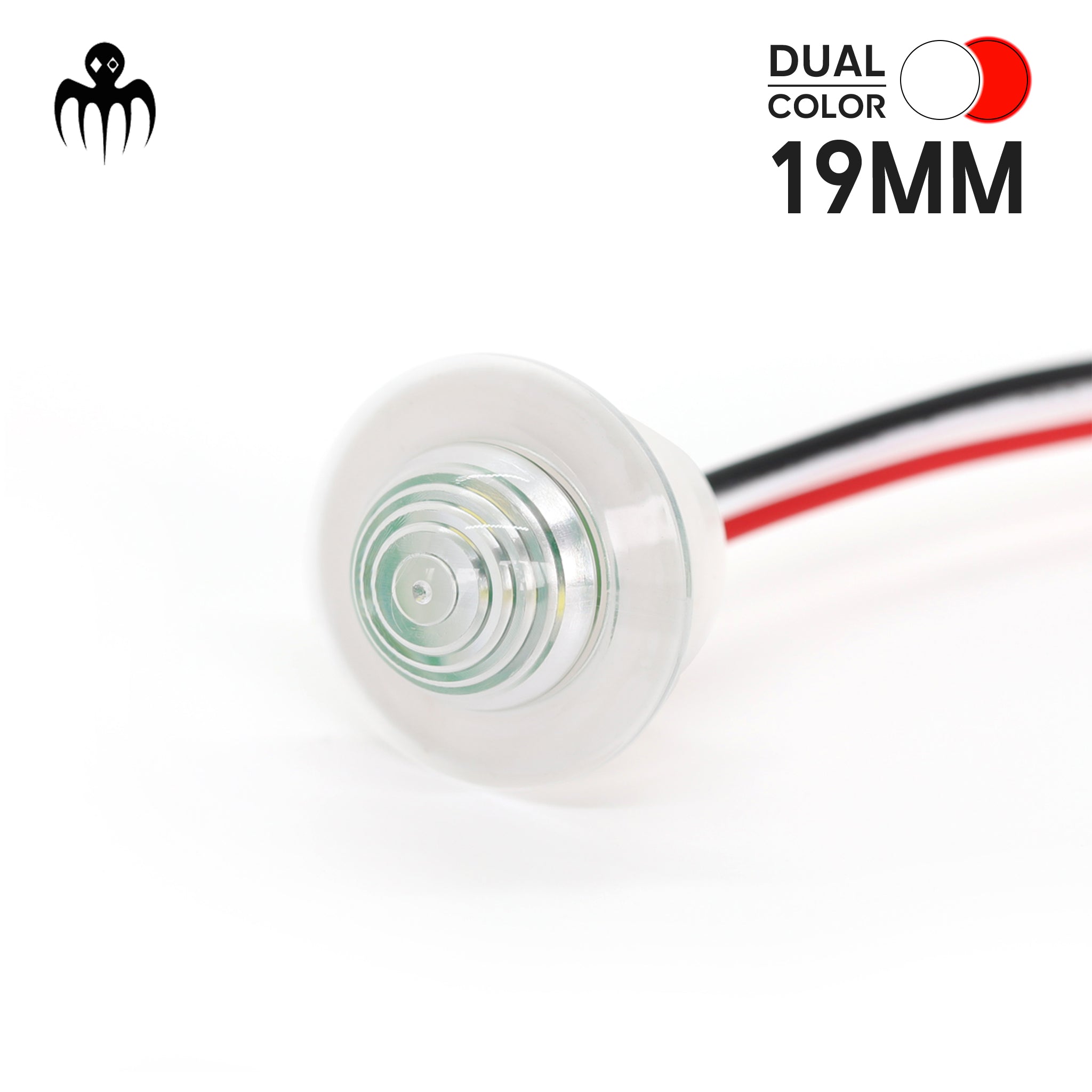

Compact Bi-Color LED Marine Light | White/Red
SKU:
IL19WR
- 3.20€
- 3.20€
- Unit price
- per
Dual-Color LED Courtesy Light – Red & White, 12/24V – Pack of 2
- 12V / 24V
- Bi-Color LED
- Red / White
- Low Consumption
- IP67
- Pack of 2
Compact Marine Courtesy Lighting with Red or White Illumination
This dual-color LED courtesy light provides selectable red or white illumination from the same compact fitting. Designed for indoor and outdoor marine use, it is ideal for decks, steps, stairs, cockpit areas, hatches and ladders where discreet low-level lighting improves visibility.
With its IP67 waterproof rating, the light is suited to marine environments. The polycarbonate lens diffuses the light evenly, reducing direct glare while maintaining a clean and discreet appearance on board.
12V / 24V • Low Consumption ≤ 20 mA • 12V ≤ 0.24 W • 24V ≤ 0.48 W
Red / White Bi-Color LED Separate positive wires allow independent control of each LED color.
IP67 • Compact Installation Waterproof marine design • Polycarbonate lens • 19 mm drill hole
The compact 19 mm installation format makes these lights suitable for areas where a larger conventional courtesy light would be too bulky. Their low electrical consumption also makes them practical for continuous or frequent use on 12V and 24V boat electrical systems.

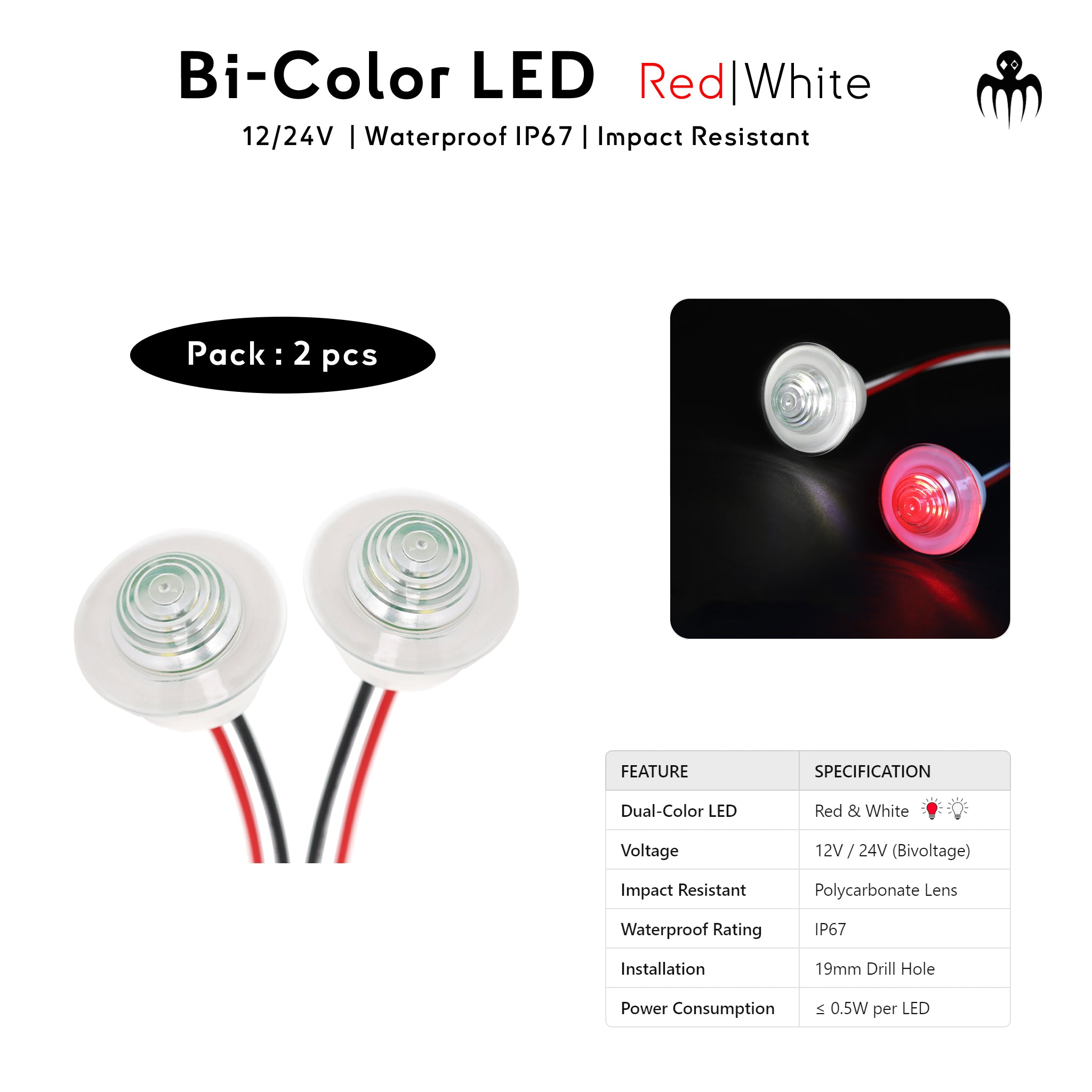

Pack of 2: two matching courtesy lights are supplied, making them particularly useful for symmetrical installations on steps, companionways, cockpit sides, ladders or opposite sides of a deck.

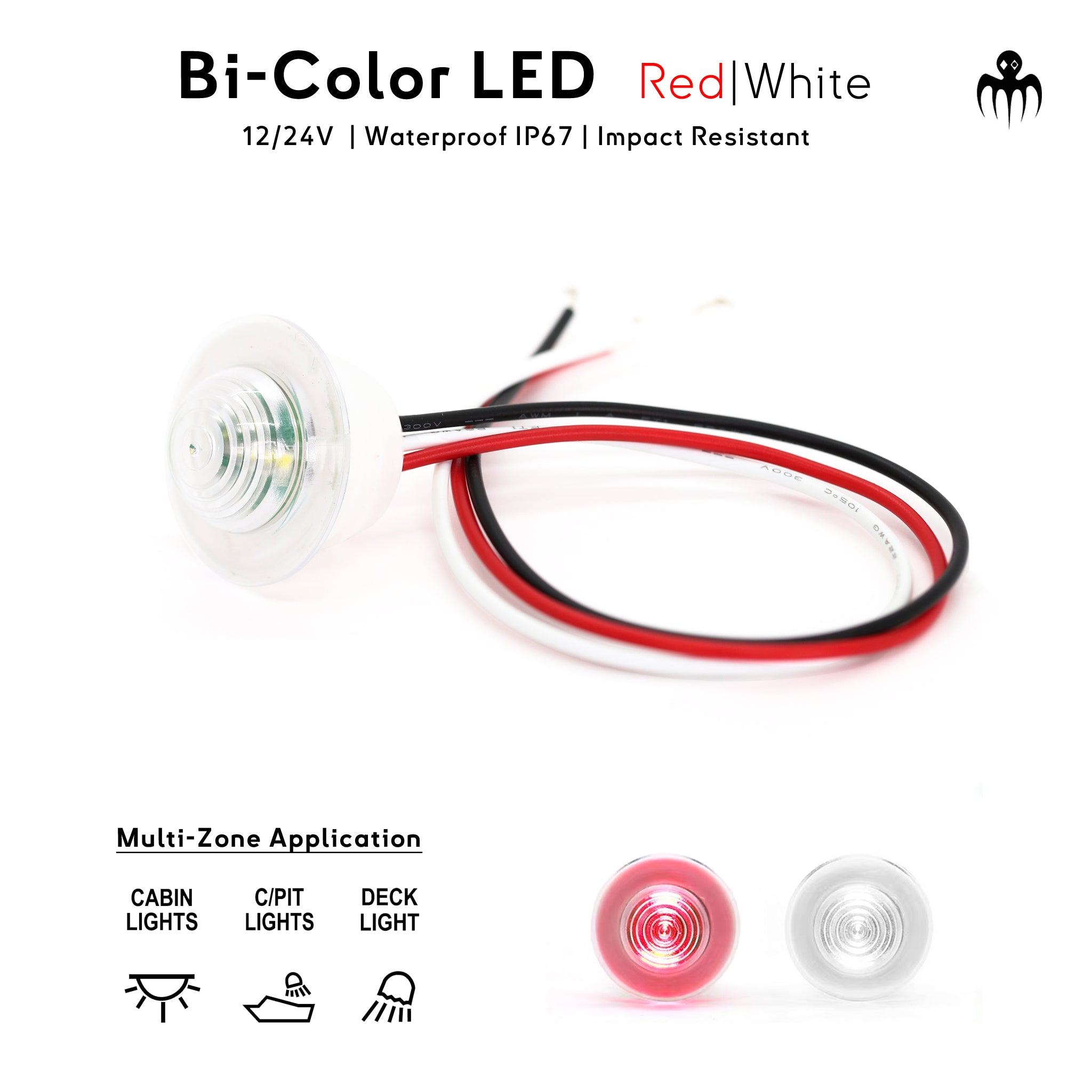

Where to Use the Dual-Color LED Courtesy Light
The compact design allows these marine LED lights to be installed in several areas around the boat without taking up unnecessary space.
1
Deck Lighting
Add low-level illumination around deck areas and edges to improve visibility in low-light conditions.
2
Steps & Stairs
Illuminate steps, companionways and changes in level to make access points easier to identify at night.
3
Cockpit & Interior Lighting
Use as a compact courtesy light for subtle ambient illumination in cockpit and interior areas.
4
Hatches & Ladders
Provide local illumination around hatches, ladders and access points where better visibility is useful.

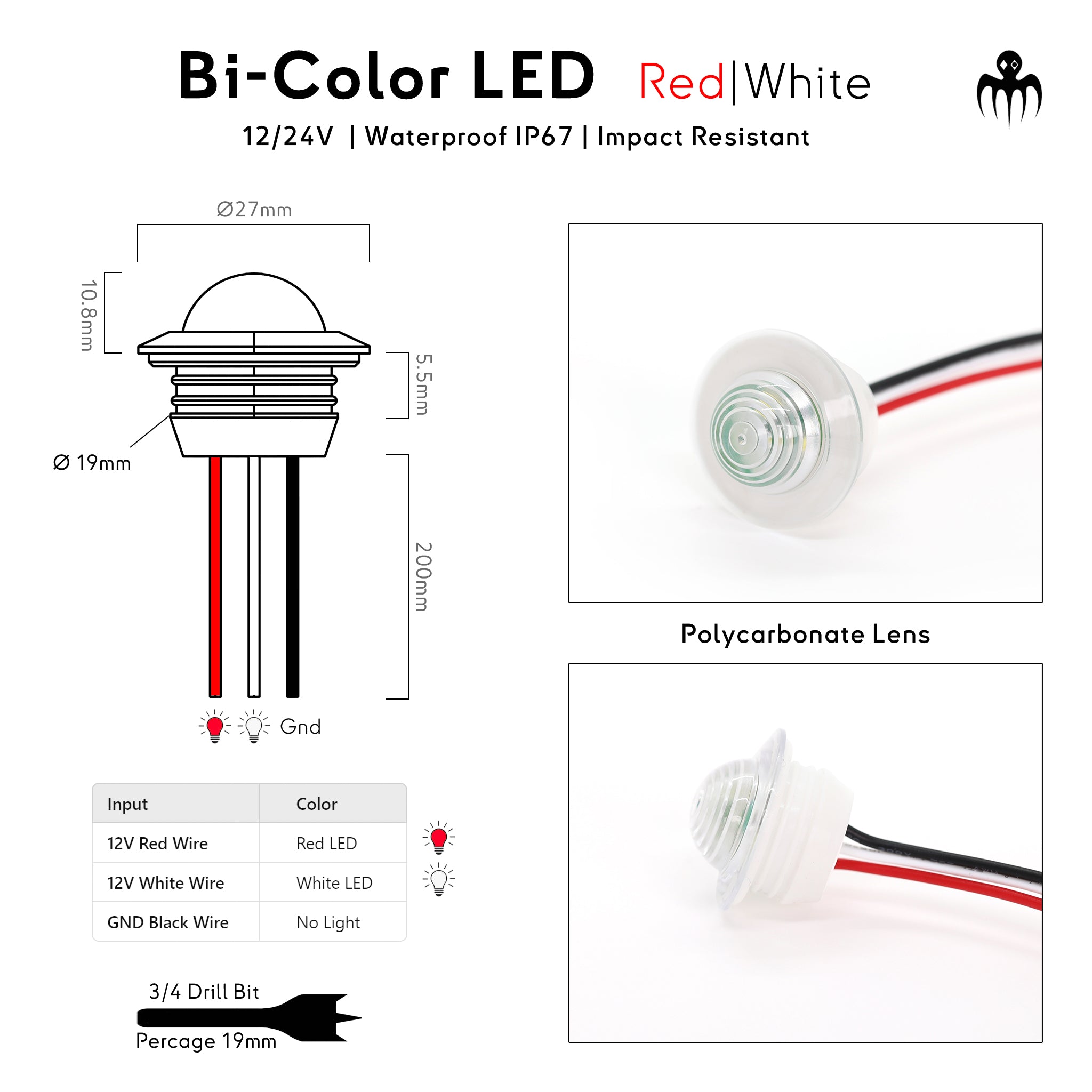

Simple 3-Wire Red / White LED Wiring
Each courtesy light uses three wires: one positive connection for the red LED, one positive connection for the white LED and one common ground connection.
Wiring Connections
- 🔴 Red wire: Red LED
- ⚪ White wire: White LED
- ⚫ Black wire: Ground
Apply a positive signal to the red wire to activate the red LED or to the white wire to activate the white LED. Both colors share the same black ground connection.
Flexible Control Options
Because the red and white LEDs have separate positive wires, the light can be integrated into several types of marine electrical control systems.

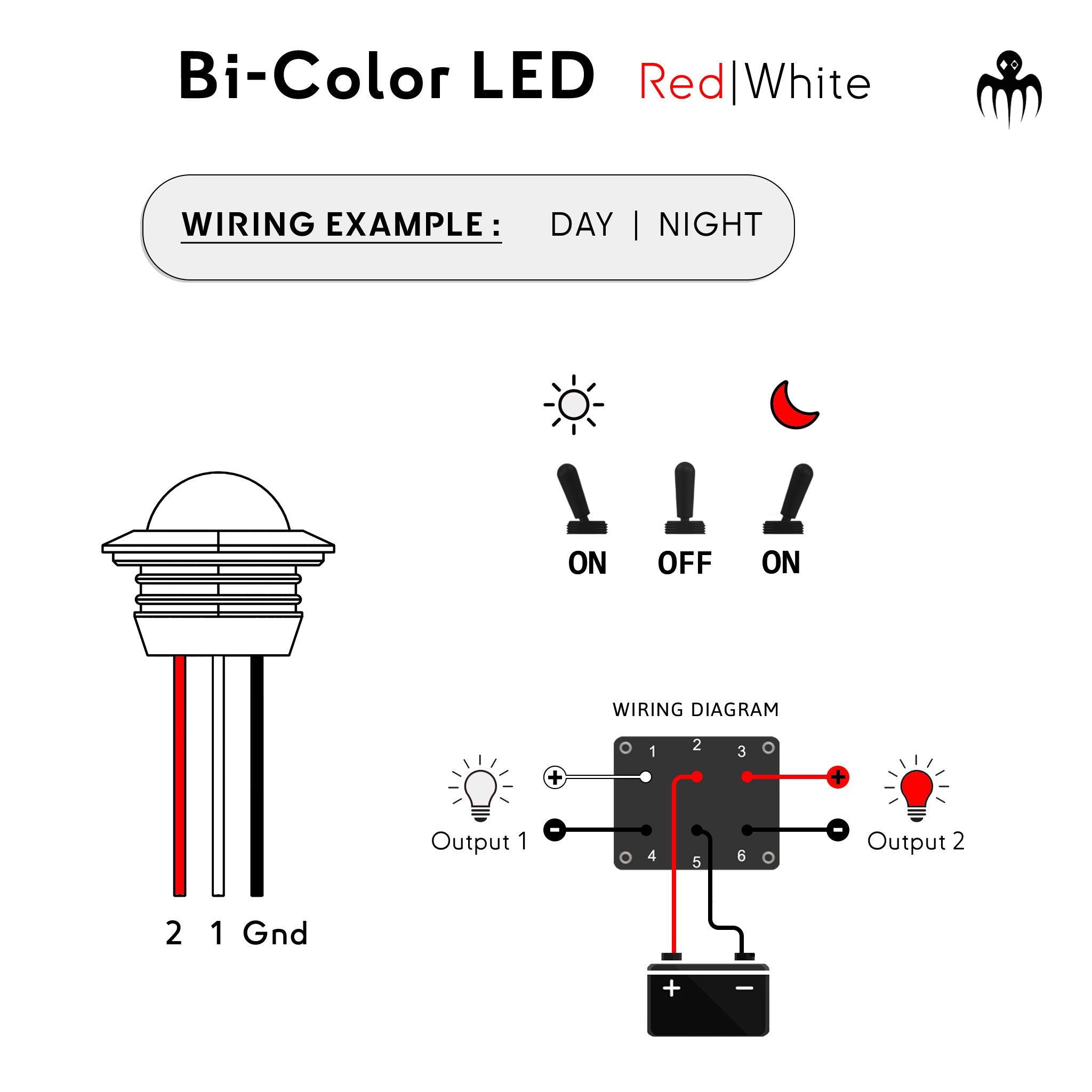

The courtesy light can be controlled using an ON–ON switch, an ON–OFF–ON switch, a relay or a direct positive signal.
- Red and white controlled separately: each color has its own positive wire.
- Common ground: both LED colors share the black negative connection.
- Flexible switching: choose the control method that best suits the boat's electrical installation.
Key Features
Dual-Color 2835 LED Selectable red and white illumination in one compact fitting.
12V & 24V Compatible Suitable for both common low-voltage electrical systems.
IP67 Waterproof Designed for indoor and outdoor marine installations.
Low Power Consumption 12V ≤ 0.24 W • 24V ≤ 0.48 W
Polycarbonate Lens Impact-resistant lens with diffused light output.
19 mm Installation Compact mounting format requiring a 19 mm drill hole.
The combination of dual-color illumination, low electrical consumption, IP67 protection and compact installation makes these lights suitable for a wide range of courtesy and safety lighting applications on board.
Dual-Color LED Courtesy Light Technical Specifications
- 12V / 24V
- 2835 Bi-Color LED
- Red / White
- ≤ 20 mA
- IP67
- 19 mm
| Parameter | Specification |
|---|---|
| Pack Quantity | 2 pcs |
| Shell | Silicone (durable & waterproof) |
| Lens | Polycarbonate (impact-resistant, diffused light) |
| LED Type | 2835 dual-color (Red & White) |
| Voltage | 12V / 24V (bivoltage) |
| Current | ≤ 20 mA |
| Power | 12V ≤ 0.24 W 24V ≤ 0.48 W |
| Insulation Resistance | 3000V / 10s |
| Lifespan | 10,000 h |
| Operating Temperature | -40 °C to +80 °C |
| Drill Hole | 19 mm |
Installation reminder: each light requires a 19 mm drill hole and uses three connections: red LED positive, white LED positive and common black ground.
How to use :
Link to the blog
Discover tips, tricks, and detailed instructions on using our product in our dedicated blog post. Learn about setup, operation, and optimization to get the most out of your purchase.
Link to the blog
