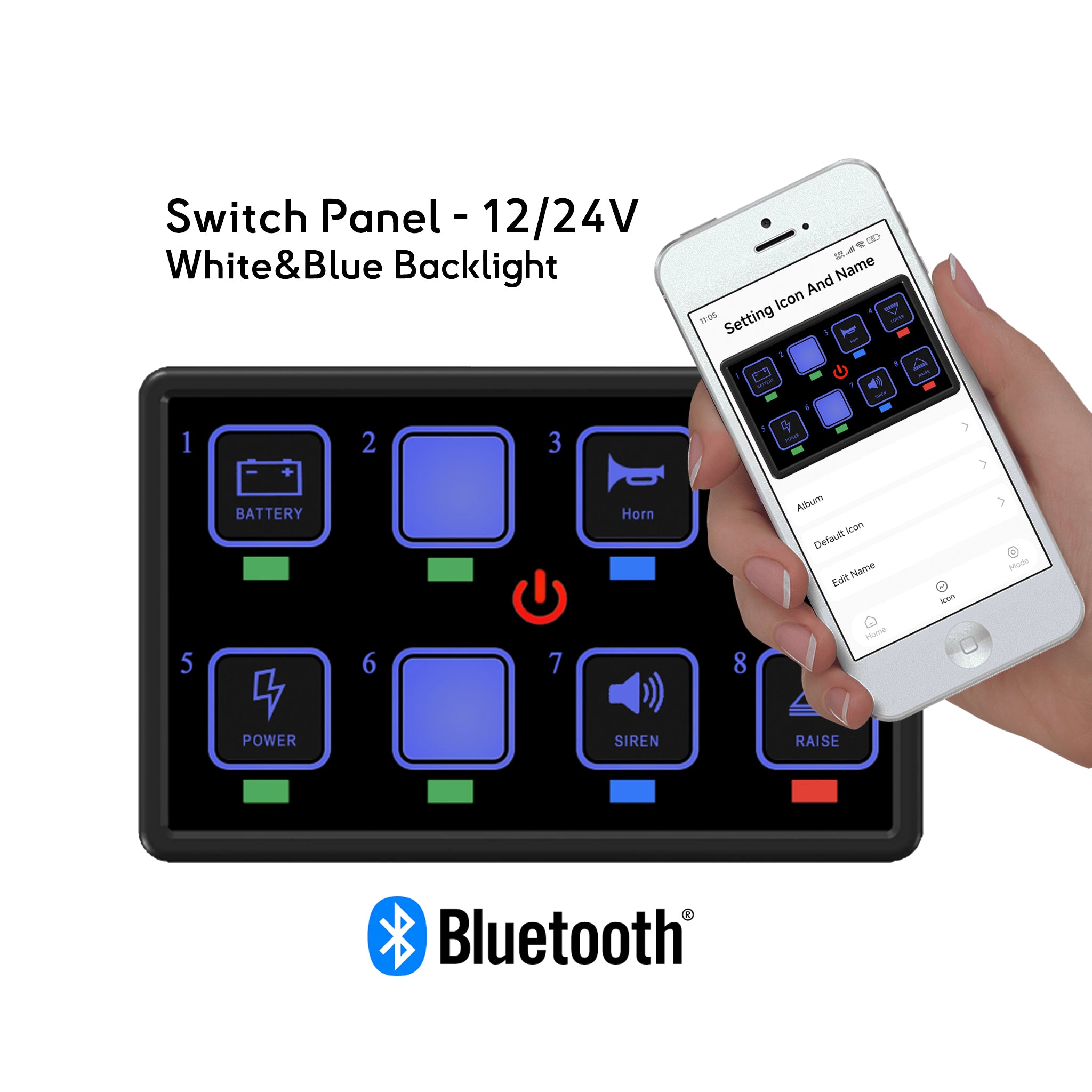

Modernise your boat’s electrical controls with a compact 12V / 24V marine switch panel. Operate eight circuits directly from the touch panel or via Bluetooth from an Apple or Android smartphone or tablet, or a Windows PC or tablet: a practical solution for cabin lighting, navigation lights, pumps, fans and onboard accessories.
20 A per output at 12 V or 10 A at 24 V. Control your lights, pumps, fans and onboard accessories.

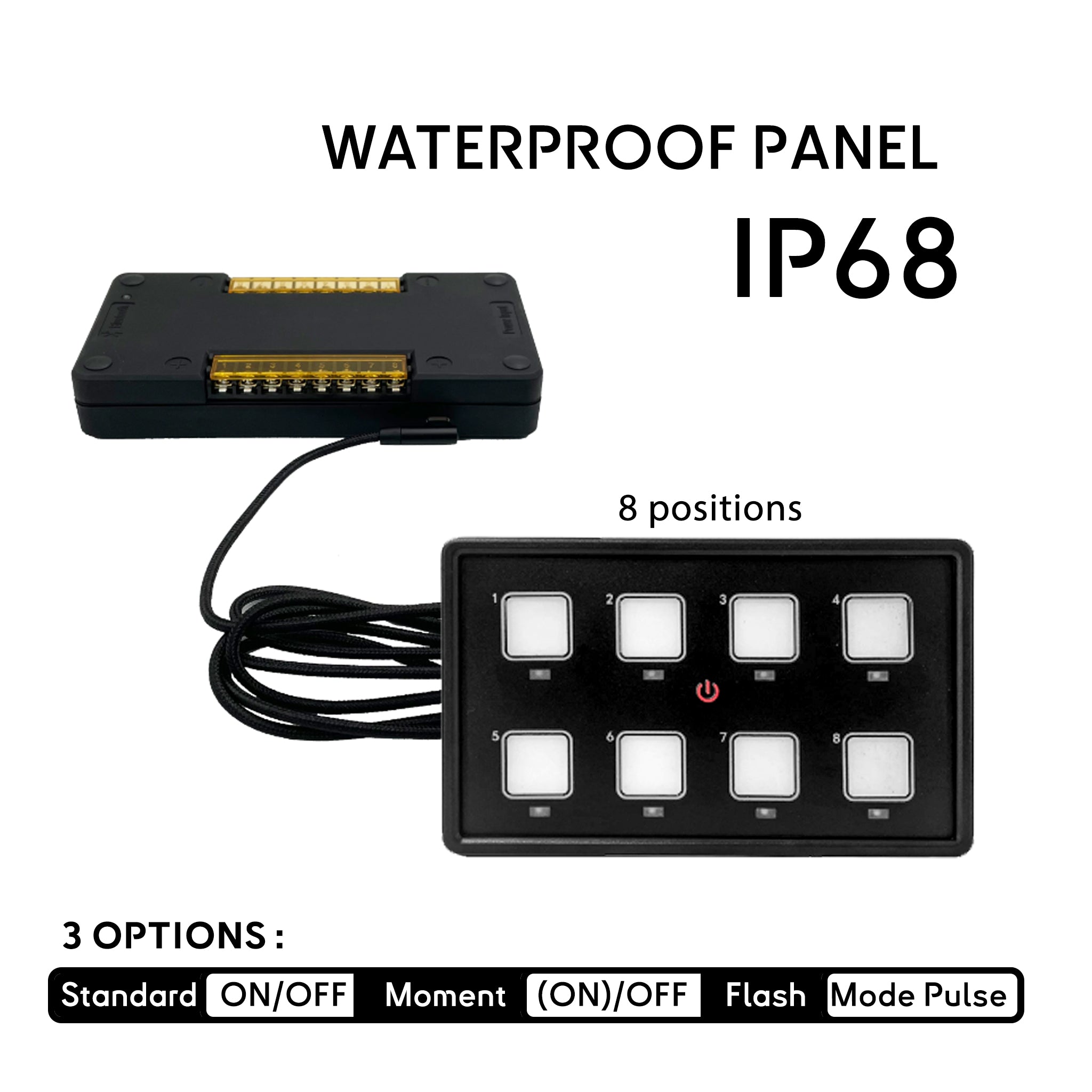

A slim waterproof front for a modern helm station, with a separate wiring block to keep installation organised.
Identify circuit status at a glance, with soft backlighting to limit glare during night navigation.
iPhone & iPad
Control your panel over Bluetooth from your Apple smartphone or tablet.
Download on the App StoreUpdated version coming soon.
Android phones & tablets
Personalise your controls with your own labels, pictograms or photos. 41 languages, dark mode, voltage monitoring and low-voltage alarm.
Download on Google PlayWindows PCs & tablets
Control your panel over Bluetooth from your Windows PC or tablet with Baywatt System, now available on the Microsoft Store.
Download on the Microsoft StoreKeep physical controls at the helm and access your circuits from a smartphone, tablet or Windows PC over Bluetooth.
With Baywatt System: latching ON/OFF, momentary and pulse modes according to the supported configuration. Up to two compatible panels, providing access to 16 circuits. No account or subscription; no internet connection required for normal operation.
Soft white / blue panel illumination keeps the helm comfortable. Baywatt System’s dark mode reduces screen brightness.
View the supply voltage in Baywatt System and use the low-voltage alarm to help identify when the battery voltage drops. Monitoring through the app requires a Bluetooth connection to the powered module; it does not replace a battery monitor or battery protection system.

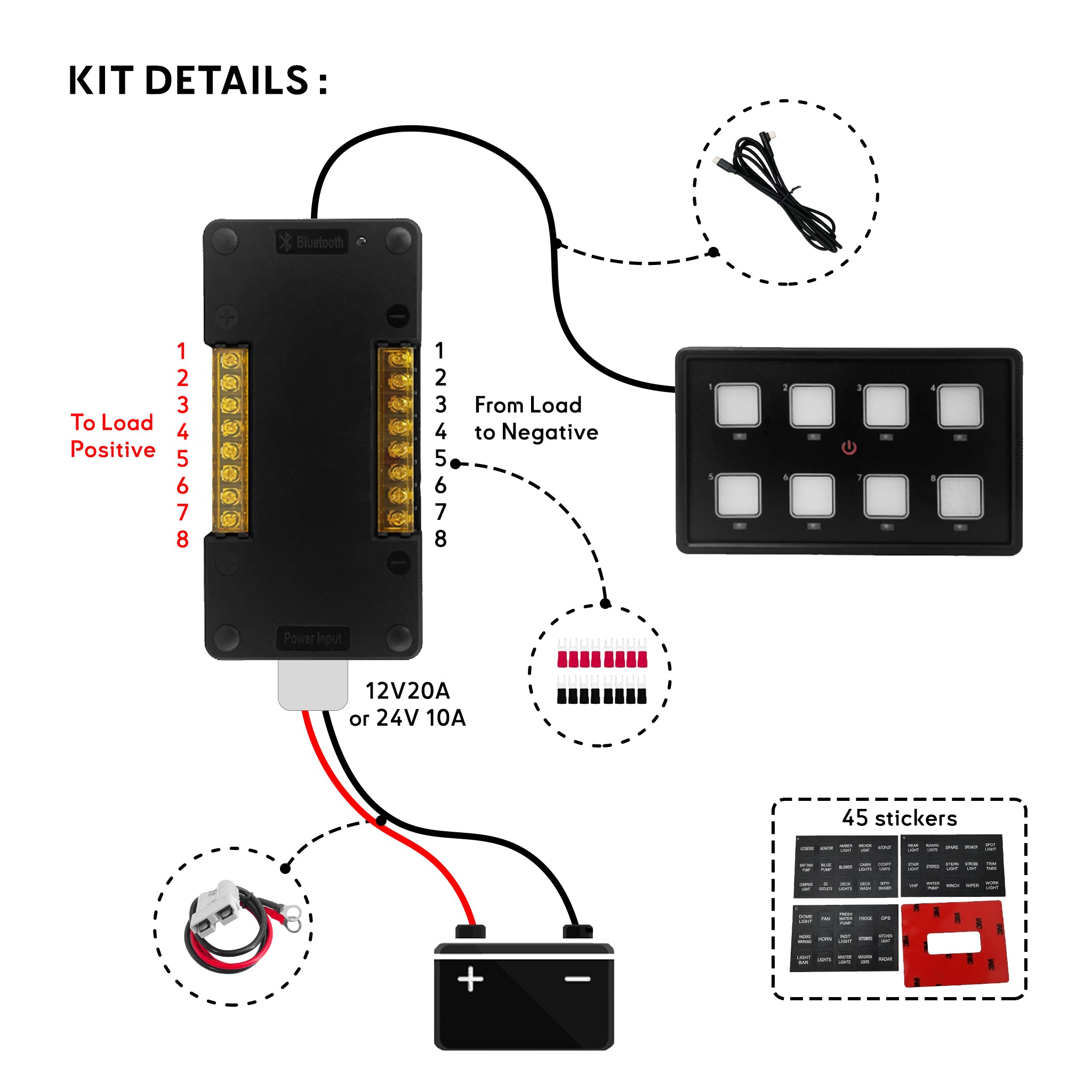

Fit the slim touch panel where you need it and connect your circuits at the separate wiring block. The kit includes a 50 cm 10 AWG power cable with an Anderson 50 A connector, 45 identification labels, mounting screws and 3M adhesive. The touch panel measures 80 × 130 mm and the wiring block 180 × 90 mm.
Use the panel output to energise a relay coil and supply the load through a separate, correctly fused battery circuit. For 12 V installations, choose our 40 A IP67 waterproof relay with diode or 50 A IP67 waterproof relay with diode. Select the relay and wiring for the load’s running current and starting surge.
The integrated flyback diode suppresses the voltage spike generated when the relay coil switches off, helping protect the panel’s electronic output. Observe the relay’s marked coil polarity. These linked relays have 12 V coils; a 24 V installation requires a relay with a suitable 24 V coil. The external load current does not pass through the panel.
Click an icon to open its file and use it in Baywatt System.
| Reference | BAYWATT BSC1260 |
|---|---|
| Number of circuits | 8 independently controlled outputs |
| Supply voltage | 12 V / 24 V DC |
| Switch rating per output at 12 V | 20 A maximum |
| Switch rating per output at 24 V | 10 A maximum |
| Maximum total current | 60 A across all outputs combined; subject to the rating of the installed supply components |
| Supplied power cable | 50 cm – 10 AWG (approximately 5.3 mm²) |
| Power connector | Anderson 50 A; keep current through the supplied connector within its 50 A rating |
| Touch panel ingress protection | IP68 |
| Panel backlight | White at rest / blue when the corresponding circuit is activated |
| Wireless control | Local Bluetooth connection to compatible BAYWATT hardware |
| Android application | Baywatt System – available on Google Play |
| Baywatt System features (Android) | 41 languages, dark mode, custom labels and icons, voltage monitoring and low-voltage alarm |
| Control modes | Latching ON/OFF, momentary and pulse |
| Circuit protection | Resettable PPTC protection |
| Touch panel dimensions | 80 × 130 mm |
| Wiring block dimensions | 180 × 90 mm |
| Included | 1 touch panel with connection cable, 1 wiring block with 50 cm 10 AWG power cable and Anderson 50 A connector, 45 labels, 4 screws and 3M adhesive |
| Apple application | Tech-Panel – iPhone / iPad |
| Windows application | Baywatt System – available on the Microsoft Store; Bluetooth connection required |
Supply sizing: the panel’s 60 A total rating does not increase the supplied Anderson connector’s 50 A rating. Size the fuse, cable and all connections for the actual load and the lowest-rated component in the supply path. The IP68 rating applies to the touch panel; protect the wiring block and connections appropriately.
