A reliable 12V marine switch panel should be simple, robust and easy to service. BAYWATT toggle switch panels are designed around that principle, using proven polycarbonate marine toggle switches, individual thermal circuit breakers and a fully pre-wired panel architecture.
This is a classic marine electrical panel design intended for sailboats, motorboats and yachts where reliability matters more than unnecessary electronics. The toggle switches provide a positive mechanical action, excellent durability and no distracting glare at the helm.
Particularly well suited to boats from approximately 7 to 16 metres / 23 to 52 ft, the compact wave-shaped panel integrates naturally into both traditional and modern dashboards. One panel can be installed on its own, or two panels can be mounted together vertically or horizontally while maintaining a coherent layout.
Designed for straightforward boat refits and new installations. The switches, thermal circuit breakers and internal wiring are already assembled, reducing installation time and the number of separate components required behind the dashboard.
Each switch circuit is already paired with an individual DC thermal circuit breaker. The breakers are mounted directly on the panel and pre-wired to their corresponding switches.
This eliminates the need for a separate branch fuse block for these individual circuits and simplifies both wiring and troubleshooting. Each panel includes a combination of 5A, 10A and 15A breaker ratings according to the panel configuration.
Electrical installation note: the panel provides branch-circuit protection through its individual thermal breakers. The main supply cable feeding the panel must still be correctly sized and protected according to the total connected load and the vessel's electrical installation.
A mounting gasket is supplied to seal the panel against the dashboard, while the individual thermal circuit breakers are protected by rubber boots. Together, these features make the panel well suited to cockpits, exterior helm stations and other locations regularly exposed to spray, rain and wash-down water.
The panel itself is designed to tolerate normal boat washing and spray. Direct high-pressure washing is nevertheless not recommended, particularly over the adhesive function labels, which may be damaged or lifted by a concentrated pressure-washer jet.
The curved wave profile was designed so the panel remains visually balanced whether installed vertically or horizontally. This also makes it easy to expand a dashboard later.

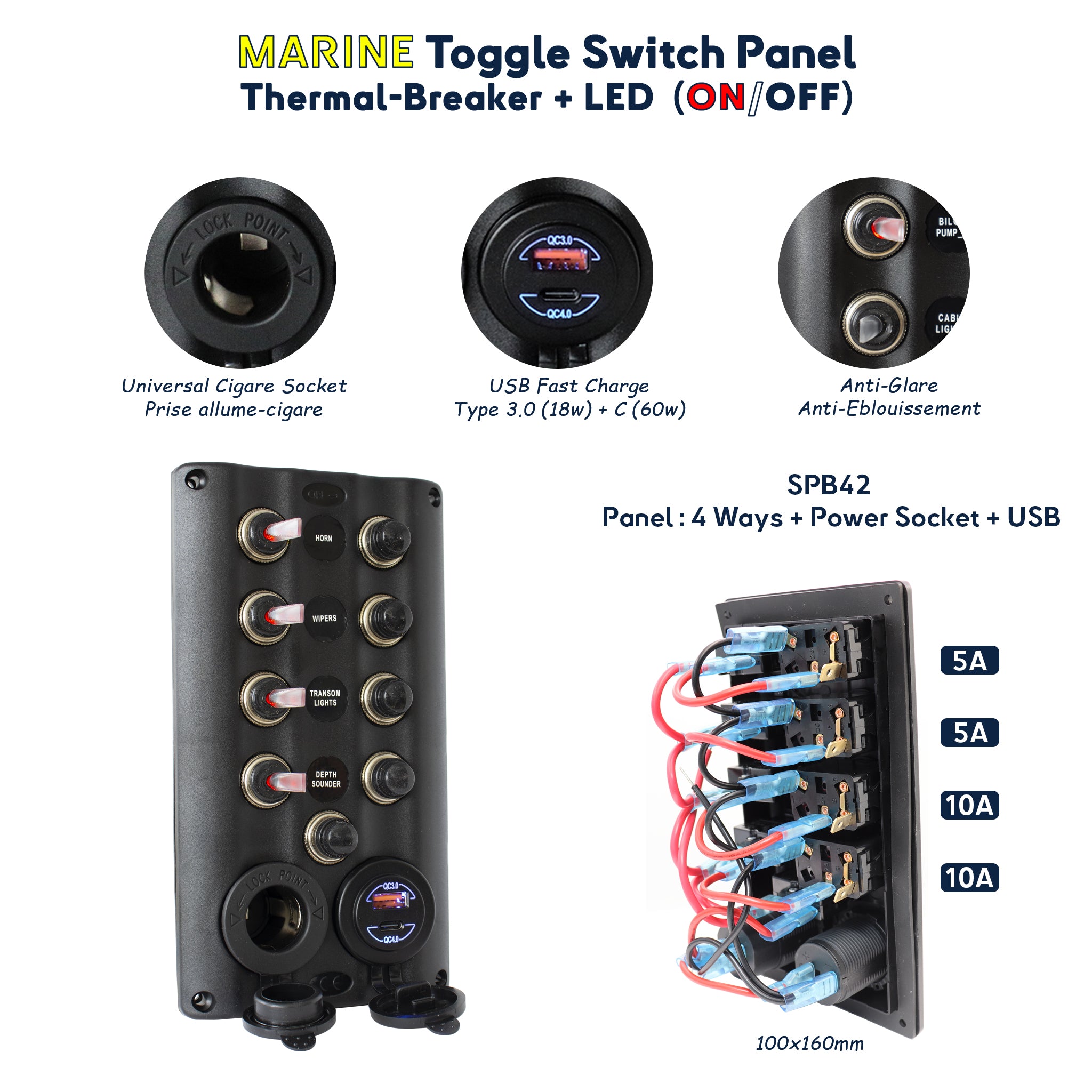

The SPB42 version adds onboard charging without replacing the marine-grade philosophy of the panel. Instead of using a basic low-power USB socket, it is equipped with a 60W high-power USB charger designed for demanding onboard use.
The higher charging capacity makes it suitable for modern phones, tablets and compatible USB-C equipment, while the protected construction is better suited to marine installations than basic automotive USB modules.
SPB42: combines four protected switch circuits, a 12V power socket and high-power USB charging up to 60W in one compact panel.
A straightforward solution for smaller switch groups, auxiliary panels and boat refit projects.
Best suited to dashboards where protected electrical control and high-power device charging are required in the same panel.
A practical choice for sailboats and motorboats requiring additional circuits while retaining a compact, unified panel.
| Reference | Switches | Power / USB | Circuit Breakers | Panel Size | Material | Protection |
|---|---|---|---|---|---|---|

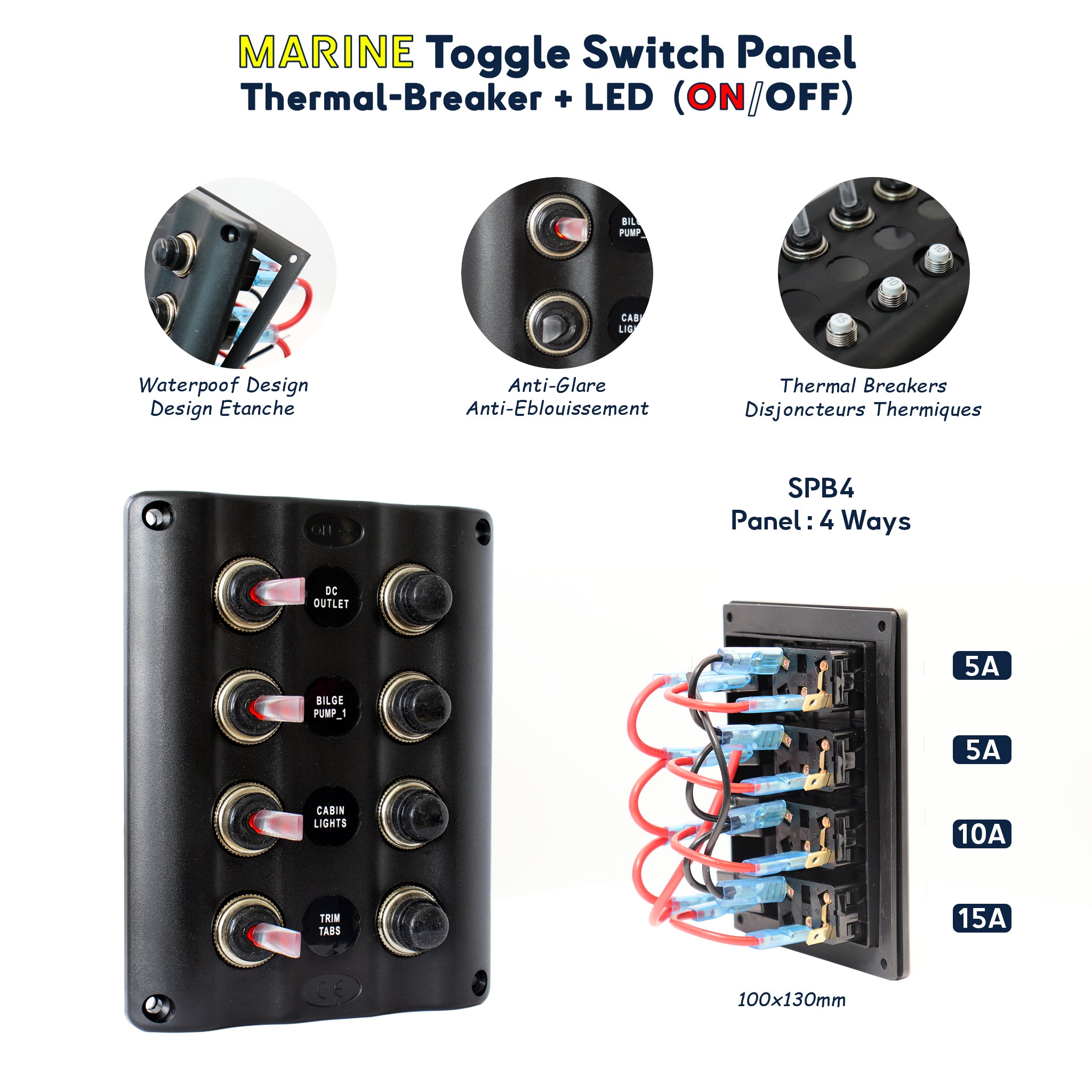

| SPB4 | 4 × ON/OFF 12V DC |
— | 2 × 5A 1 × 10A 1 × 15A |
100 × 110 mm Back depth: 13.84 mm |
ABS | CE / IP65 |
| SPB42 | 4 × ON/OFF 12V DC |
12V socket 60W USB charger |
2 × 5A 2 × 10A 1 × 3A |
100 × 130 mm Back depth: 13.84 mm |
ABS | CE / IP65 |

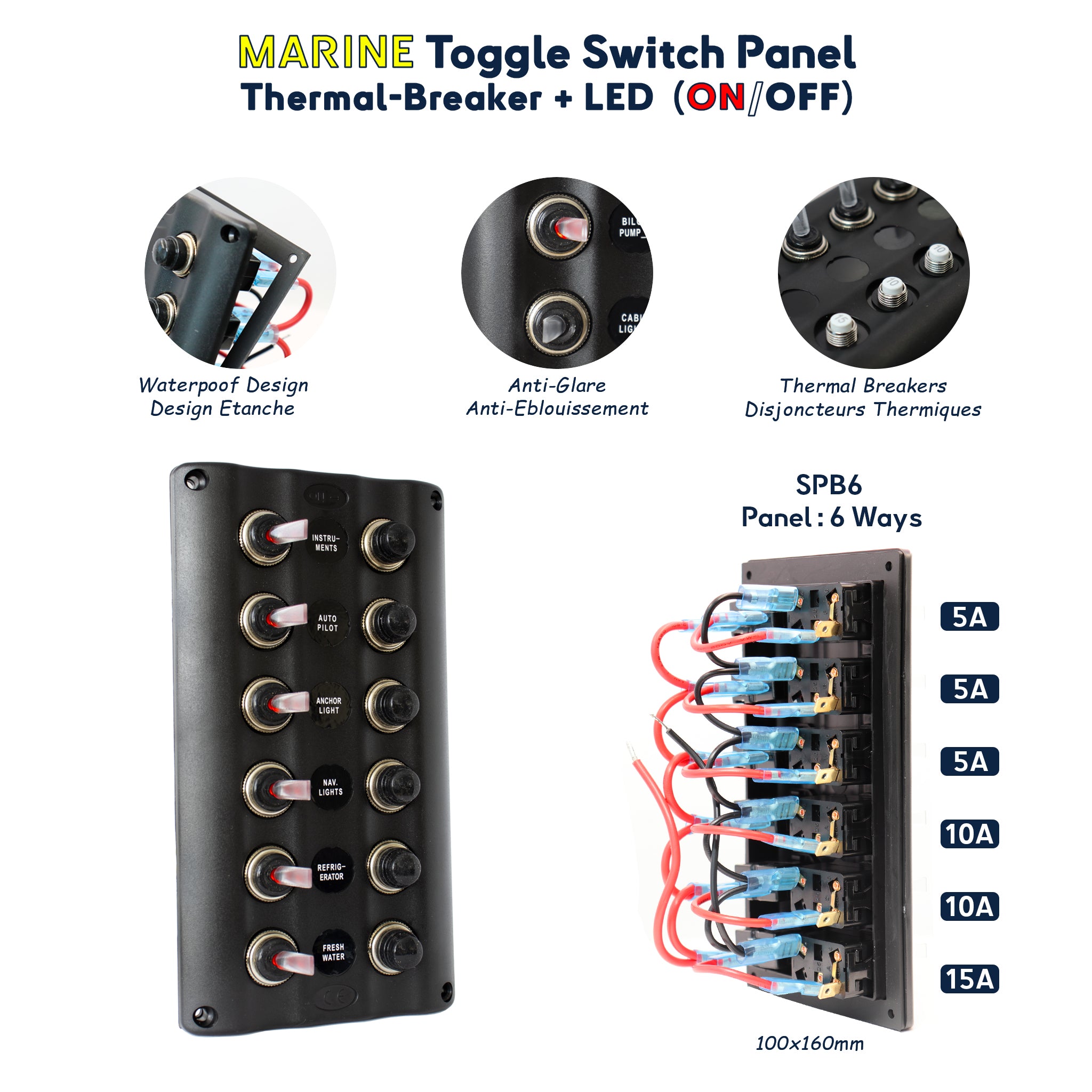

| SPB6 | 6 × ON/OFF 12V DC |
— | 3 × 5A 2 × 10A 1 × 15A |
100 × 130 mm Back depth: 13.84 mm |
ABS | CE / IP65 |

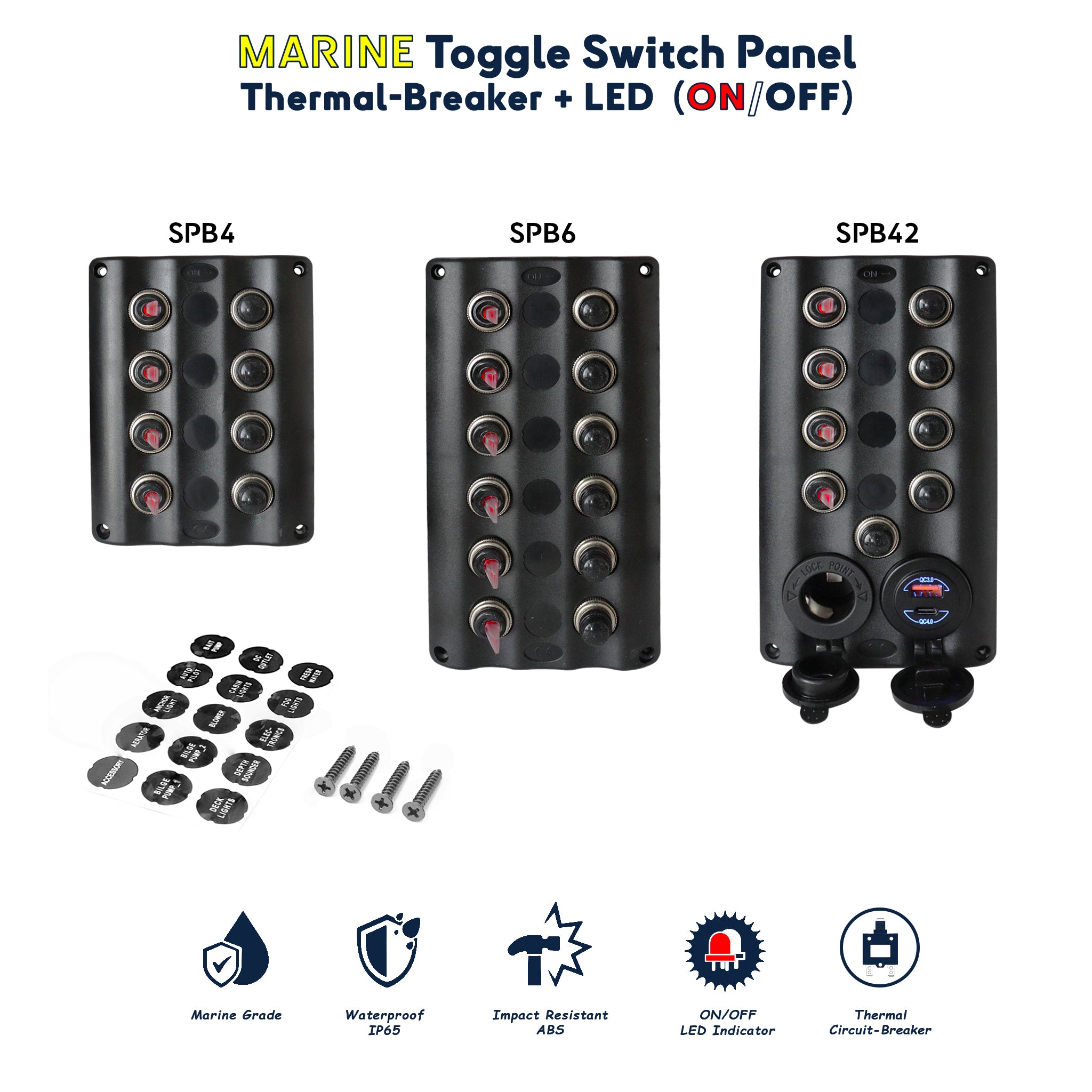

Each panel is supplied with a mounting gasket, four installation screws and approximately 40 function labels covering the most common onboard electrical equipment.
For boat owners carrying out a dashboard renovation, this provides a practical route from an older mixed switch-and-fuse layout to a clean, reliable and easy-to-understand 12V marine electrical switch panel.
Looking for a different switching style? See our dual-color LED marine rocker switch panels .
